5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric — set of 4

5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric

Set of 4
5mm
$28.95
Skip to product information
5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric — set of 4

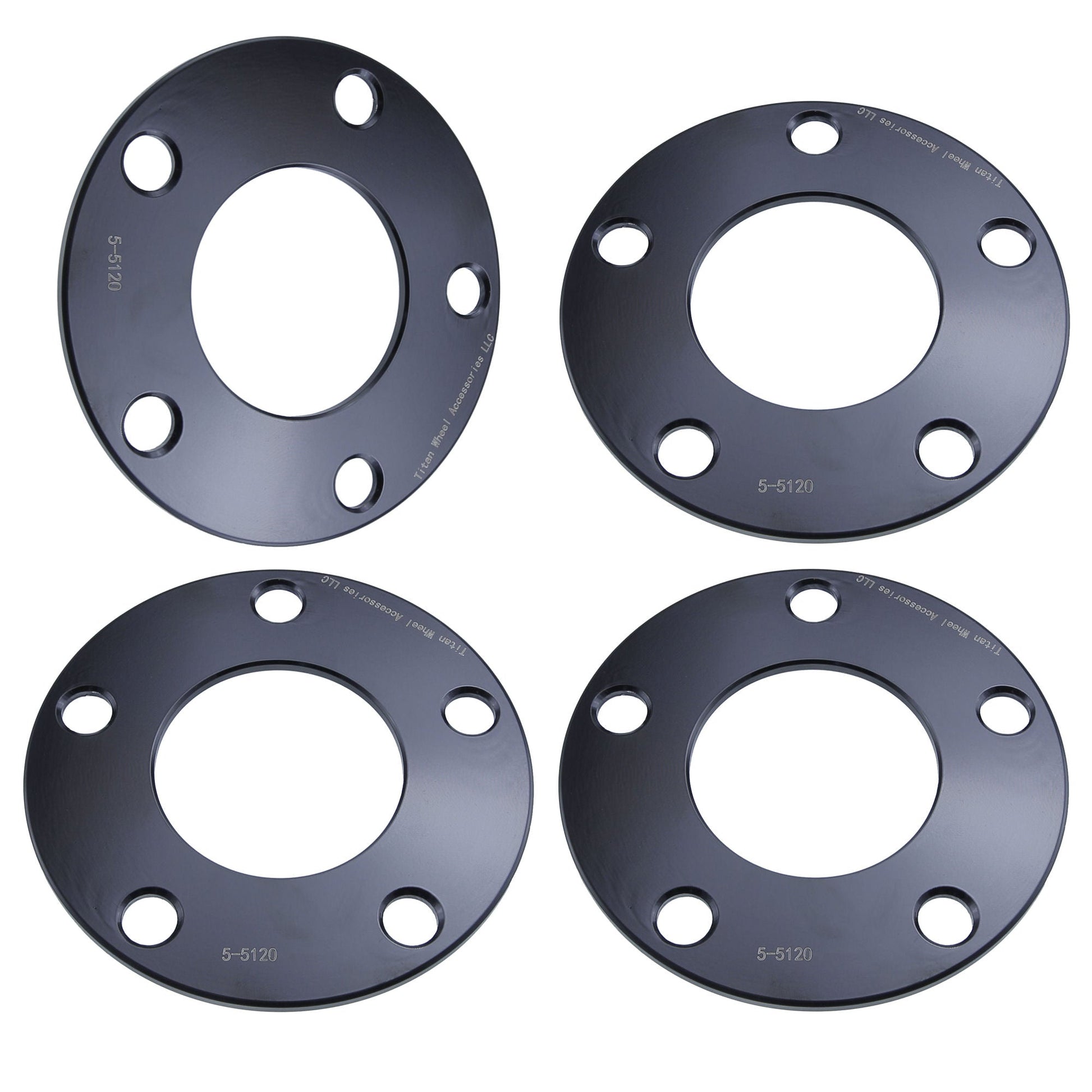

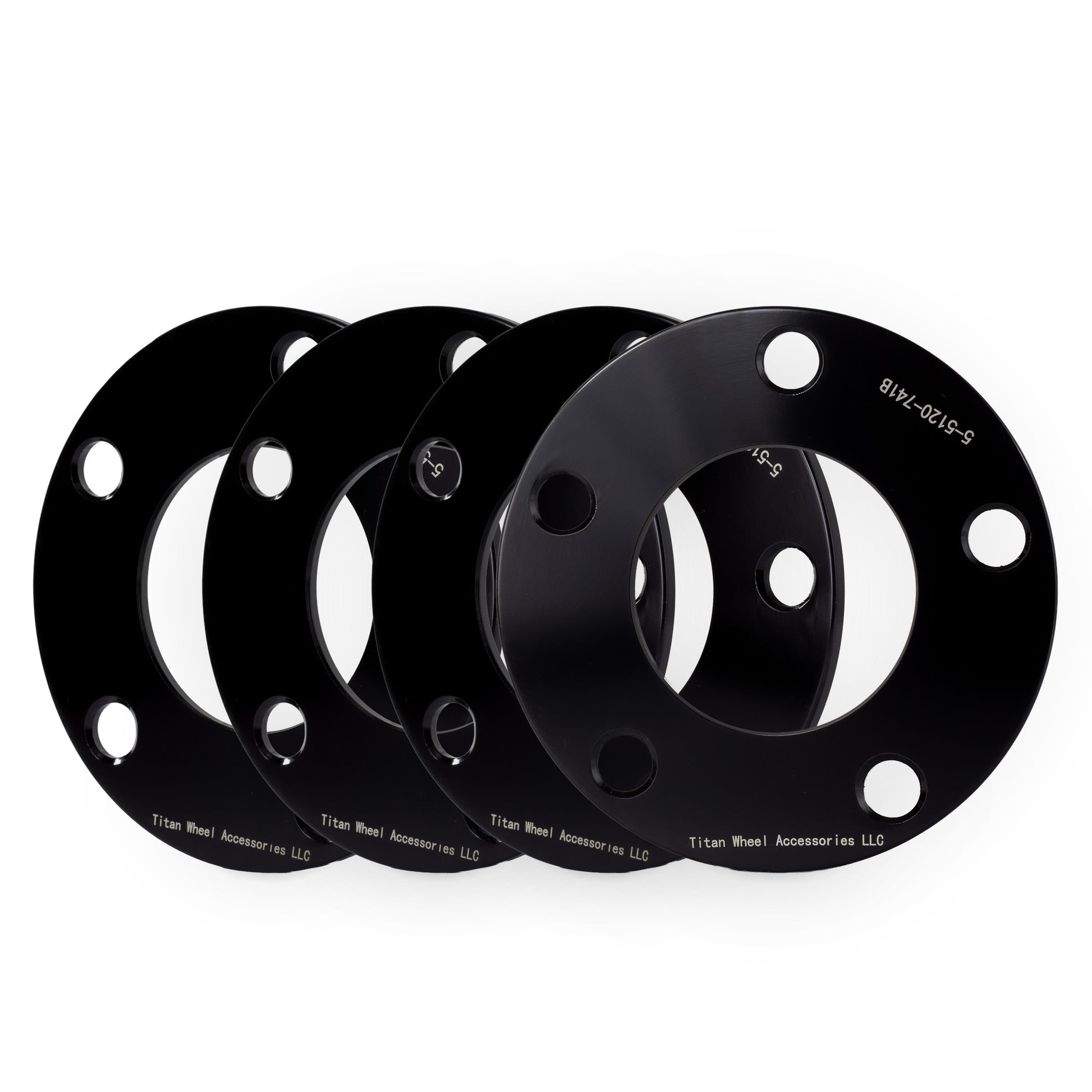

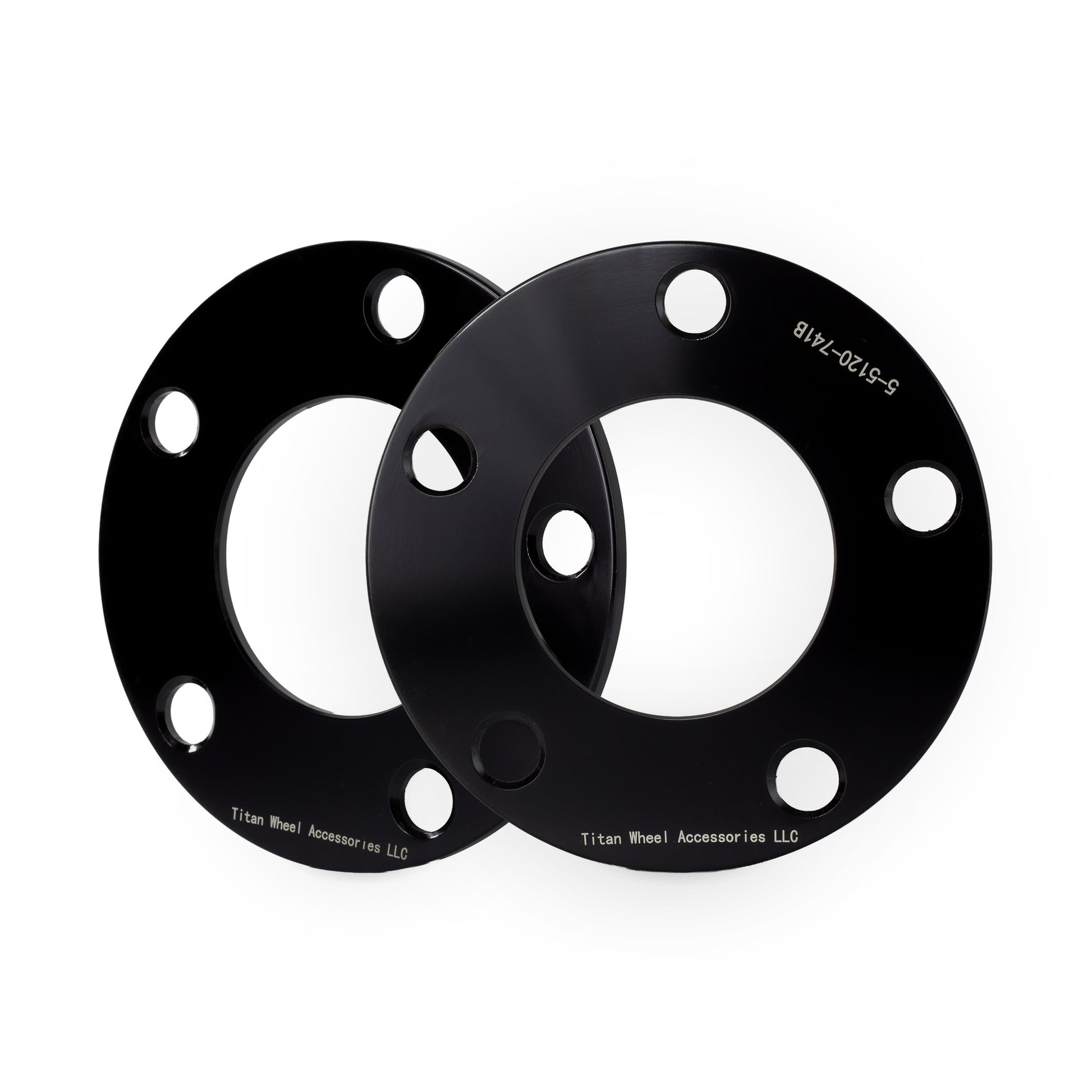

  • 5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric — set of 4

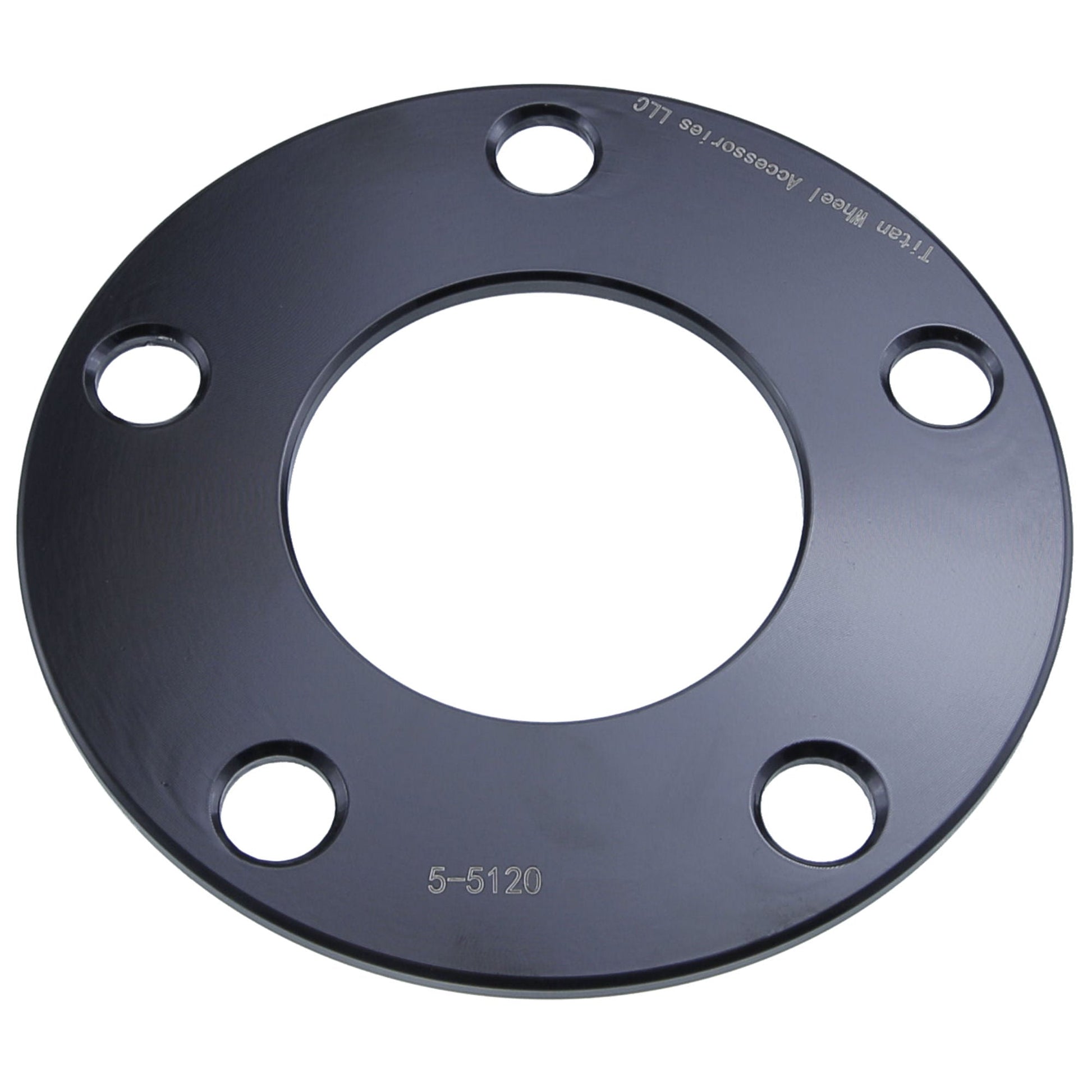

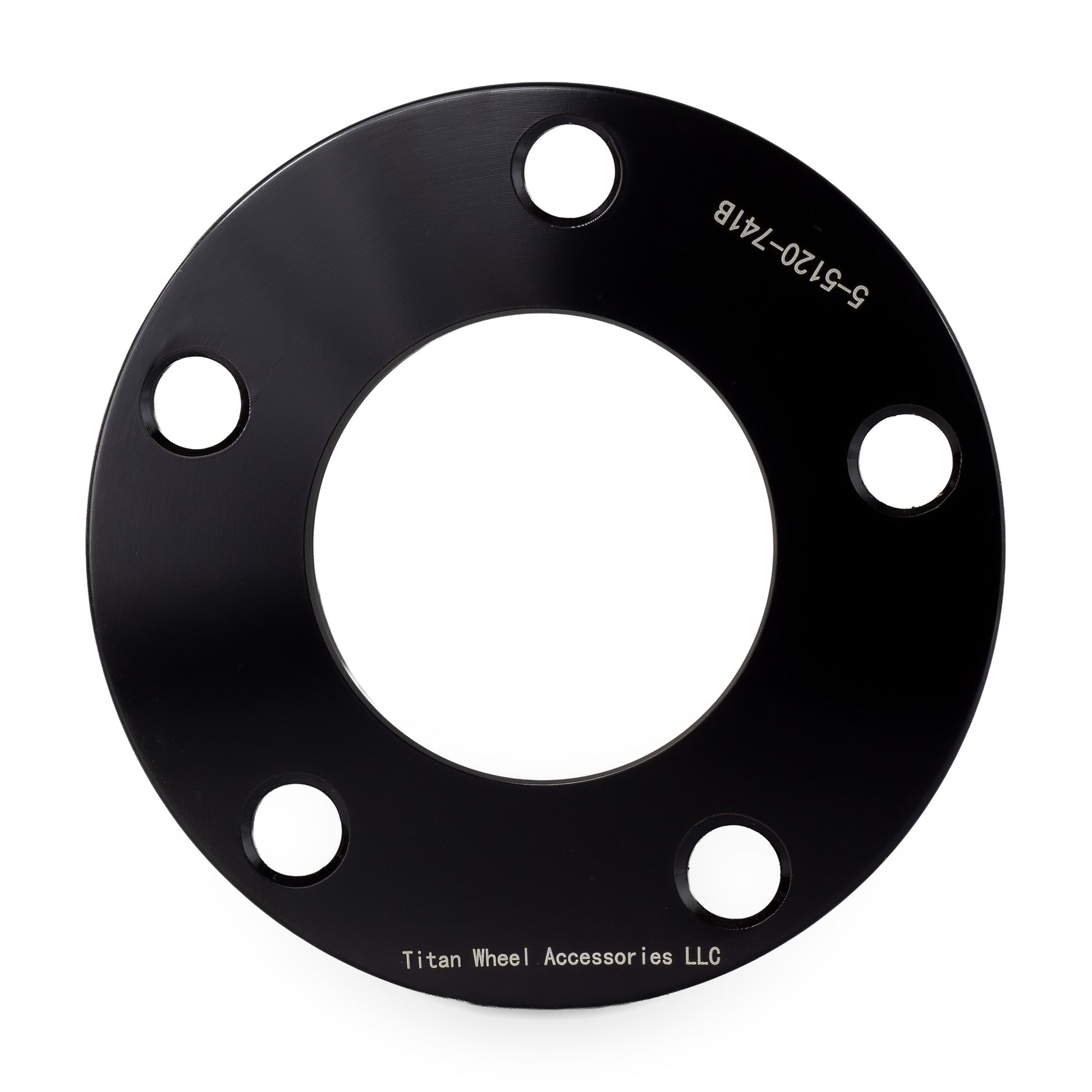

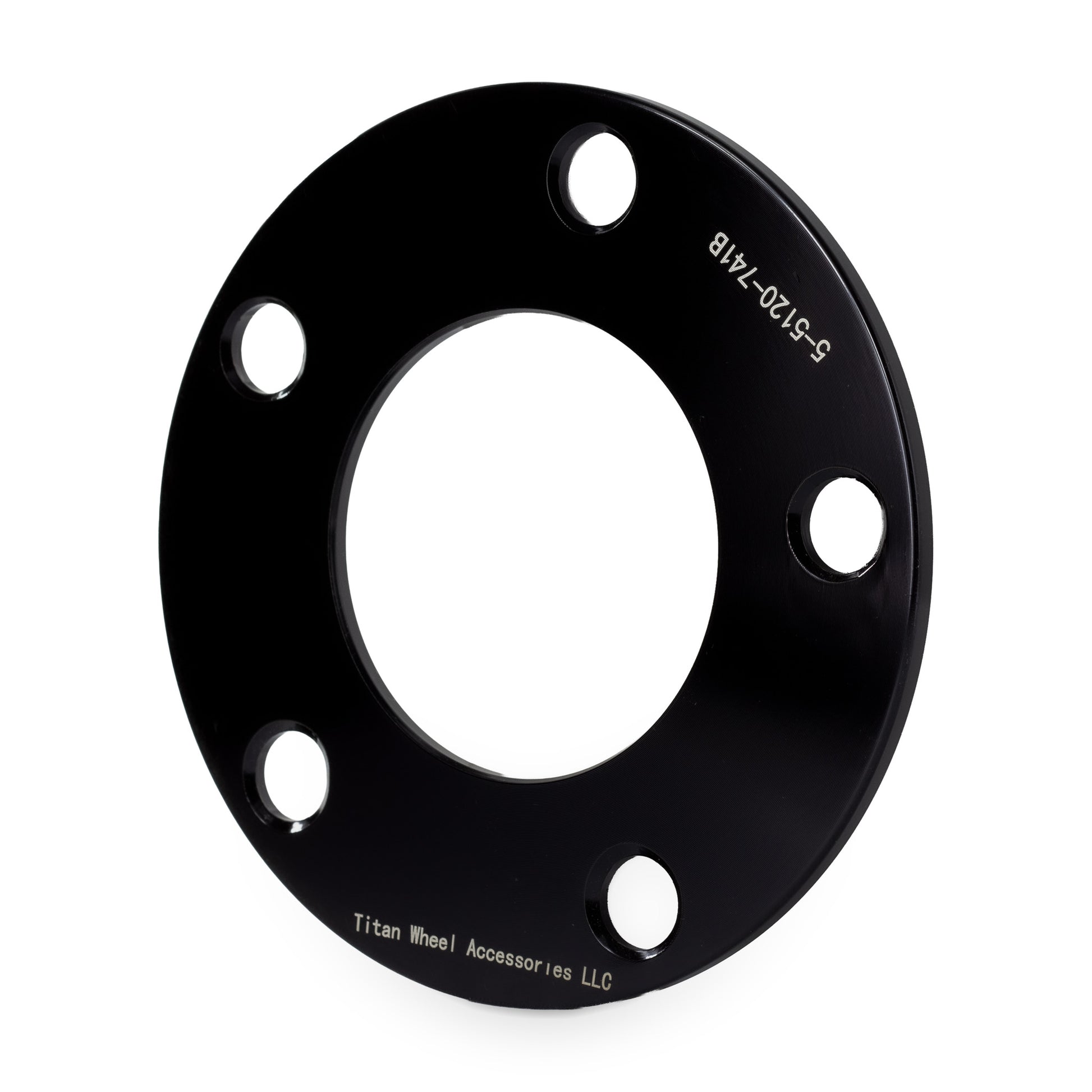

  • 5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric — front view

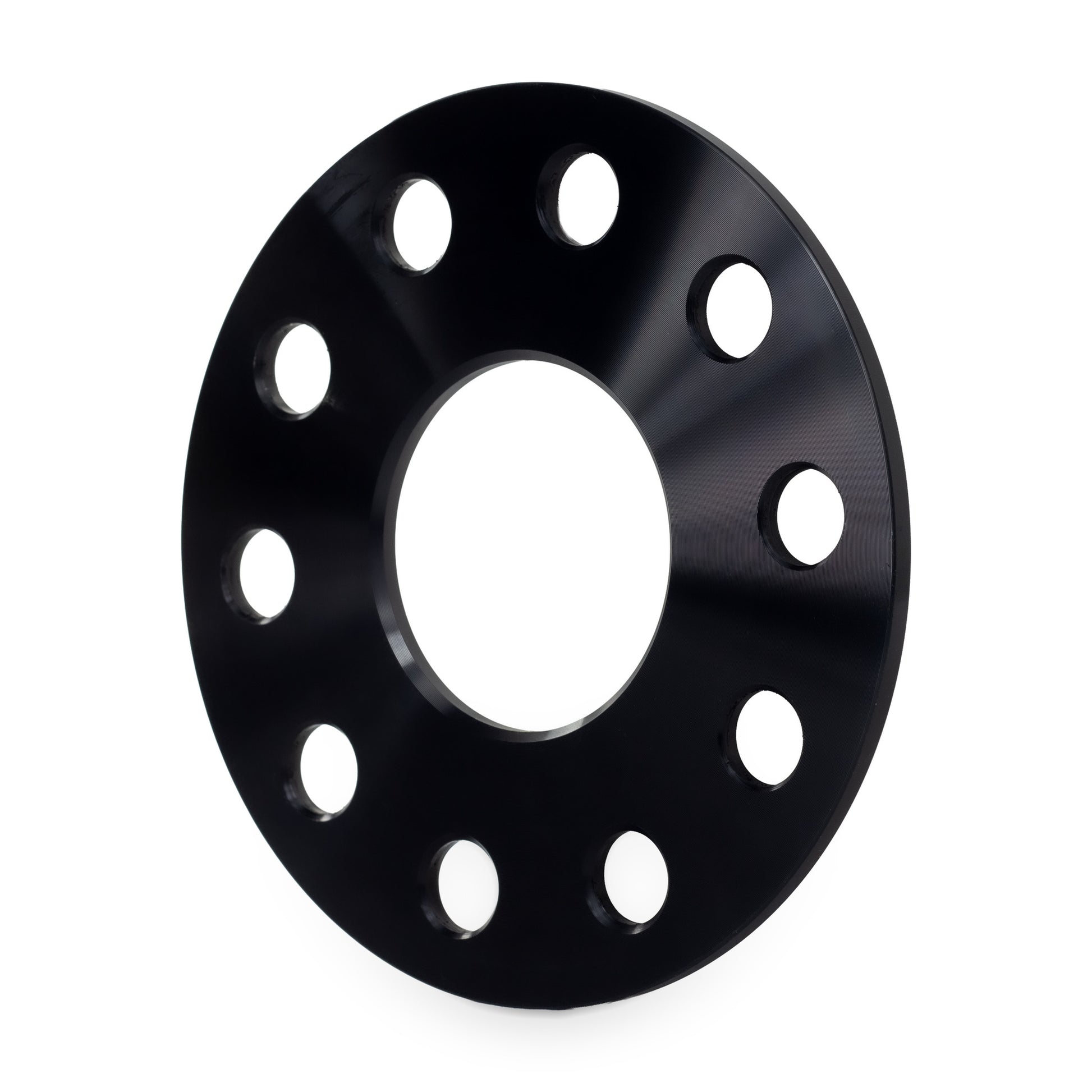

  • 5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric — rear three-quarter view

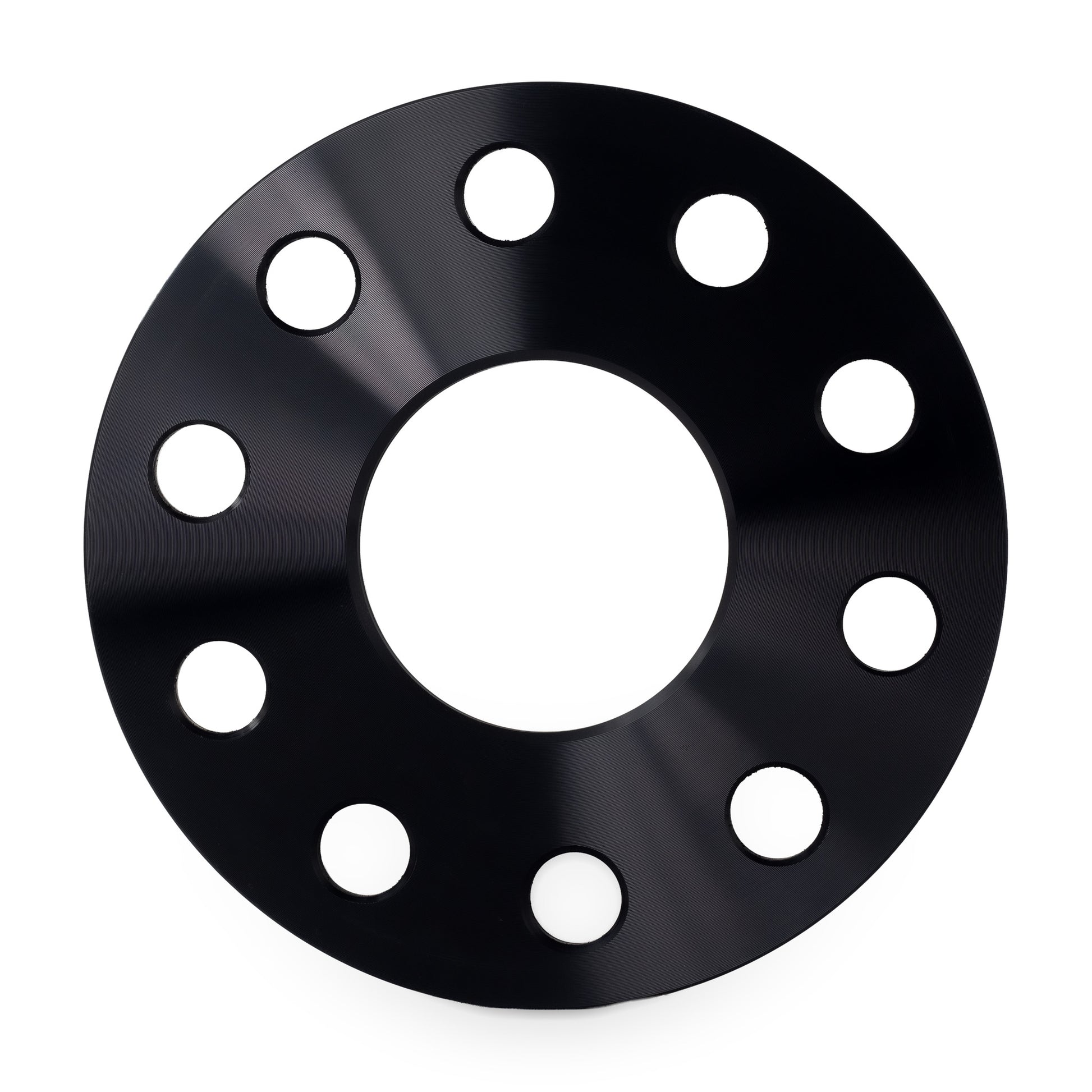

  • 5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric — rear view
  • 5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric — set of 4
  • 5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric — front view
  • 5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric — rear three-quarter view
  • 5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric — rear view
5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric
TITAN WHEEL ACCESSORIES SKU 5-5120-741-A1-4

5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric

Fits bolt pattern: 5x120

In Stock
$28.95

$7.23 each · set of 4

Flat $18.95 shipping anywhere in the US

  • 5mm
  • 5×120
  • Hubcentric
  • Slip-on
Size
Quantity
  • 30-day returns
  • Lifetime warranty

OVERVIEW

BUILT FOR THE PLATFORM

These Titan Wheel Accessories 5mm hubcentric wheel spacers are designed with a 5x120 bolt pattern and 74.1mm hub bore for BMW E39 5 Series 525i, 528i, 530i, 540i, X5, X6. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These spacers will improve the stance of your vehicle, providing a more aggressive look while also adding additional clearance for aftermarket brake and suspension parts. They also allow for larger wheel and tire combinations to be installed, giving you more options for customization.

  • 5mm
  • 5×120
  • Hubcentric
  • Slip-on

HUBCENTRIC VS. LUGCENTRIC

Hubcentric

The spacer's center bore matches your hub, so the wheel is centered on the hub instead of by the lug nuts. That precise centering helps prevent the vibration an off-center wheel causes.

Lugcentric

The lug nuts themselves center the wheel. Common on universal-fit spacers; properly torqued lug nuts keep the wheel true.

This product is hubcentric.

THE NUMBERS

FULL SPEC SHEET

TypeWheel Spacers
Bolt Pattern 5x120
Hub Bore74.1mm
Thickness5mm
CenteringHubcentric
Install TypeSlip-on
FinishBlack
Hardware Included No
Net Weight 2.0 lb

IN THE BOX

WHAT'S IN THE BOX

  • 4× 5mm Wheel Spacers for BMW 5 Series 525i 528i 530i 540i X5 X6 | 5x4.75 (5x120) | 74.1 Hubcentric
  • — No lug nuts included — slip-ons reuse your vehicle's factory studs or bolts
  • — Extended studs or bolts are usually needed to keep full thread engagement, and aren't included. Shop extended lug bolts

FROM THE GARAGE

WHAT DRIVERS SAY

Customer Reviews

Based on 10 reviews
80%
(8)
0%
(0)
20%
(2)
0%
(0)
0%
(0)
P
Pierre Melzer
Previously used

I received this product and it was obvious that these adapters had been previously installed on another vehicle as seen in the photos. It doesn’t affect the effectiveness of the product. It just disappoints me that there should have been new.
Someone dropped one of the adapters and I had to grind a raised bump from the fall. See pictures. It would have given me a wobble if I hadn’t removed the raised bump. Unable to load photos

D
Douglas Hamilton
Almost!

These spacers fit snugly over the centerbore which is good! But the fact they lack machined pockets on the hub side to ease removal is not so good.

I
Izac Marez
Excellent

Fit perfect and are still holding strong

C
Cesar

Really good product

J
Joel Occilien

25mm (1") Titan 4x114.3 to 4x100 Wheel Adapters | 12x1.5 Studs |

12

THE GRID

SEEN ON REAL BUILDS

ANSWERS

QUESTIONS, ANSWERED

The questions drivers ask most about this product — answered up front.

SEE ALL FAQ
Will these fit my exact vehicle?
Check the spec sheet above for bolt pattern and hub bore, or use the fitment finder to confirm against your year, make and model.
Do I need an alignment after installing?
No alignment change is required for the spacer itself, though we recommend a routine check if you're also changing offset or ride height.
What torque should I use?
See the Installation section above for the torque spec sheet included with this product — never exceed 110 ft-lbs.

INSTALLATION

Slip-On Wheel Spacers

Before you install

Slip-on spacers almost always require extended wheel studs or lug bolts to be installed safely. Confirm you can achieve the minimum number of turns on every lug nut or bolt before driving — the thread engagement table is in the full guide.

Full installation guide

Torque Specs

All lug nuts/lug bolts used to install wheel spacers must be torqued by hand using a torque wrench. The use of power tools can cause them to be over-torqued or can cause damage to the spacers and studs.

  • Lug nuts or lug bolts securing wheel through spacer: vehicle manufacturer's spec, not to exceed 110 ft-lbs.

If the vehicle manufacturer's torque specification is under 110 ft-lbs, follow that specification.

Re-Torque Schedule

  • After driving with the new spacers for 25 miles, check the torque on all lug nuts/lug bolts again.
  • It is always a good idea to check torque on all lug nuts/lug bolts periodically after installation, and immediately if a new vibration is noticed.

Note: Unlike bolt-on spacers and adapters, slip-on spacers do not have separate hub-side fasteners, so the wheels do not need to be removed during re-torque — re-torquing the wheel lugs directly checks the spacer assembly.

Never exceed 110 ft-lbs — use the OEM spec if it's lower.

Failure to correctly install the product may result in the loss of wheel(s) while driving. Proper installation is to be performed by a trained technician with sufficient knowledge of these products. Titan Wheel Accessories products are intended for off-road or competition use only.
