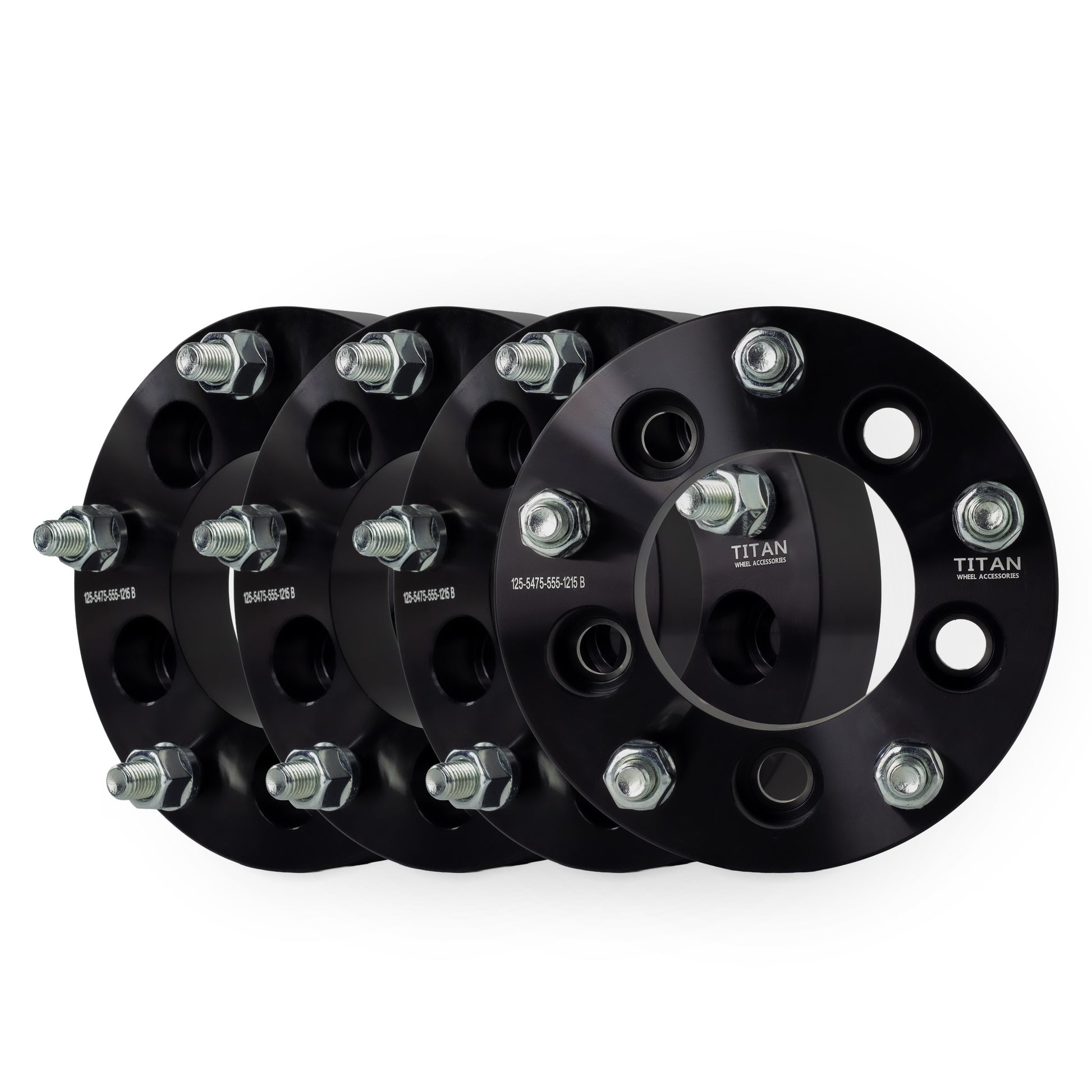

  • 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs — set of 4

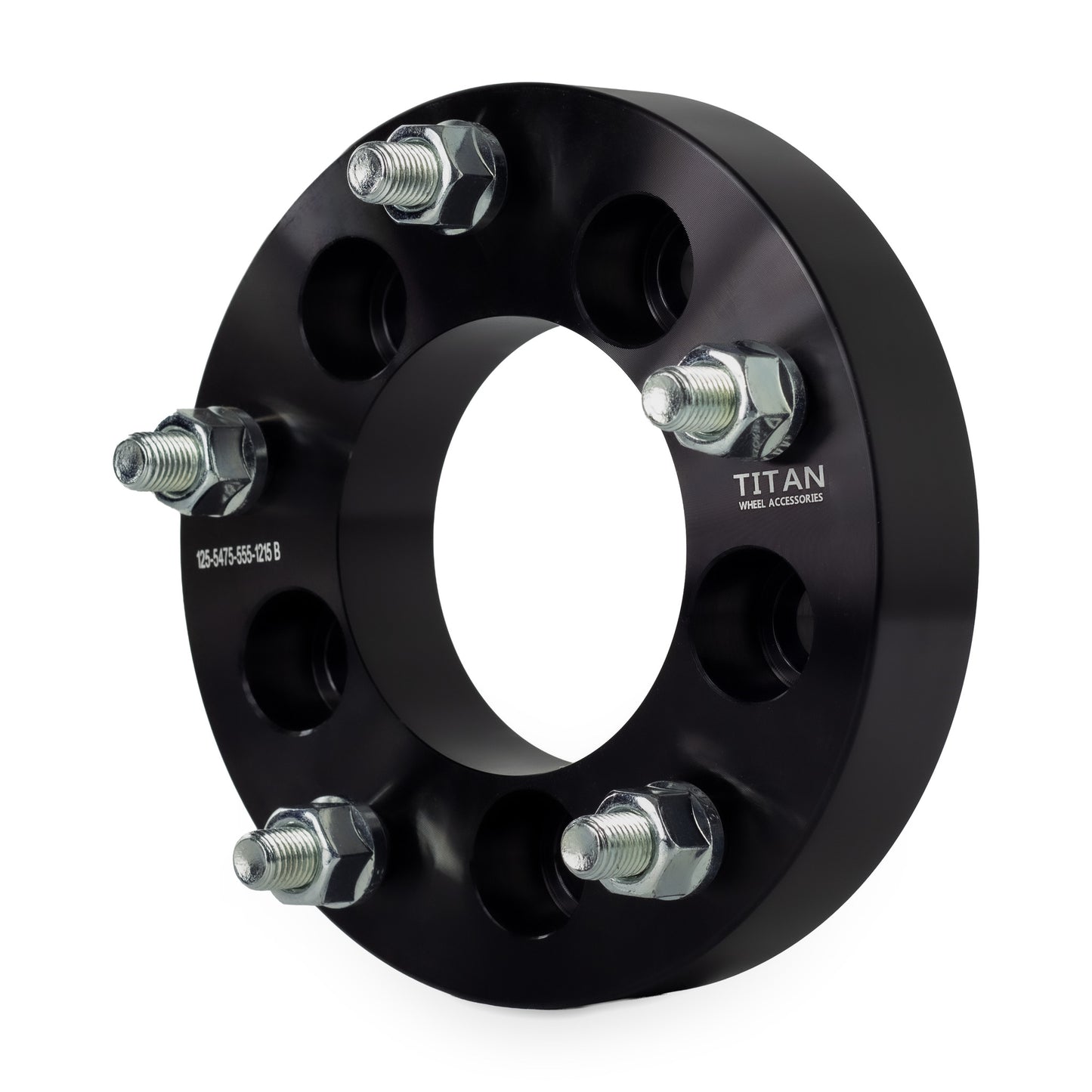

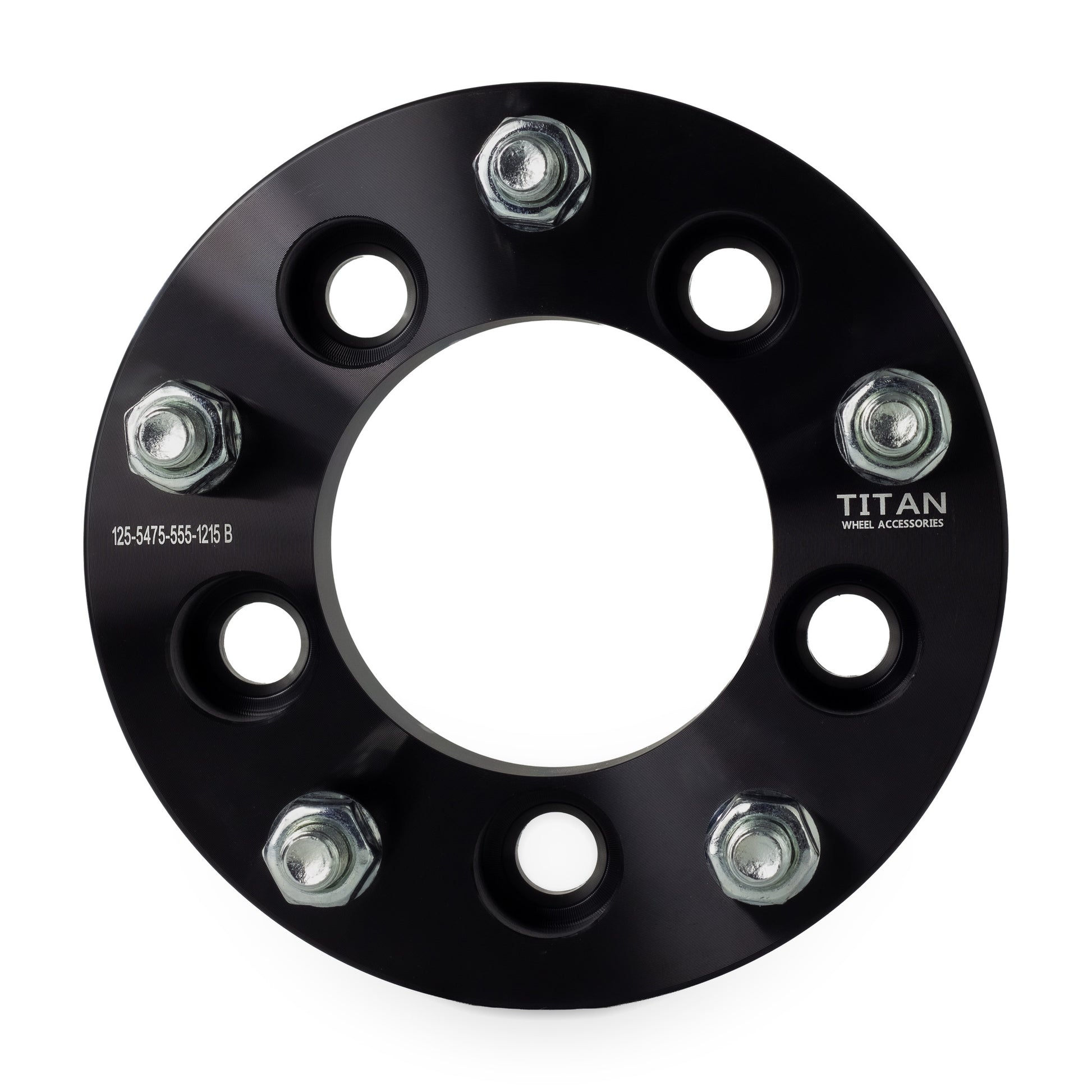

  • 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs — front view

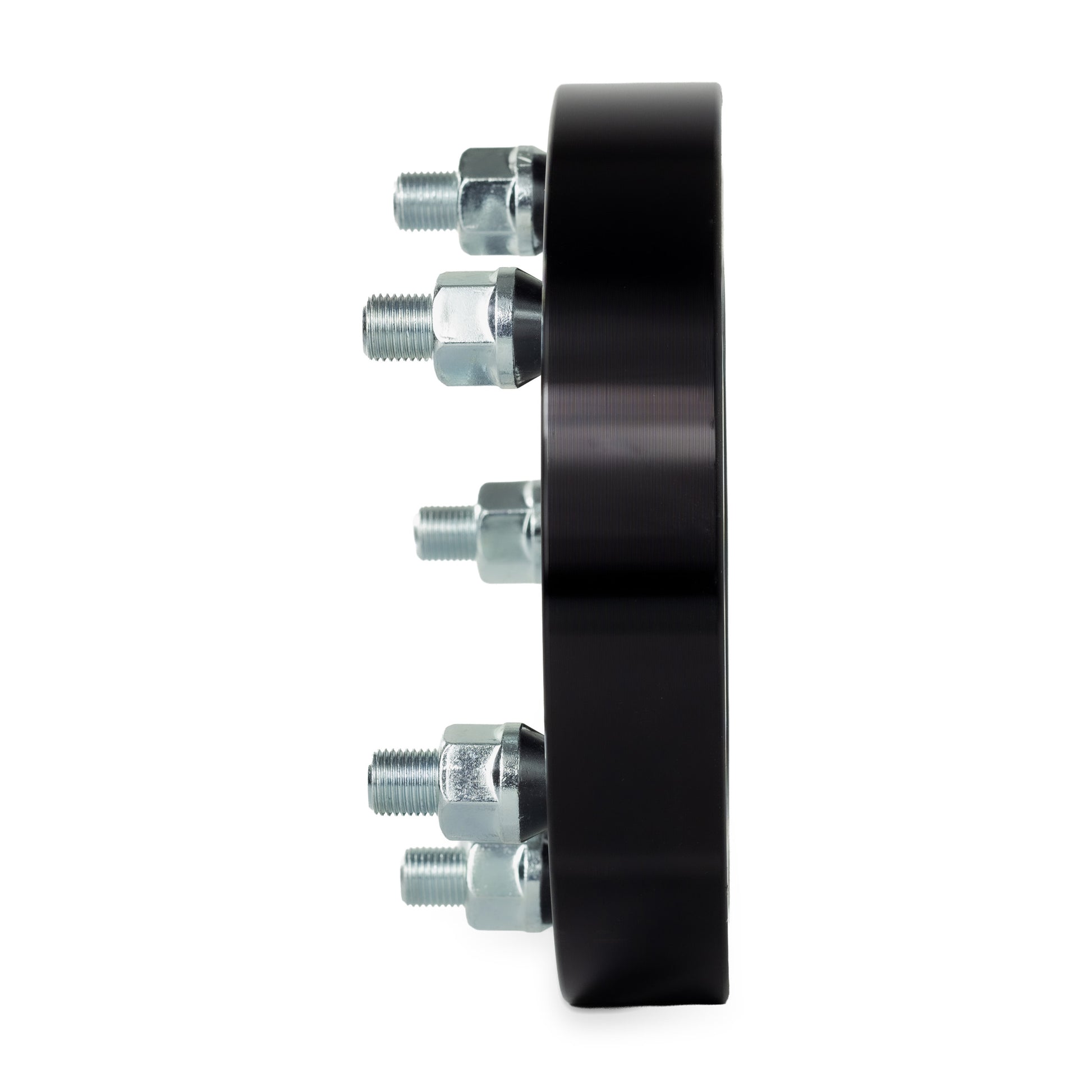

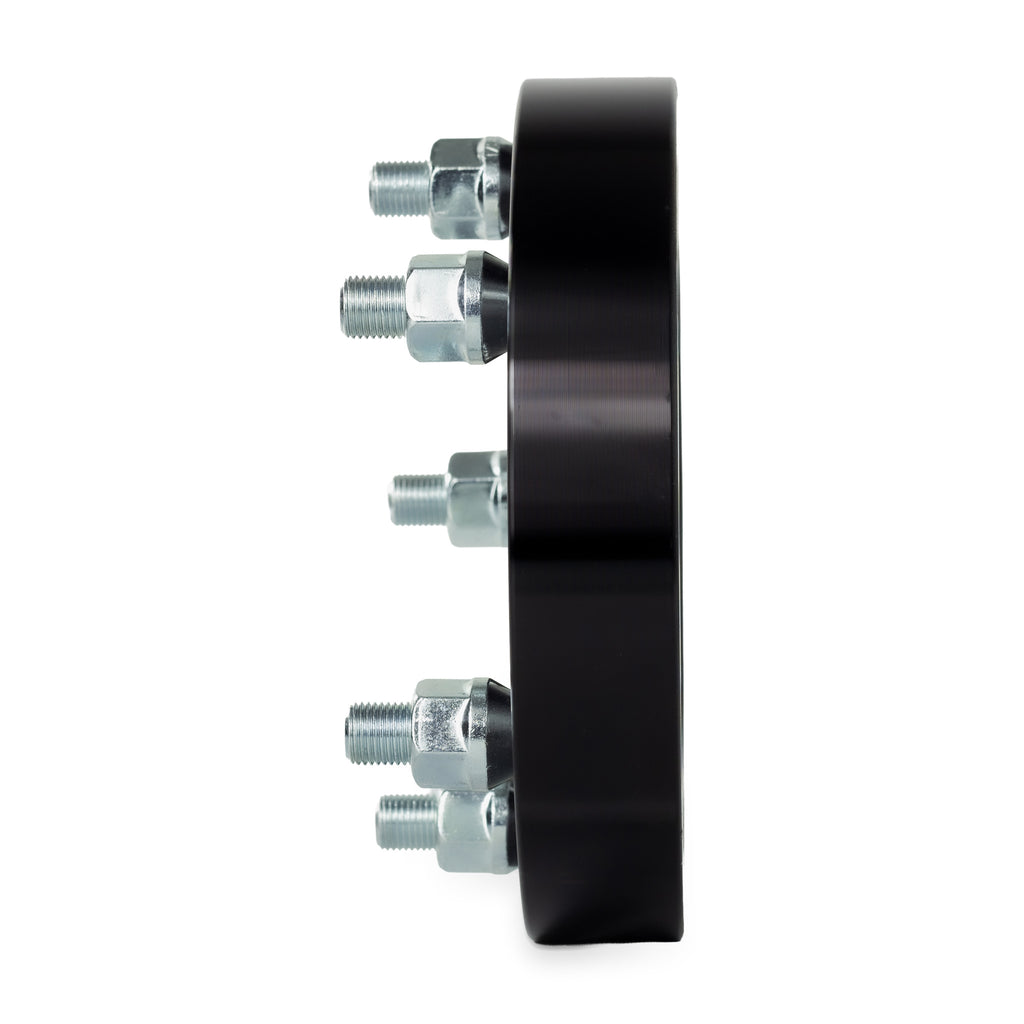

  • 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs — side view

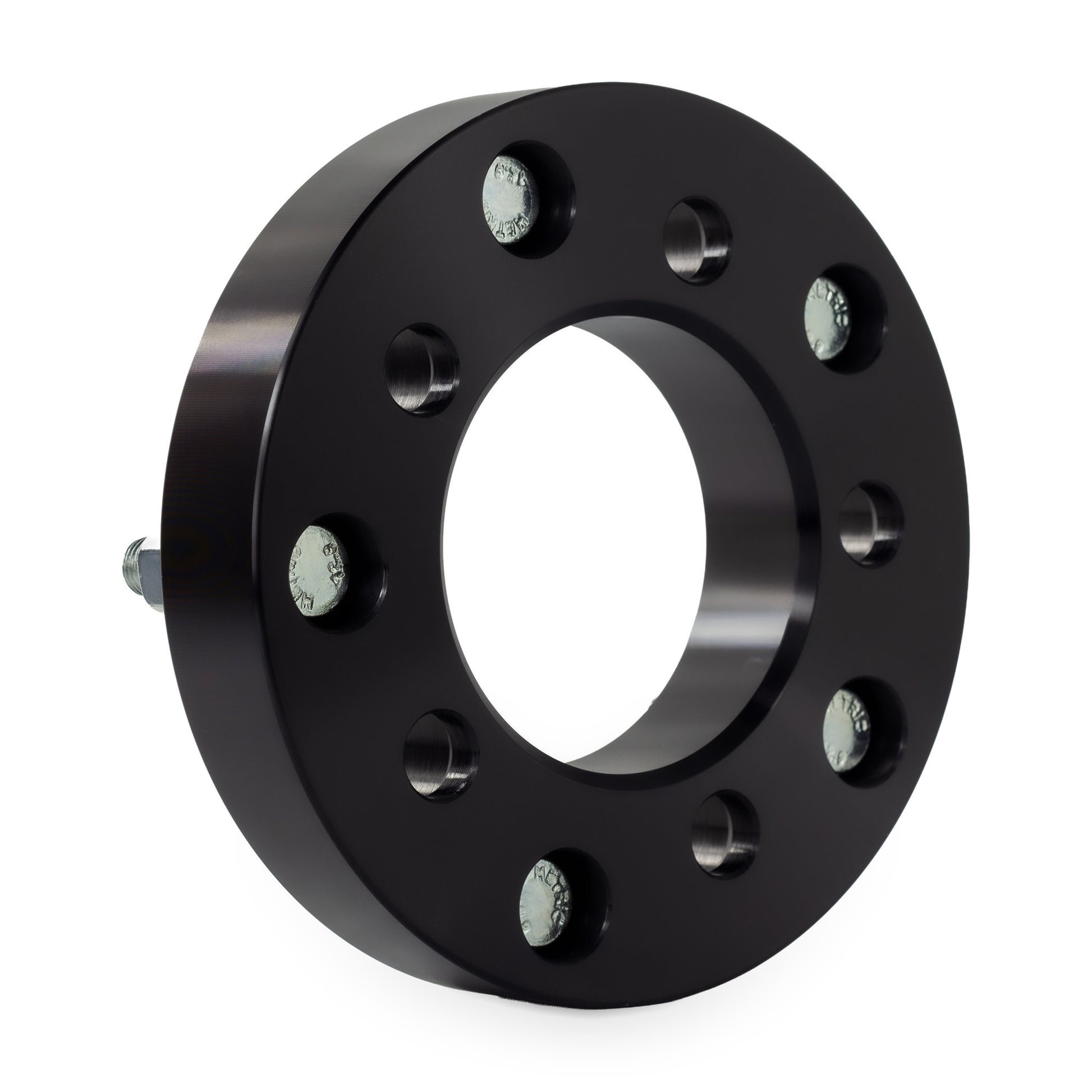

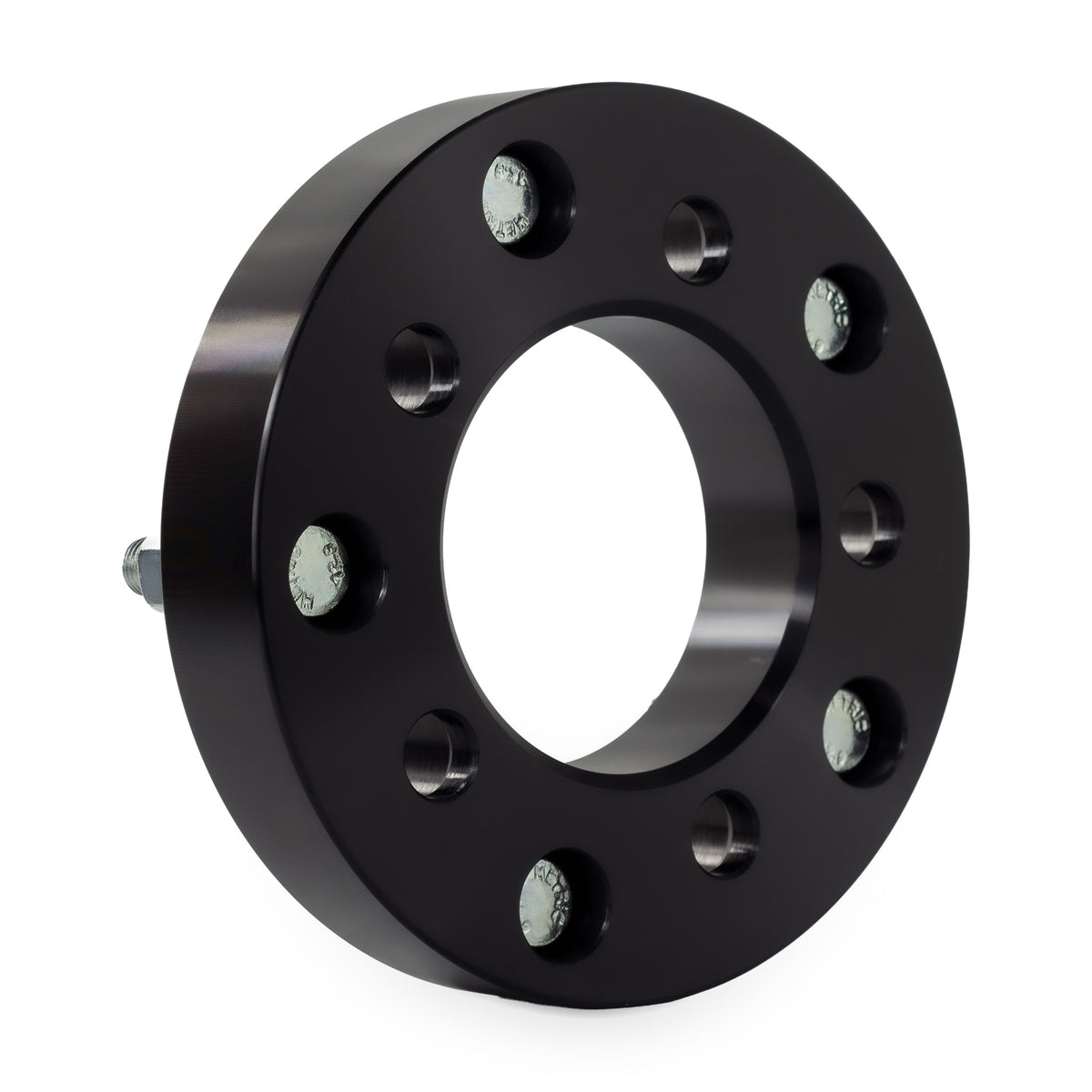

  • 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs — rear three-quarter view

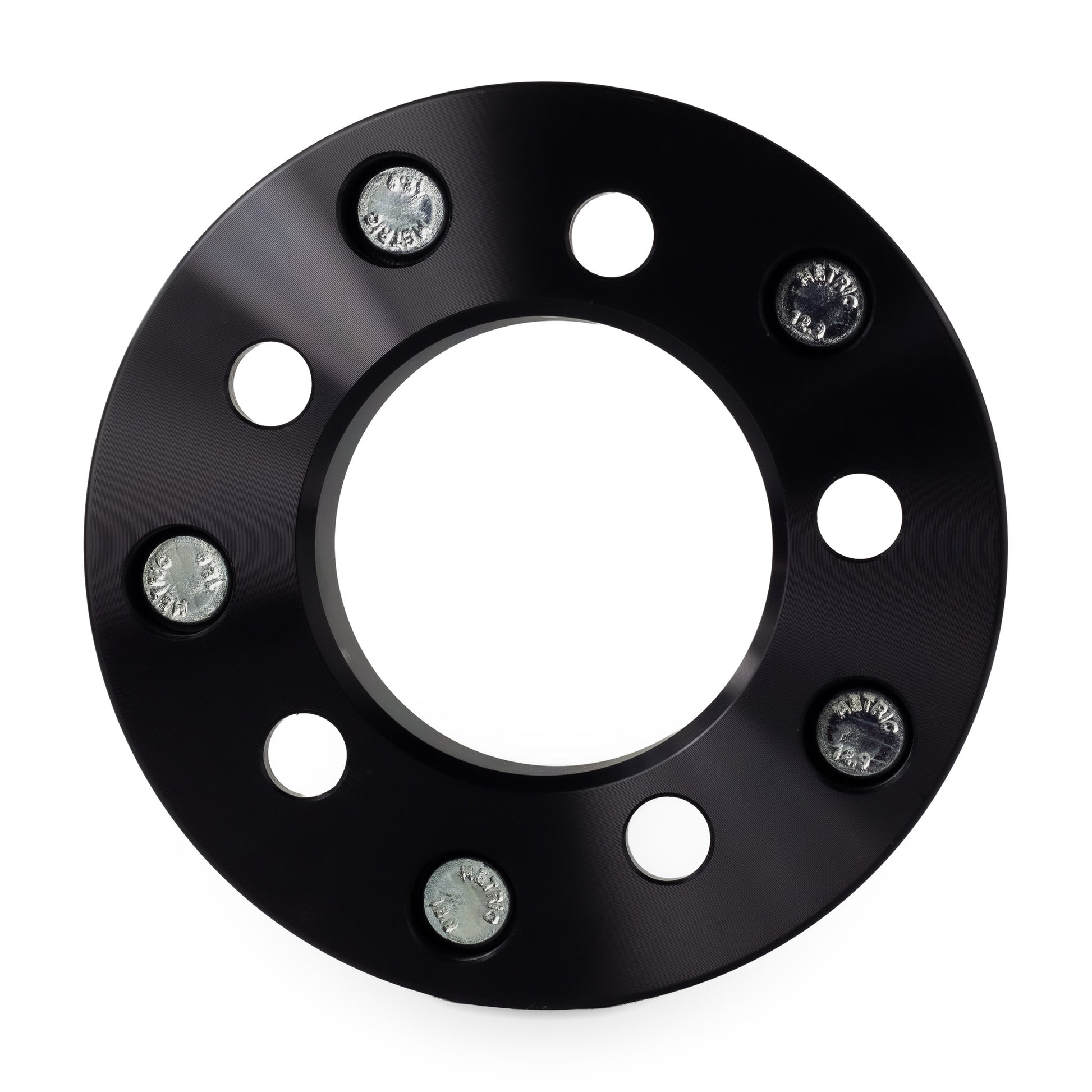

  • 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs — rear view
  • 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs — set of 4
  • 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs — front view
  • 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs — side view
  • 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs — rear three-quarter view
  • 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs — rear view
32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs
TITAN WHEEL ACCESSORIES SKU t-125-5475-555-1215-Z1-4

32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs

Fits bolt pattern: 5x4.75 → 5x5.5

In Stock
$131.95

$32.98 each · set of 4

Flat $18.95 shipping anywhere in the US

  • 1.25"
  • 5×4.75
  • Lugcentric
  • Bolt-on
Quantity
  • 30-day returns
  • Hardware included
  • Lifetime warranty

OVERVIEW

BUILT FOR THE PLATFORM

These 1.25 Inch Titan Wheel Accessories 5x4.75 to 5x5.5 wheel adapters are designed to allow you to fit wheels with a 5x5.5 bolt pattern on a vehicle with a 5x4.75 bolt pattern. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These adapters are easy to install and come with all necessary hardware. They are perfect for anyone looking to change the look of their vehicle or for those who want to use different wheels with a different bolt pattern.

  • 1.25"
  • 5×4.75
  • Lugcentric
  • Bolt-on

HUBCENTRIC VS. LUGCENTRIC

Hubcentric

The spacer's center bore matches your hub, so the wheel is centered on the hub instead of by the lug nuts. That precise centering helps prevent the vibration an off-center wheel causes.

Lugcentric

The lug nuts themselves center the wheel. Common on universal-fit spacers; properly torqued lug nuts keep the wheel true.

This product is lugcentric.

THE NUMBERS

FULL SPEC SHEET

TypeWheel Adapters
Bolt Pattern 5x4.75 → 5x5.5
Hub Bore87.1mm
Thickness1.25"
Thread Pitch12x1.5
CenteringLugcentric
Install TypeBolt-on
FinishBlack
Hardware Included Yes
Net Weight 16.0 lb

IN THE BOX

WHAT'S IN THE BOX

  • 4× 32mm (1.25") 5x4.75 (5x120) To 5x5.5 (5x139.7) Wheel Adapters | 12x1.5 Studs
  • ✓ Open-ended lug nuts to bolt the spacers to your hub — your own lug nuts hold the wheel on

FROM THE GARAGE

WHAT DRIVERS SAY

Customer Reviews

Based on 14 reviews
79%
(11)
0%
(0)
0%
(0)
0%
(0)
21%
(3)
B
Brandon

All four have damaged threads do to poor packaging the Styrofoam wasn't thick enough and on top of it only one came with nuts. I have to install these by Friday for my birthday weekend. I guess I will have to bring my snapon thread cleaning set home and buy lug nuts.

L
Logan

Works perfectly

L
Leandro Bissessar
Wheel Adapters on a Land Rover Discovery 2

Great product with great quality.

Leandro Bissessar review photo Leandro Bissessar review photo
U
Umberto Derrico
Thank you

I love the product. I made the mistake with my order. I still want the correct product.

I will contact customer service and hopefully return them.

Thank you

Umberto

J
JEFF BARR

great product

123

THE GRID

SEEN ON REAL BUILDS

ANSWERS

QUESTIONS, ANSWERED

The questions drivers ask most about this product — answered up front.

SEE ALL FAQ
Will these fit my exact vehicle?
Check the spec sheet above for bolt pattern and hub bore, or use the fitment finder to confirm against your year, make and model.
Do I need an alignment after installing?
No alignment change is required for the spacer itself, though we recommend a routine check if you're also changing offset or ride height.
What torque should I use?
See the Installation section above for the torque spec sheet included with this product — never exceed 110 ft-lbs.

INSTALLATION

Bolt-On Wheel Spacers and Adapters

Before you install

If your factory wheel studs are longer than the spacer is thick, they must be trimmed or replaced with shorter studs — unless the wheel has relief pockets deep and wide enough to clear them. Never install a wheel where the factory studs touch the back of it. The wheel must seat completely flat against the face of the spacer.

Full installation guide

Torque Specs

All lug nuts used to install wheel spacers must be torqued by hand using a torque wrench. The use of power tools to install lug nuts can cause them to be over-torqued or can cause damage to the spacers and studs.

  • Maximum torque: 110 ft-lbs. If the vehicle manufacturer's torque specification is under 110 ft-lbs, follow that specification.
  • Lug nuts securing the adapters to the hub and the wheels to the adapters: vehicle manufacturer's specification, not to exceed 110 ft-lbs.

Re-Torque Schedule

  • After driving with the new spacers or adapters for 25 miles, check the torque on all lug nuts again.
  • The wheels will need to be removed to check the lug nuts securing the spacer to the hub on bolt-on spacers and adapters.
  • It is always a good idea to check torque on all lug nuts periodically after installation, and immediately if a new vibration is noticed.

Never exceed 110 ft-lbs — use the OEM spec if it's lower.

Failure to correctly install the product may result in the loss of wheel(s) while driving. Proper installation is to be performed by a trained technician with sufficient knowledge of these products. Titan Wheel Accessories products are intended for off-road or competition use only.
