25mm (1") Titan Wheel Spacers for VW Audi Mercedes | 5x112 | 66.56 Hubcentric |
25mm (1") Titan Wheel Spacers for VW Audi Mercedes | 5x112 | 66.56 Hubcentric |
Couldn't load pickup availability
Share
Space out your wheels for a more aggressive stance or increased suspension and brake clearance.
These wheel spacers come with everything needed for full installation.

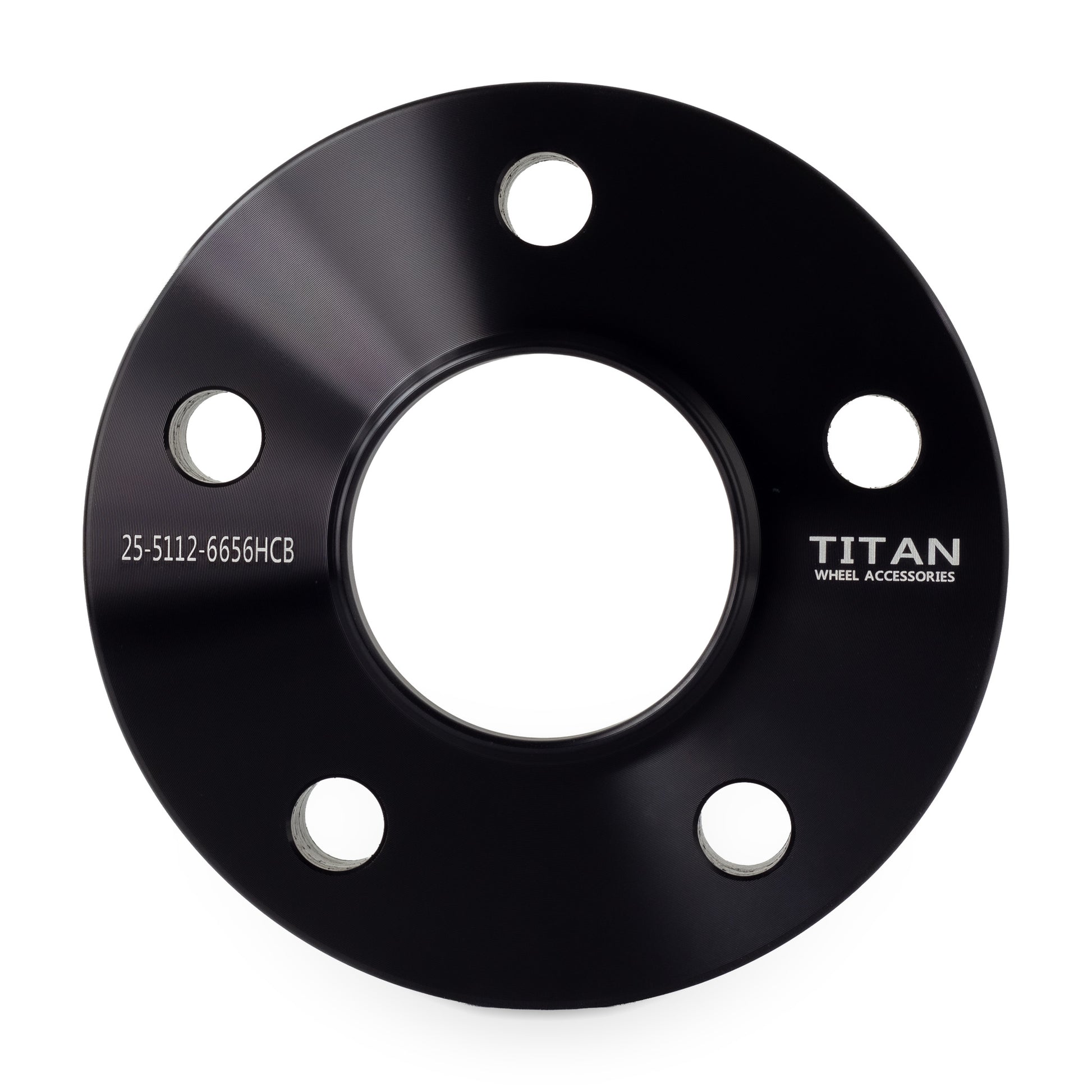

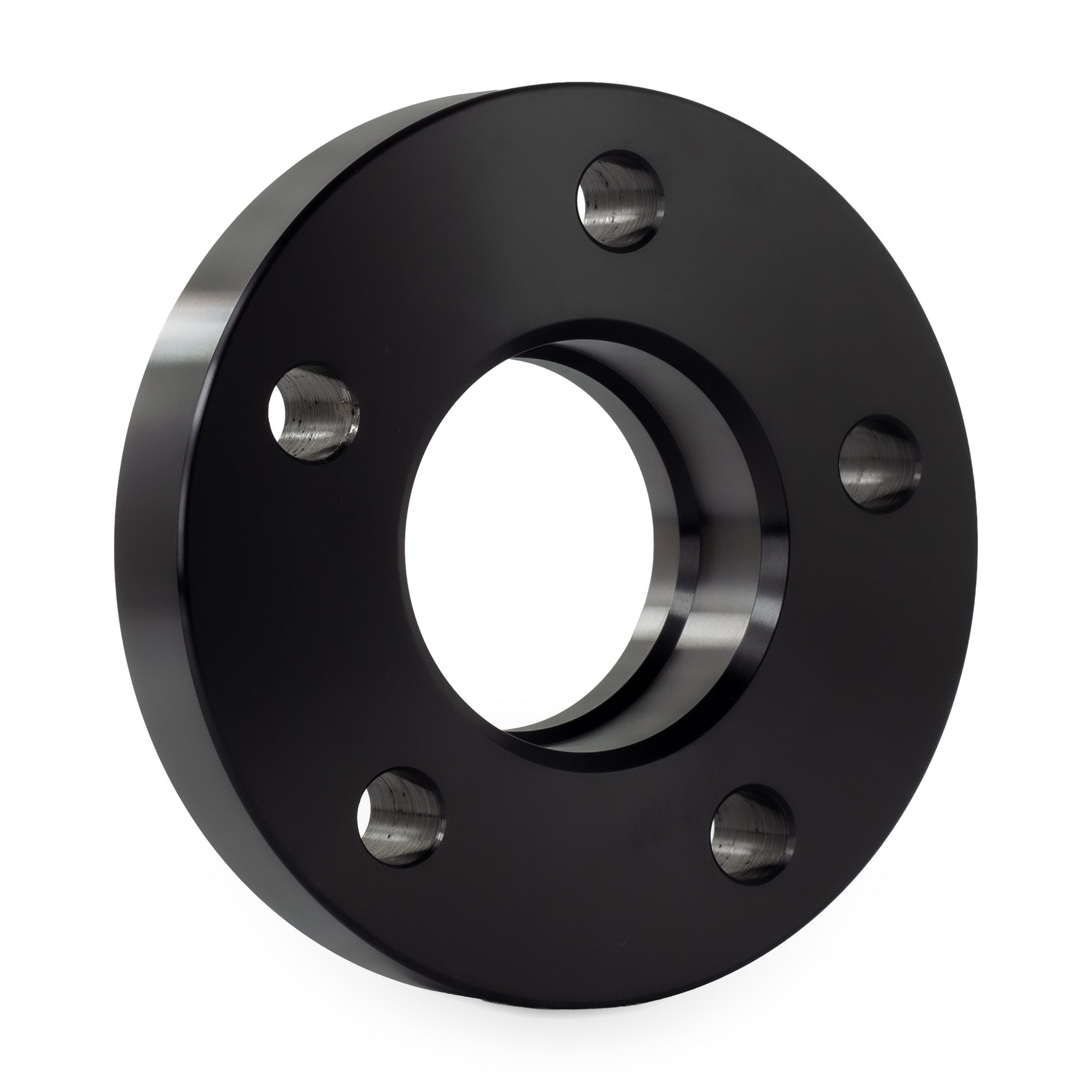

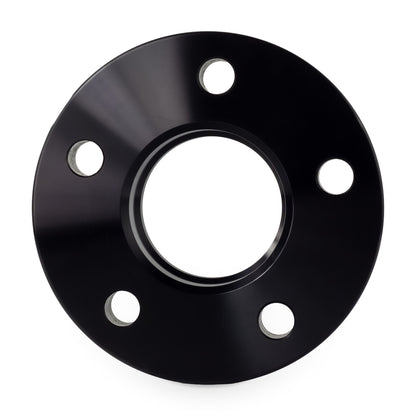

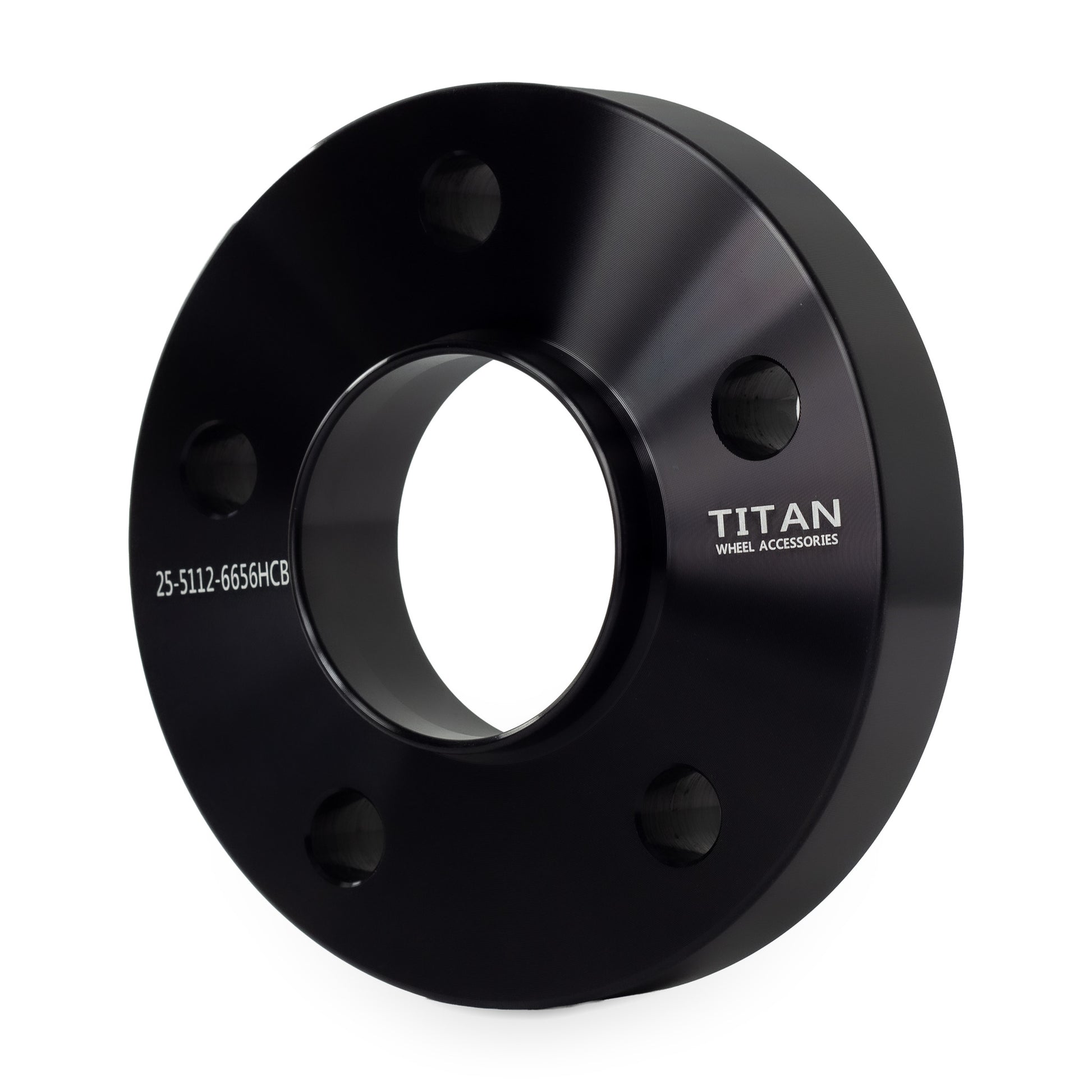

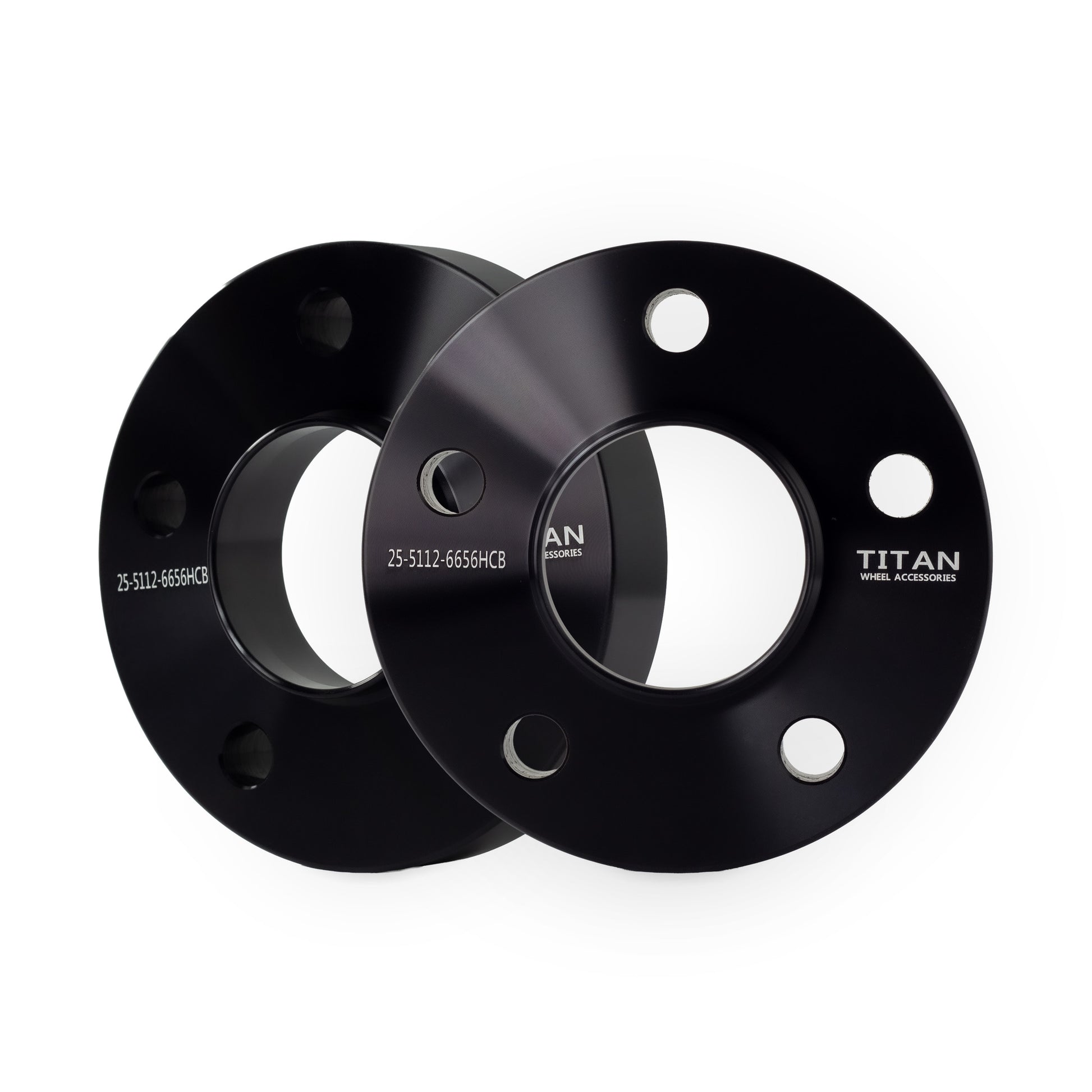

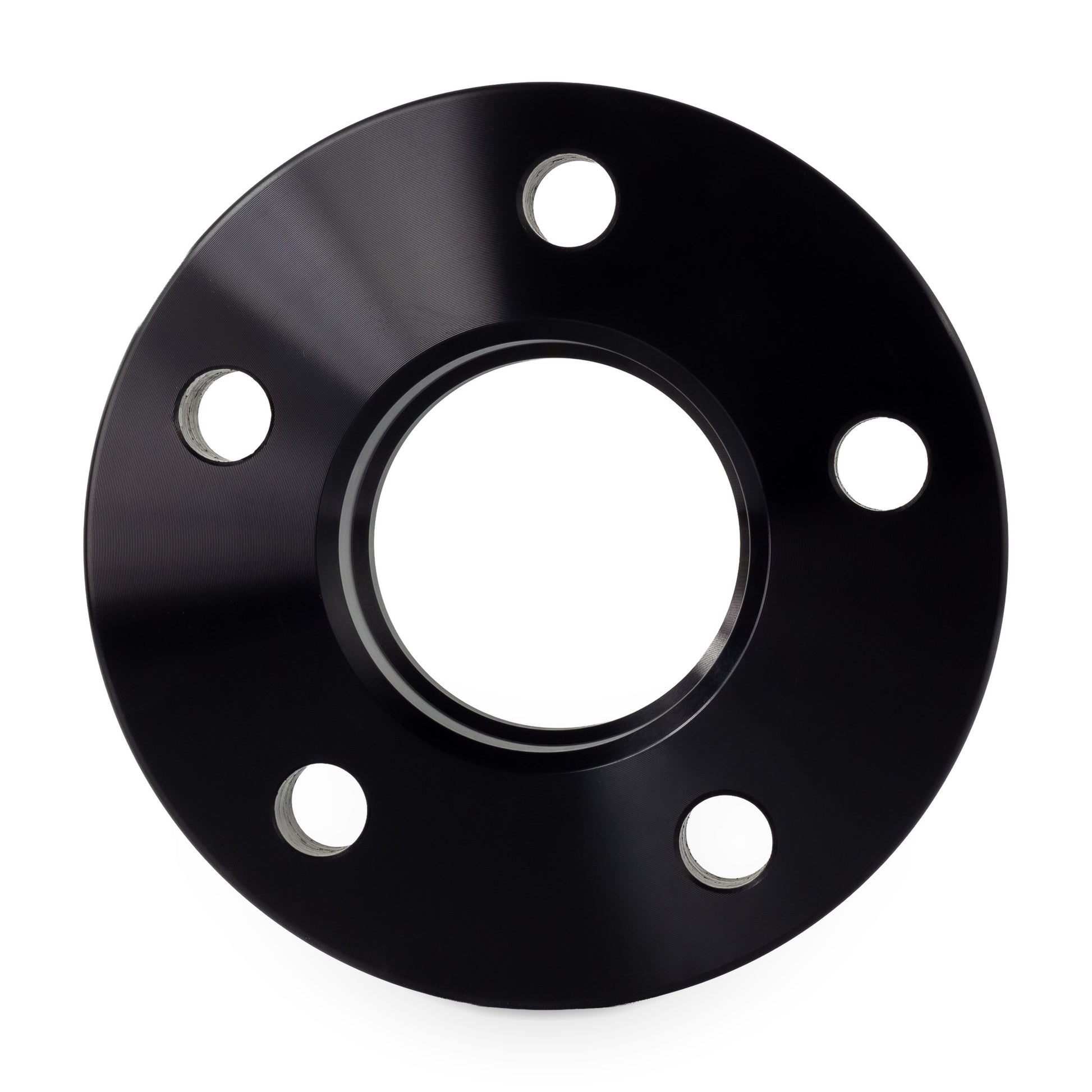

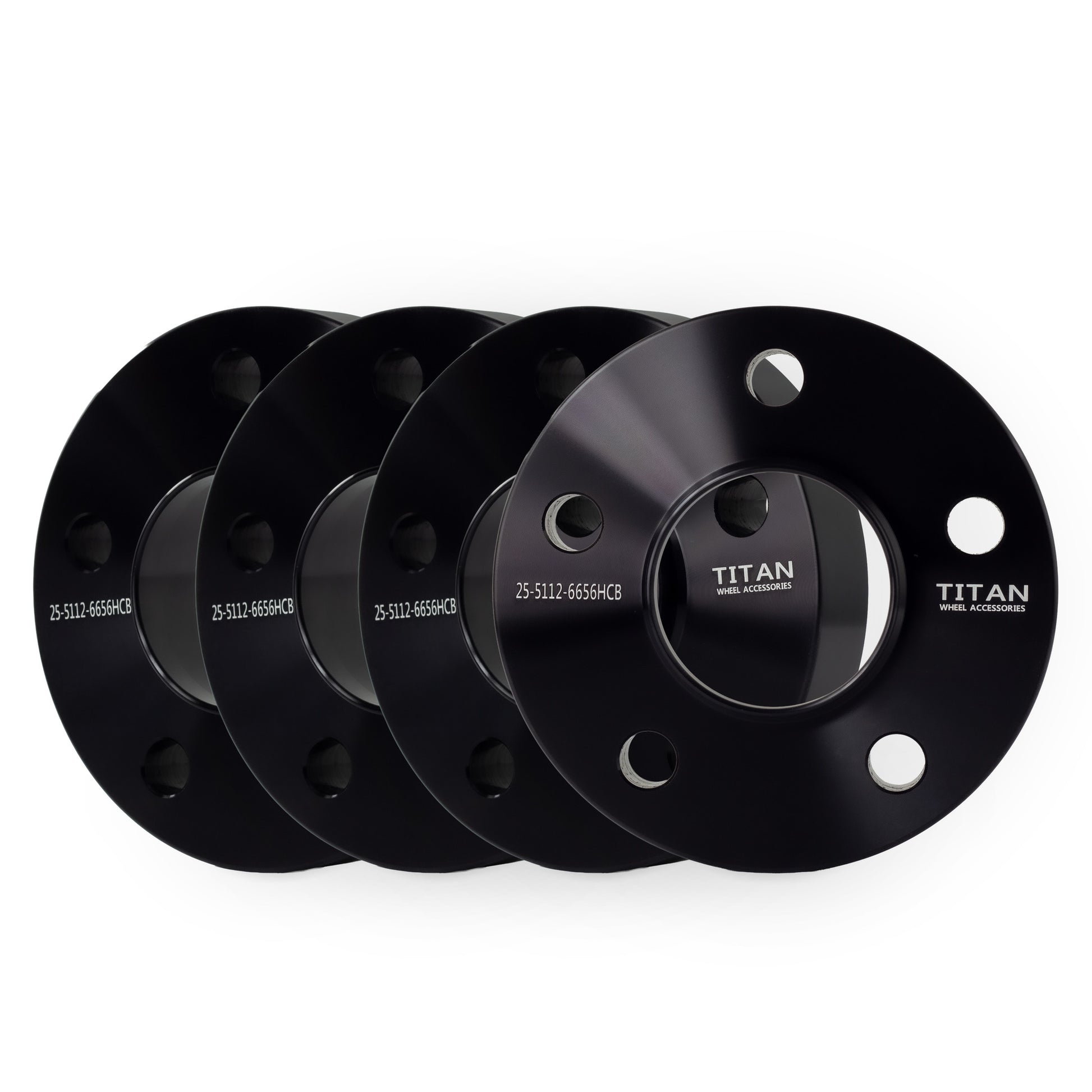

These Titan Wheel Accessories 25mm hubcentric wheel spacers are designed with a 5x112 bolt pattern and 66.56mm hub bore for Audi A4 S4, A5 S5, Mercedes C Class, E Class and S Class. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These spacers will improve the stance of your vehicle, providing a more aggressive look while also adding additional clearance for aftermarket brake and suspension parts. They also allow for larger wheel and tire combinations to be installed, giving you more options for customization.
Specifications
Specifications
- Vehicle Bolt Pattern: 5x112
- Wheel Bolt Pattern: 5x112
- Hub Bore: 66.56
- Thread Pitch:

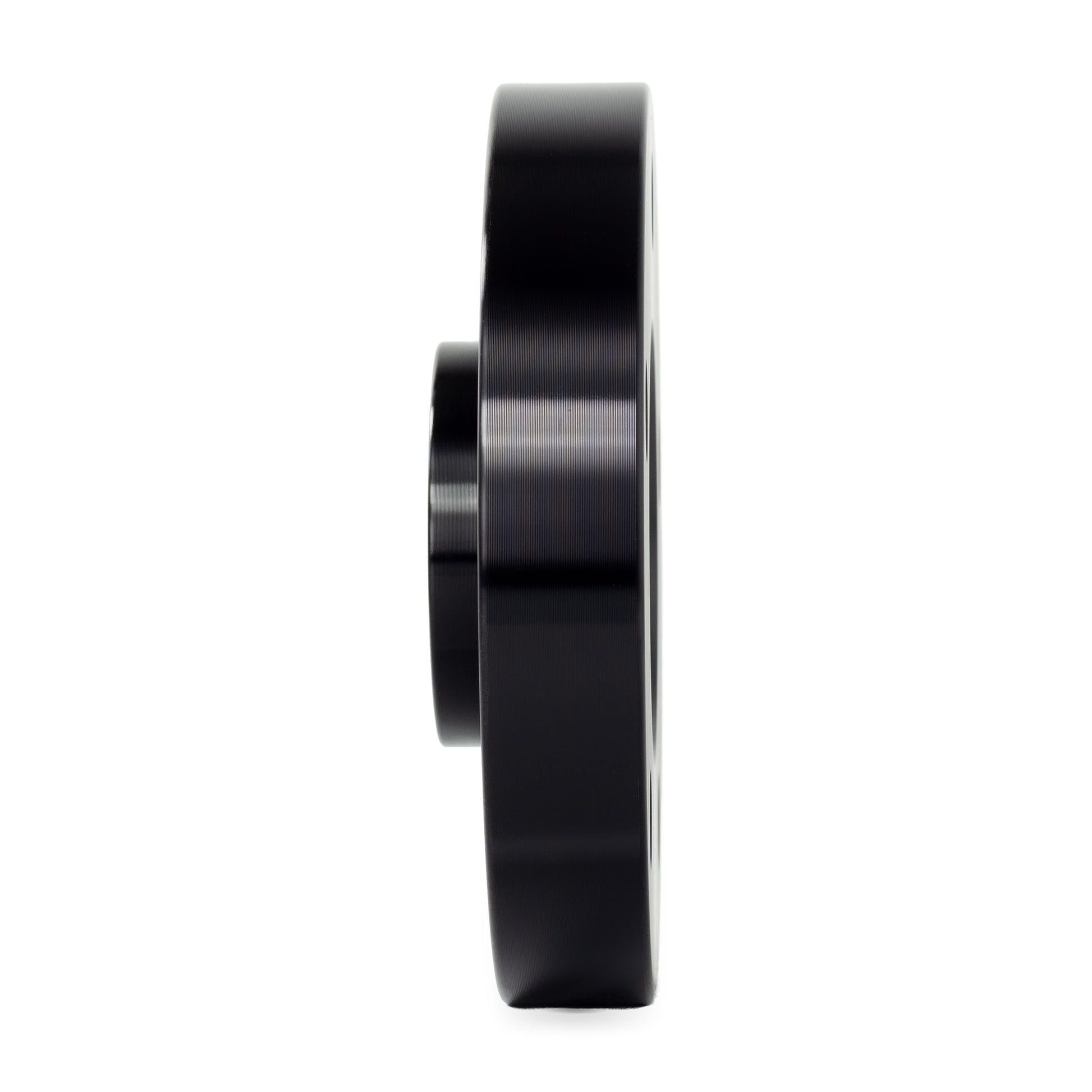

- Thickness: Each spacer measures 1 Inch (25mm) thick
Materials
Materials
- Our spacers are machined from billet T6 6061 aluminum
- Black finish
Vehicle Fitment
Vehicle Fitment
These spacers will bolt up to the following vehicles:
2009-2017 Audi A4/S4 (additional lug bolt/studs will be required for installation)
2009-2017 Audi A5/S5 (additional lug bolt/studs will be required for installation)
1994-2000 MERCEDES W202 C Class C220, C230, C280, C43 AMG (additional lug bolt/studs will be required for installation)
2002-2007 MERCEDES W203 C Class C230, C240, C320, C32 AMG, C55 AMG (Rear Only)(additional lug bolt/studs will be required for installation)
2008-2011 MERCEDES W204 C Class C300, C350, C63 AMG (additional lug bolt/studs will be required for installation)
2000-2011 MERCEDES W215 & W216 CL Class CL500, CL600, CL63 AMG, CL65 AMG (Rear Only) (additional lug bolt/studs will be required for installation)
1997-2009 MERCEDES W208 & W209 CLK Class CLK320, CLK350, CLK430, CLK500, CLK550, CLK55 AMG (Rear Only)(additional lug bolt/studs will be required for installation)
2004-2010 MERCEDES W219 CLS Class CLS320, CLS350, CLS500, CLS550 (Rear Only)(additional lug bolt/studs will be required for installation)
1996-2002 MERCEDES W210 E Class E320, E420, E430, E55 AMG(additional lug bolt/studs will be required for installation)
2003-2009 MERCEDES W211 E Class E320, E350 (Rear Only)(additional lug bolt/studs will be required for installation)
2000-2012 MERCEDES W212 E Class E350, E500(additional lug bolt/studs will be required for installation)
2000-2005 MERCEDES W220 S Class S320, S400, S420, S500, S600(additional lug bolt/studs will be required for installation)
2006-2010 MERCEDES W221 S Class S320, S350, S450, S600, S63 AMG (Rear Only)(additional lug bolt/studs will be required for installation)
1994-2002 MERCEDES R129 SL Class SL320, SL500, SL600 2003-2010 - R230 - SL Class - SL500, SL600, SL550, SL55 AMG, SL65 AMG (Rear Only)(additional lug bolt/studs will be required for installation)
1997-2003 MERCEDES R170 SLK Class SLK230, SLK320(additional lug bolt/studs will be required for installation)
2004-2010 MERCEDES R171 SLK Class SLK280, SLK350, SLK55 AMG (Rear Only)(additional lug bolt/studs will be required for installation)
Vehicle fitment information applies only to the vehicle's hub.
Installation Information
- Please ensure that the your vehicle has the same studs as the adapters, otherwise additional lug nuts WILL BE required
- Make sure that all lug nuts get a full 6-8 turns when tightening. Failure to do so, can result in damage to your vehicle.
- Installation needs to be performed by a trained professional
It's Possible that your OEM Studs are longer than the spacer is thick, if so you have a few options:
- Your lugs studs will need to be shortened by grinding them down or you can replace your OEM lug studs with shorter studs.
- If your wheels have sufficient sized and placed pockets machined in the backside, between the mounting holes, then you should not need to modify your factory wheel studs.
- Always ensure that there is no gap between the spacer and the back of the wheels.
-
Same Day Shipping
Orders placed before 3:00 PM EST will be shipped out same day. Weekend and Holiday orders will be shipped promptly on the following business day.
-
Questions?
Feel free to reach out to us with any questions. Our staff is highly trained and happy to help you find the correct product for your vehicle. You can email us at info@titanwheelaccessories.com
Received them quickly. Fit was perfect. Just what I needed for the back of my Vanagon.
Spacers were exact fit.
This product claimed to fit my 2016 CLS550 but when I went to have them installed yesterday, the shop told me the hubcentric circle is the wrong size and that they are only for VW & Audi. With the 20% restocking fee and the return shipping being my responsibility per their policy, it's not even worth it to return them for the $40-$50 I would net. Highly disappointed.
However, would’ve made them slightly bigger in diameter leaving a bit more material on the outside of the lug holes.
