Space out your wheels for a more aggressive stance or increased suspension and brake clearance.

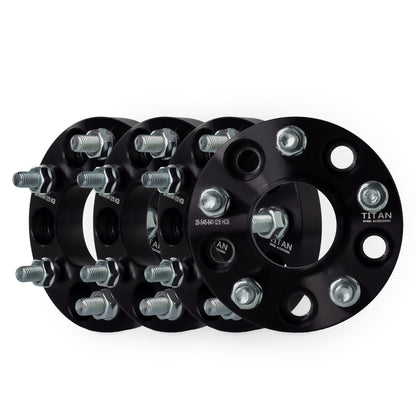

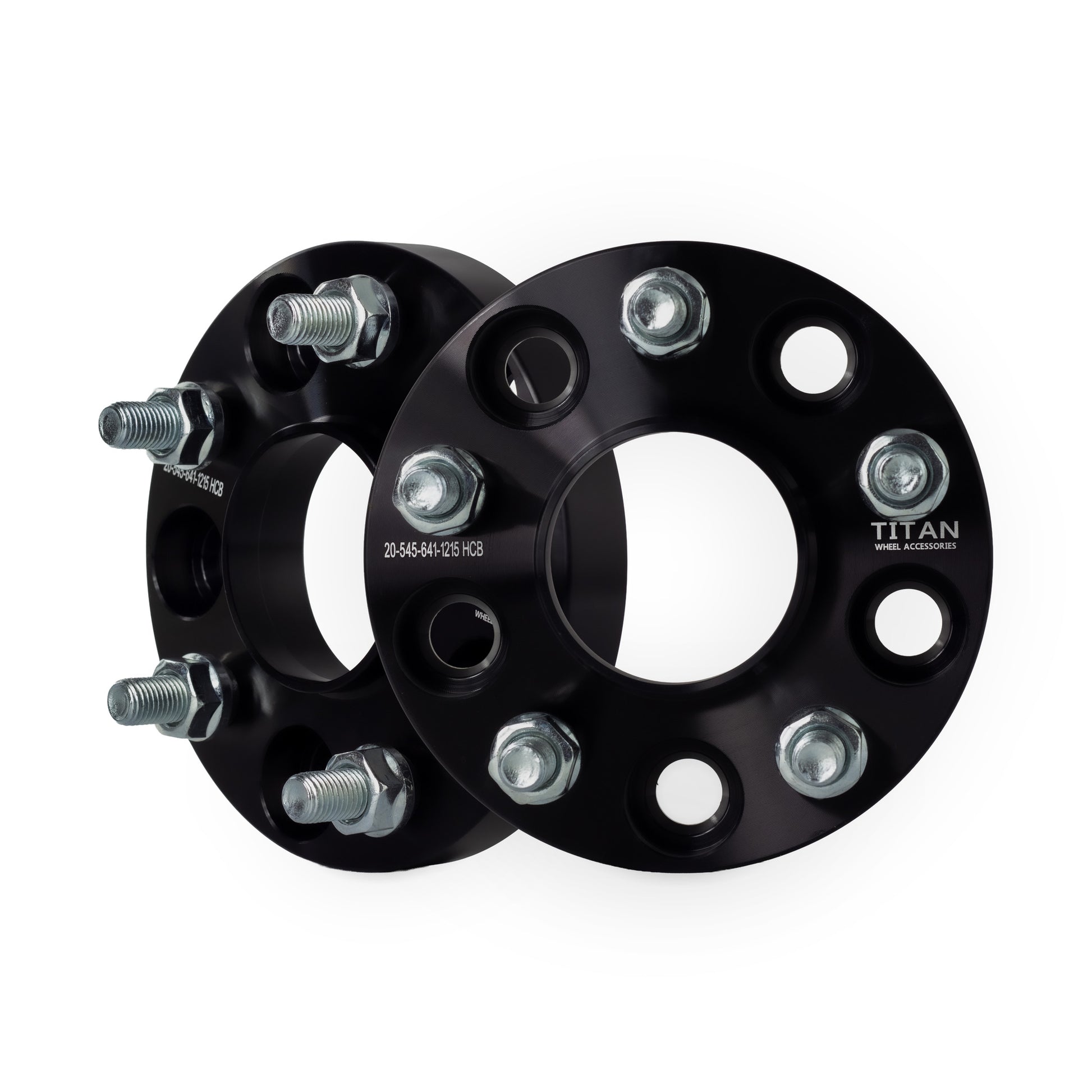

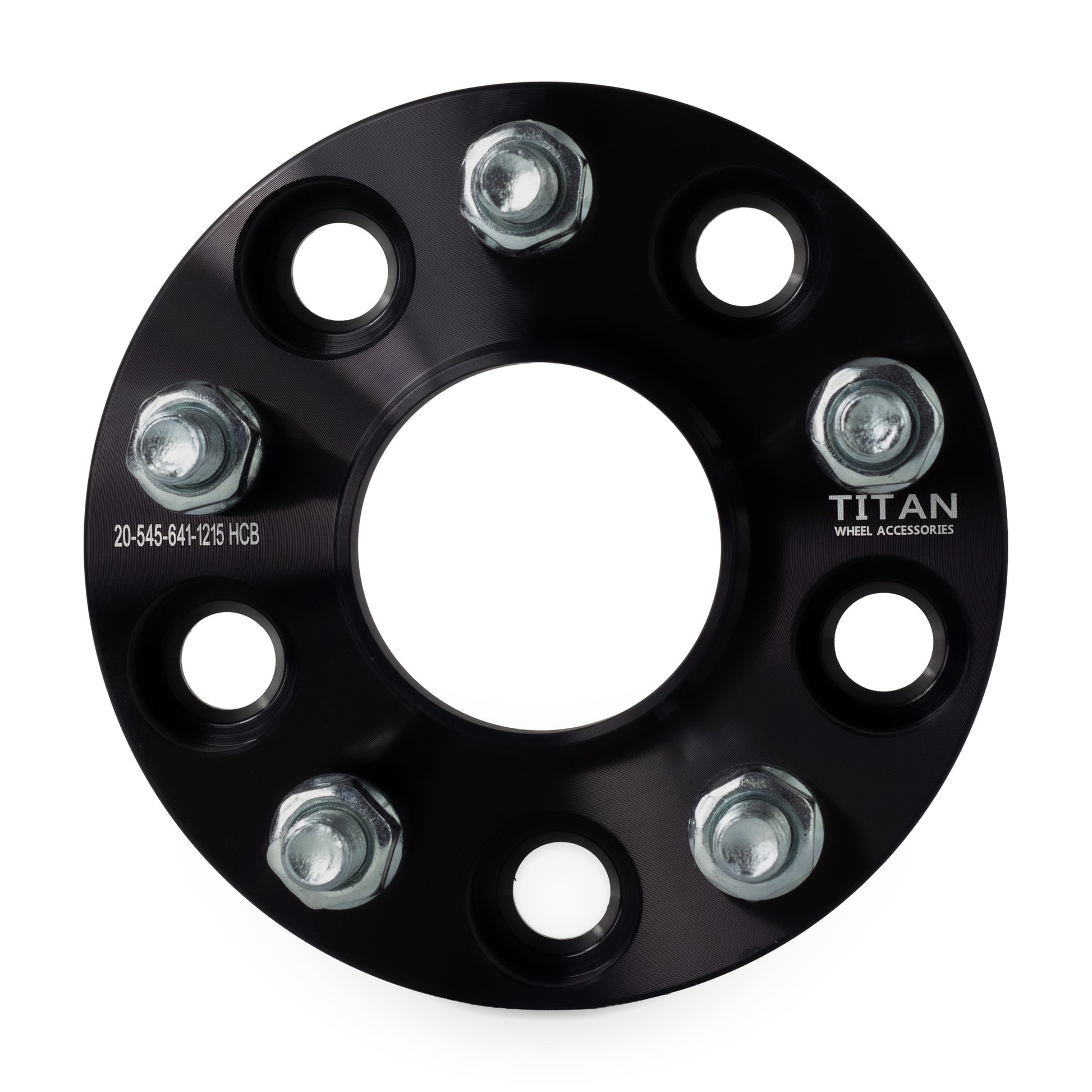

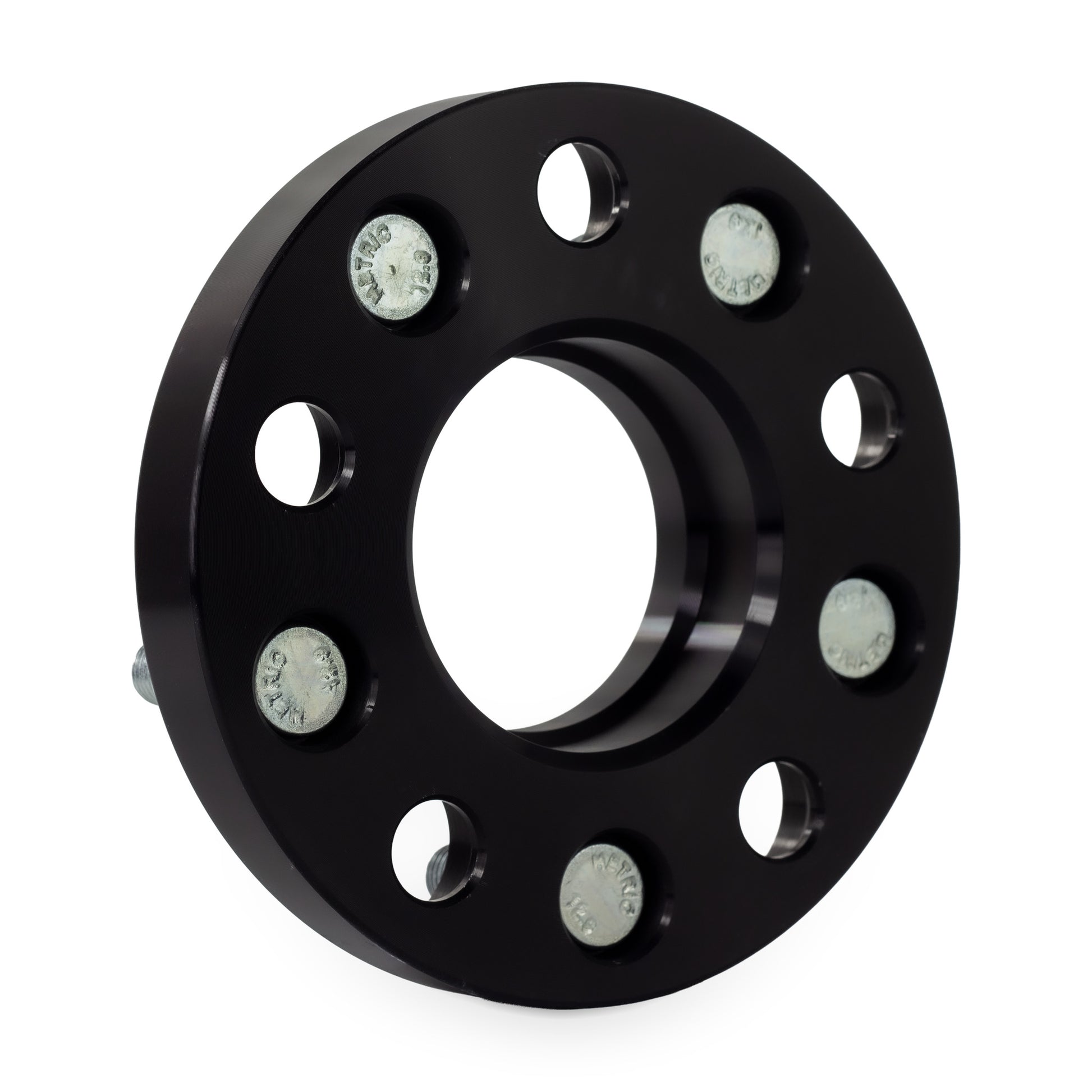

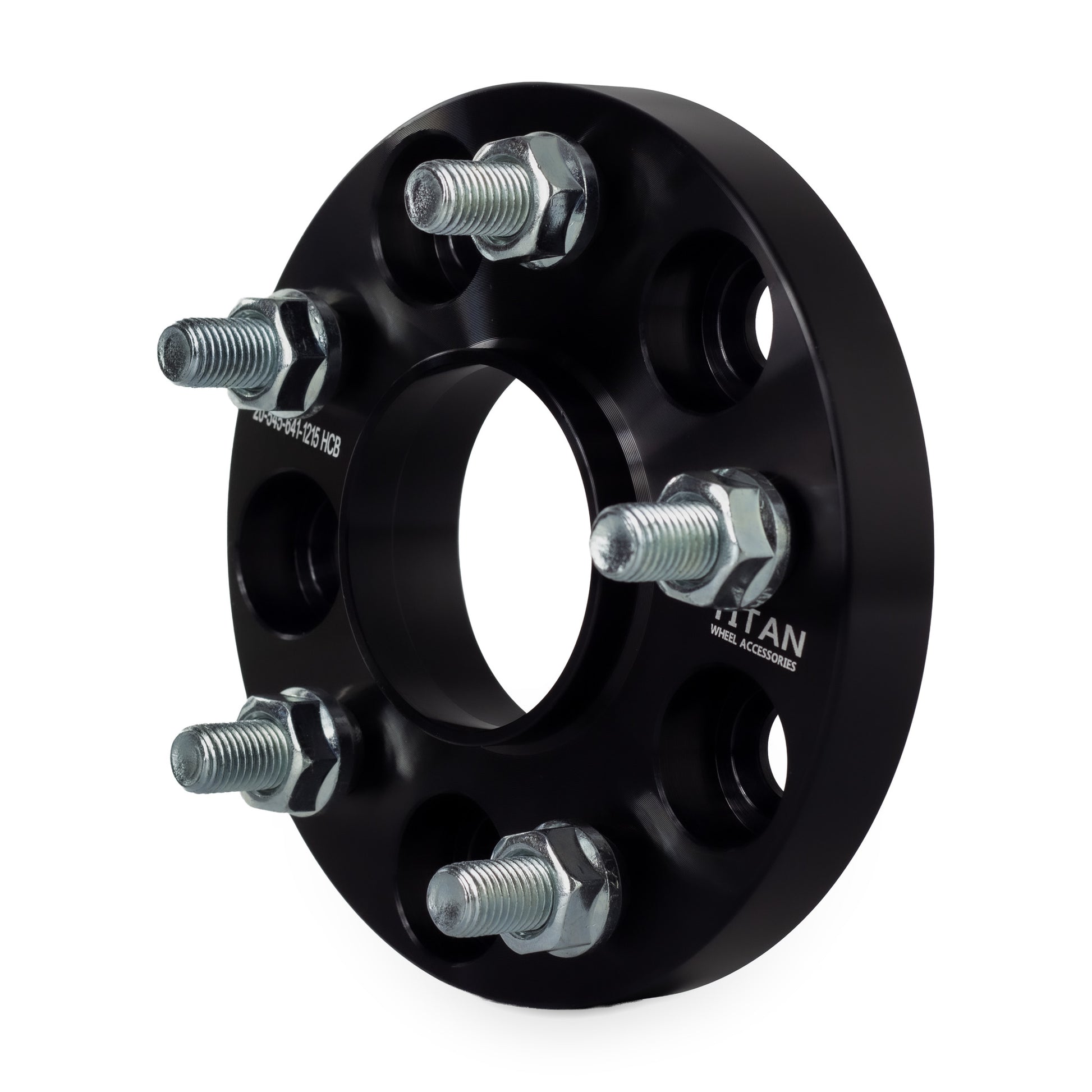

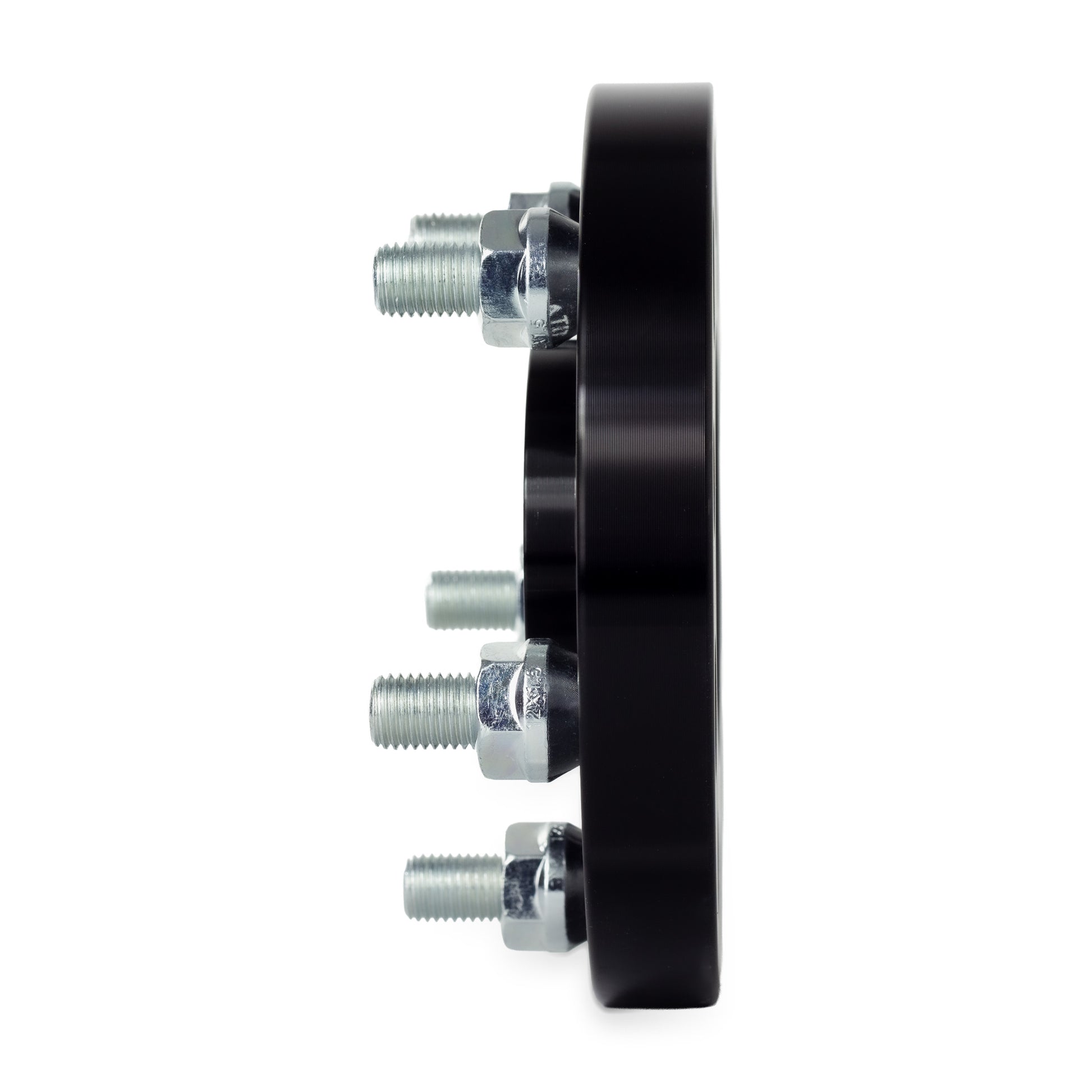

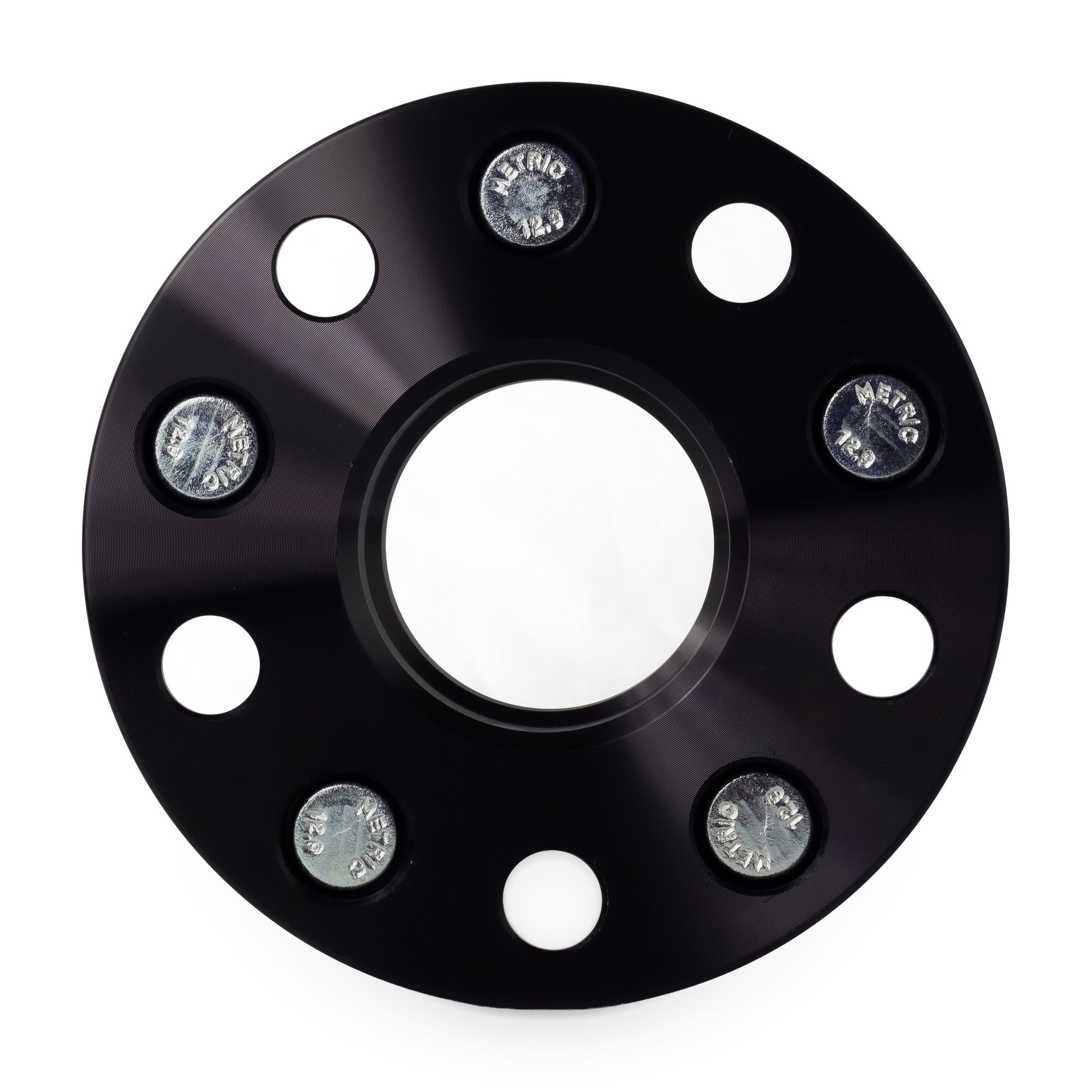

These Titan Wheel Accessories 20mm hubcentric wheel spacers are designed with a 5x4.5 (5x114.3) bolt pattern, 64.1mm hub bore and 12x1.5 thread pitch for Acura CL, Integra Type R, MDX, RL, RSX, TSX, Honda Civic, Accord, Fit and Odyssey. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These spacers will improve the stance of your vehicle, providing a more aggressive look while also adding additional clearance for aftermarket brake and suspension parts. They also allow for larger wheel and tire combinations to be installed, giving you more options for customization. These spacers are easy to install and come with all necessary hardware.
Specifications
Specifications
- Vehicle Bolt Pattern: 5x4.5 (5x114.3)
- Wheel Bolt Pattern: 5x4.5 (5x114.3)
- Hub Bore: 64.1
- Thread Pitch: 12x1.5
- Thickness: Each spacer measures 20mm thick
Materials
Materials
- Our spacers are machined from billet T6 6061 aluminum
- Black finish
Vehicle Fitment
Vehicle Fitment
These spacers will bolt up to the following vehicles:
2001-2003 Acura CL 3.2
2013-20122 Acura ILX
2023 Acura Integra
1997-2001 Acura Integra Type R
2001-2006 Acura MDX
2014-2016 Acura MDX
2007-2023 Acura RDX
1997-2004 Acura RL 3.5
2002-2006 Acura RSX
2004-2008 Acura TL
1996-2003 Acura TL 3.2
2015-2020 Acura TLX
2019-2020 Acura TLX A-SPEC SH
2004-2014 Acura TSX
2003-2023 Honda Accord
1998-2002 Honda Accord 5 Lug
2006-2023 Honda Civic
2017-2021 Honda Clarity
2010-2015 Honda Crosstour
1997-2023 Honda CR-V
2011-2016 Honda CR-Z
2003-2011 Honda Element
2016-2023 Honda HR-V
2019-2022 Honda Insight
1995-2004 Honda Odyssey
2003-2008 Honda Pilot
1997-2001 Honda Prelude
Vehicle fitment information applies only to the vehicle's hub.
View full detailsInstallation Information
- Please ensure that the your vehicle has the same studs as the adapters, otherwise additional lug nuts WILL BE required
- Make sure that all lug nuts get a full 6-8 turns when tightening. Failure to do so, can result in damage to your vehicle.
- Installation needs to be performed by a trained professional
It's Possible that your OEM Studs are longer than the spacer is thick, if so you have a few options:
- Your lugs studs will need to be shortened by grinding them down or you can replace your OEM lug studs with shorter studs.
- If your wheels have sufficient sized and placed pockets machined in the backside, between the mounting holes, then you should not need to modify your factory wheel studs.
- Always ensure that there is no gap between the spacer and the back of the wheels.
-
Same Day Shipping
Orders placed before 3:00 PM EST will be shipped out same day. Weekend and Holiday orders will be shipped promptly on the following business day.
-
Questions?
Feel free to reach out to us with any questions. Our staff is highly trained and happy to help you find the correct product for your vehicle. You can email us at info@titanwheelaccessories.com
