1" Wheel Spacers for Chevy Corvette Camaro Firebird S10 | 5x4.75 (5x120) | 12x1.5 Studs |
1" Wheel Spacers for Chevy Corvette Camaro Firebird S10 | 5x4.75 (5x120) | 12x1.5 Studs |
Space out your wheels for a more aggressive stance or increased suspension and brake clearance.

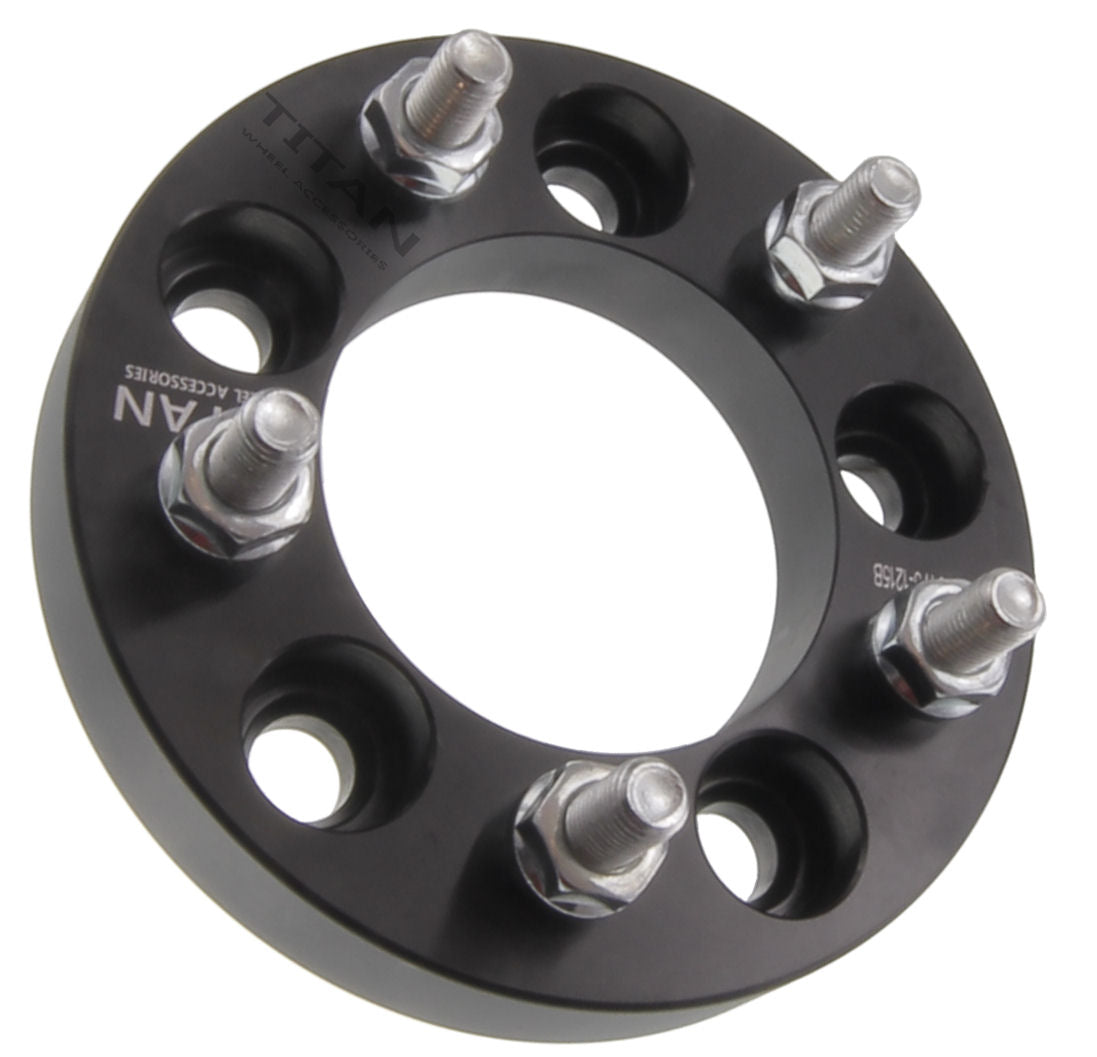

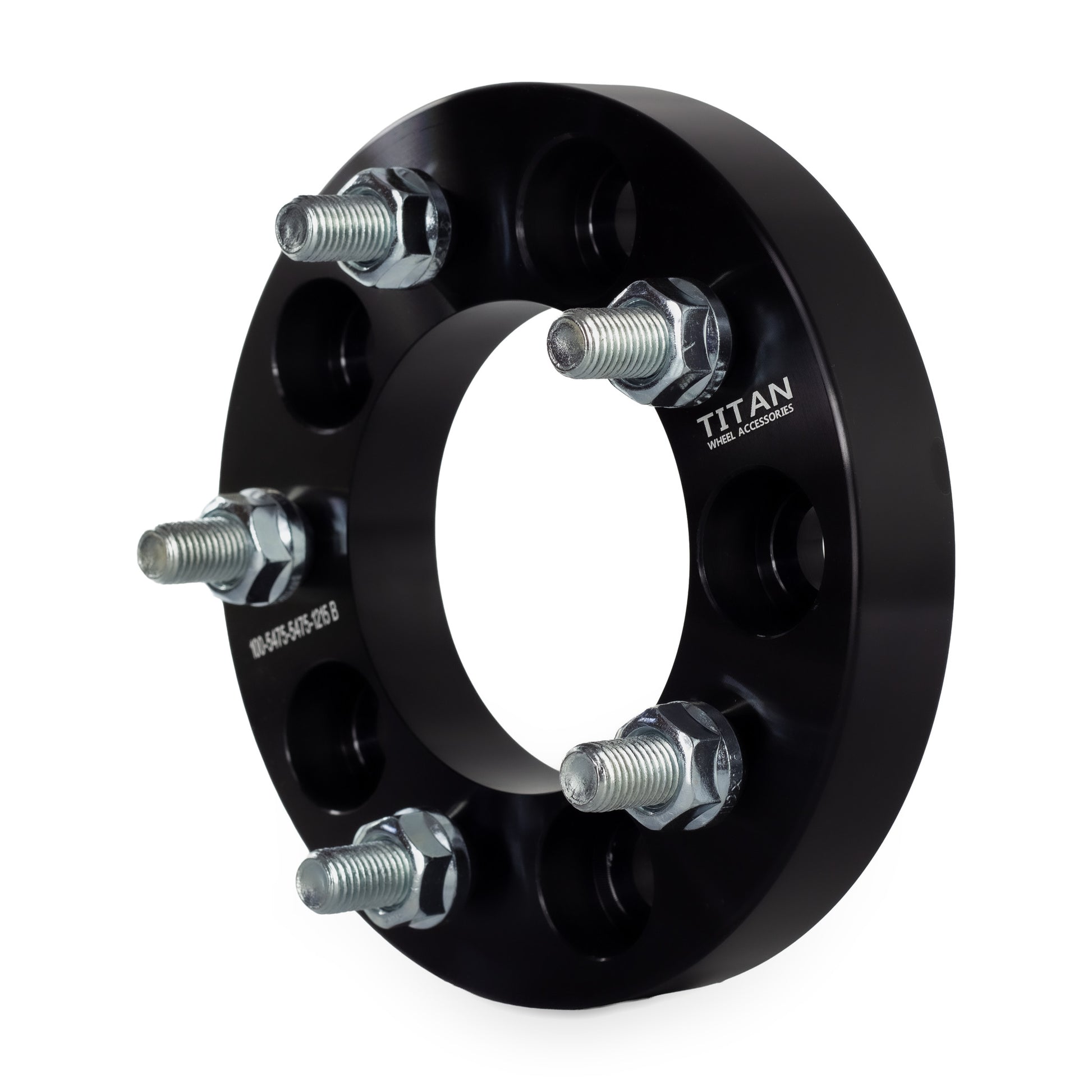

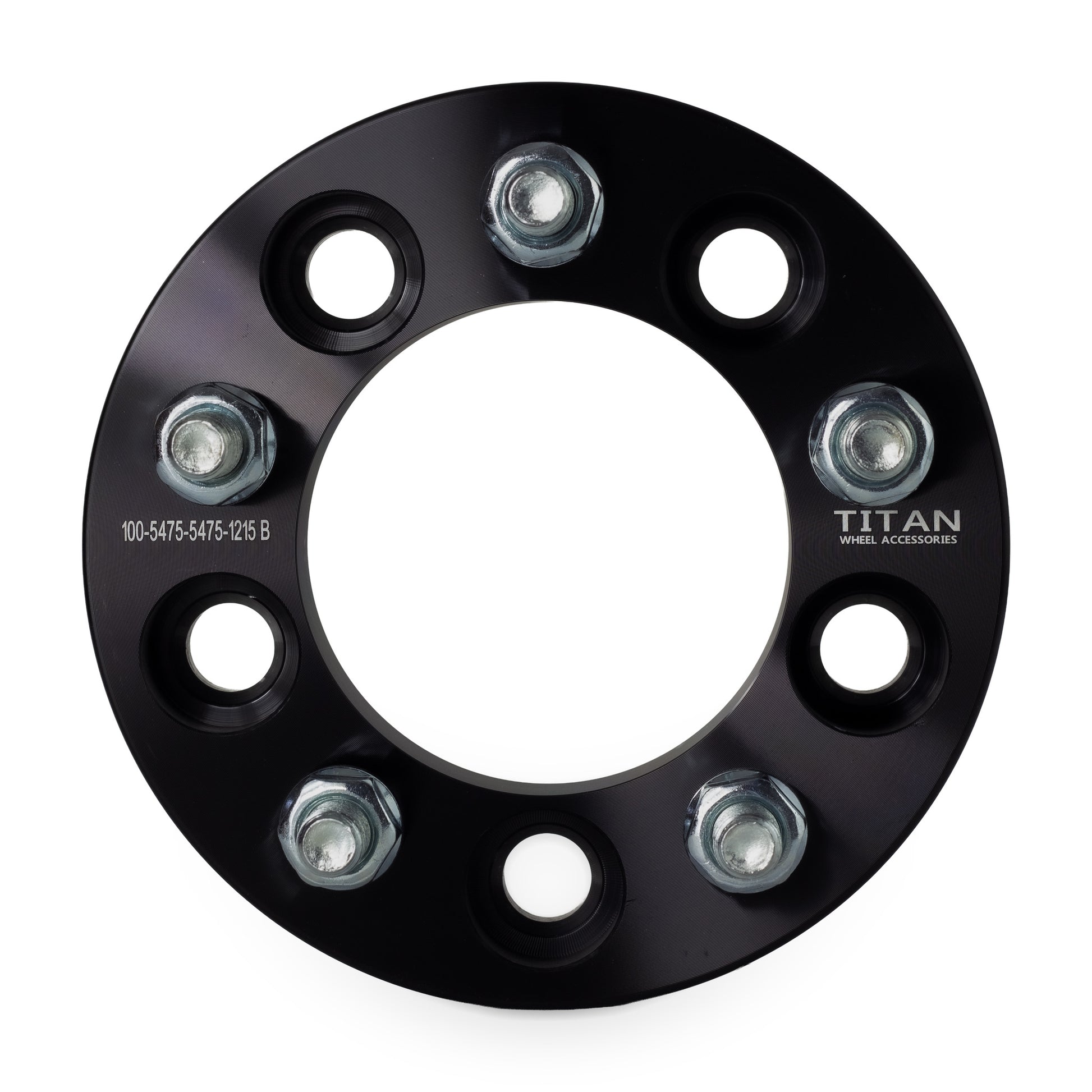

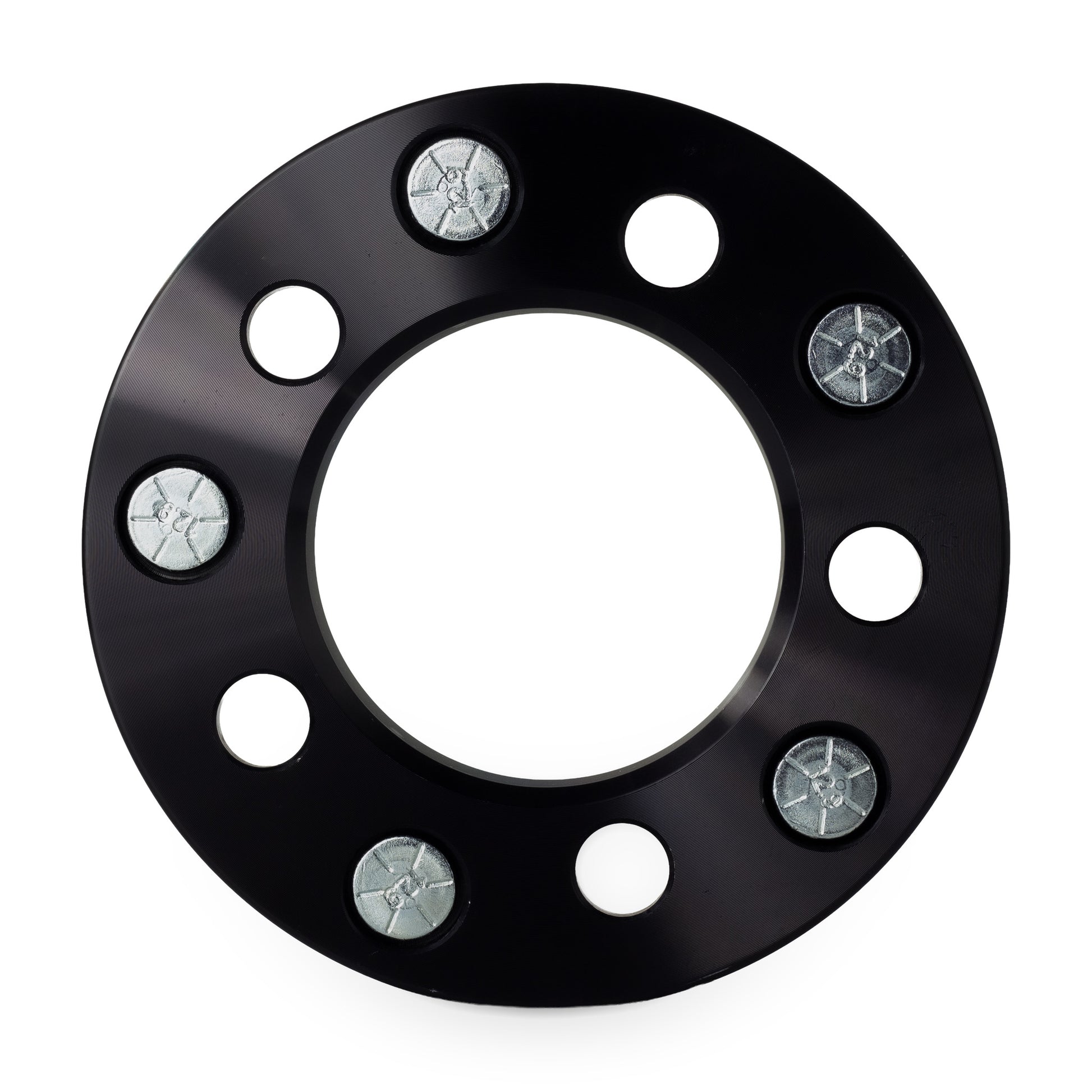

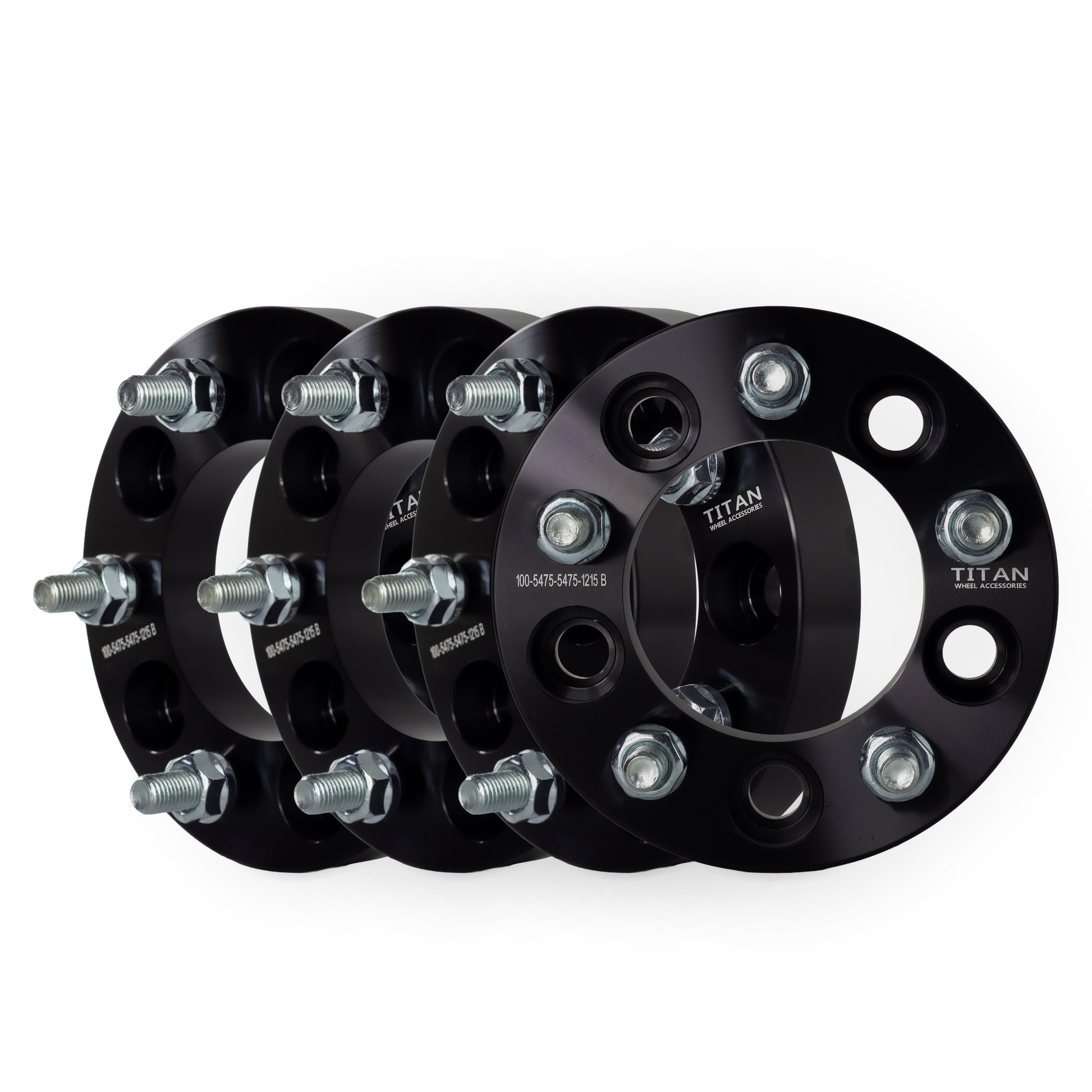

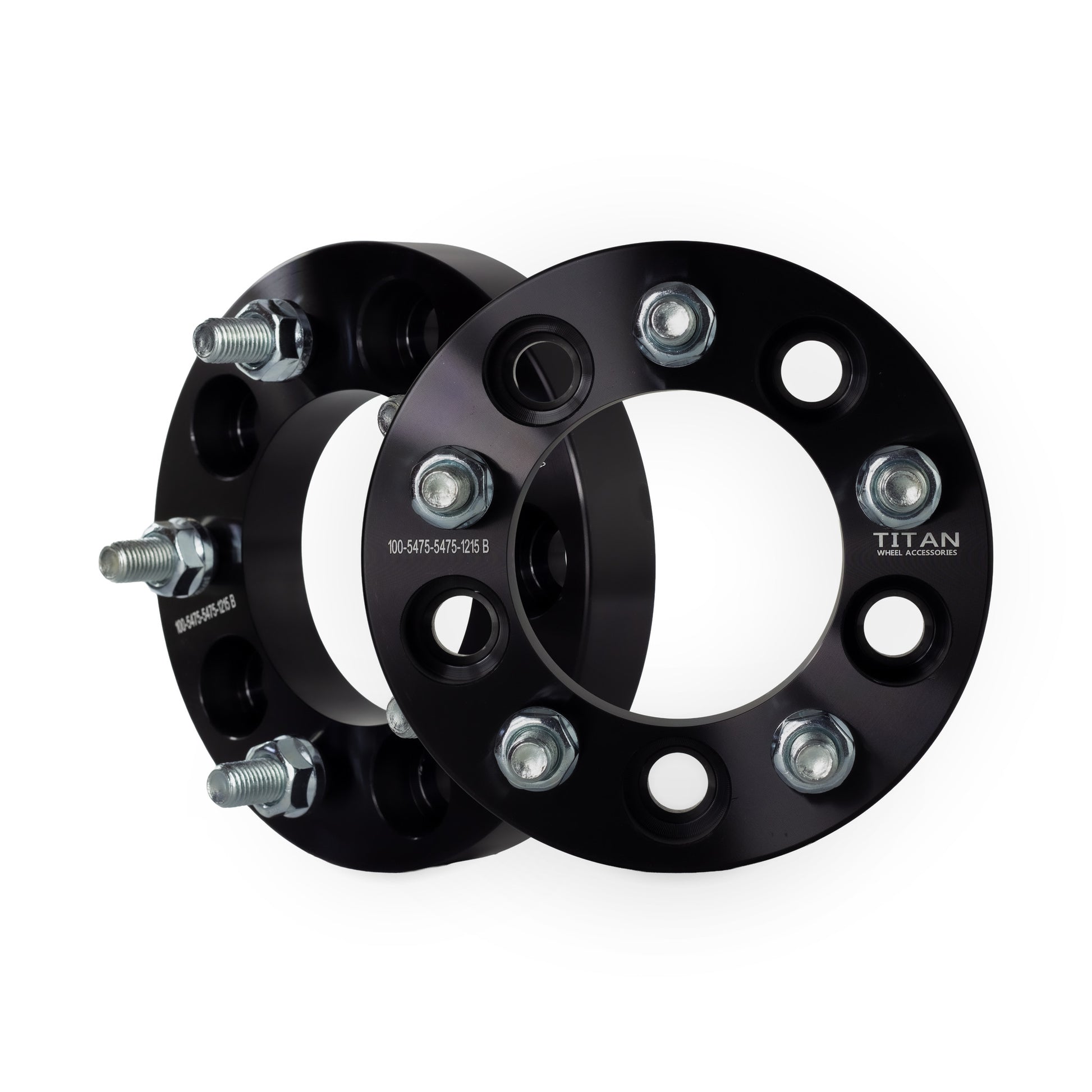

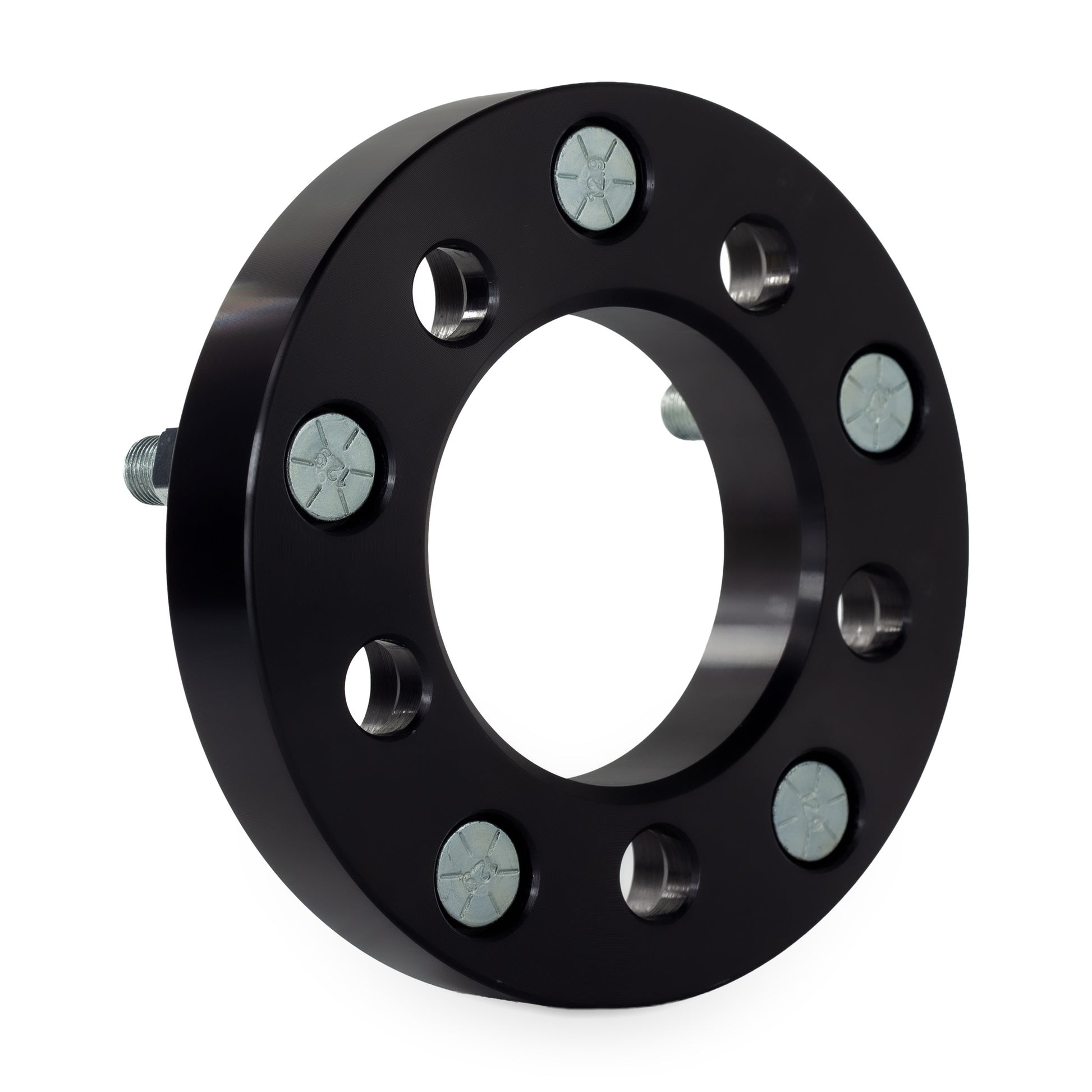

These Titan Wheel Accessories 1 Inch hubcentric wheel spacers are designed with a 5x4.75 (5x120) bolt pattern and 12x1.5 thread pitch for Cadillac XLR, Chevrolet Corvette, Chevy Camaro, S10 Blazer, GMC S15 Jimmy, Sonoma and Pontiac Firebird. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These spacers will improve the stance of your vehicle, providing a more aggressive look while also adding additional clearance for aftermarket brake and suspension parts. They also allow for larger wheel and tire combinations to be installed, giving you more options for customization. These spacers are easy to install and come with all necessary hardware.
Specifications
Specifications
- Vehicle Bolt Pattern: 5x4.75 (5x120)
- Wheel Bolt Pattern: 5x4.75 (5x120)
- Hub Bore: 87.1
- Thread Pitch: 12x1.5

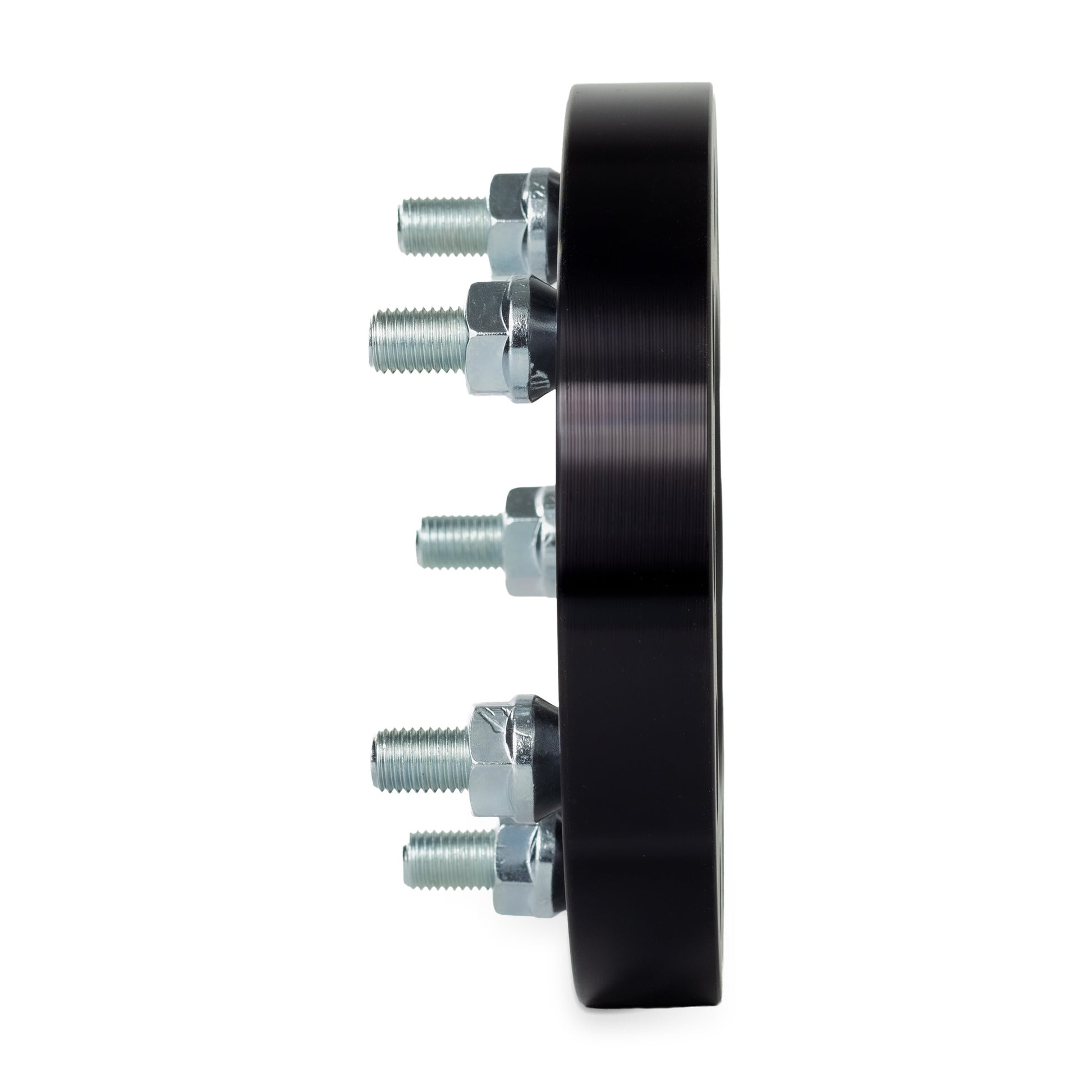

- Thickness: Each spacer measures 1 Inch (25mm) thick
Materials
Materials
- Our spacers are machined from billet T6 6061 aluminum
- Black finish
Vehicle Fitment
Vehicle Fitment
These spacers will bolt up to the following vehicles:
2008-2013 BMW 128
2012-2013 BMW 135
2011-2011 BMW 1M
1992-1999 BMW 318
1998-2000 BMW 323
2001-2006 BMW 325
1996-2000 BMW 328
2007-2011 BMW 328
2001-2007 BMW 330
2007-2012 BMW 335
1989-1996 BMW 525
1997-2003 BMW 525
2004-2007 BMW 525
1989-1996 BMW 528
1997-2010 BMW 528
2008-2010 BMW 528 XDrive
1989-1996 BMW 530
1997-2003 BMW 530
2004-2007 BMW 530
2006-2007 BMW 530 XDrive
2008-2010 BMW 535
2008-2010 BMW 535 XDrive
1989-1996 BMW 540
1997-2003 BMW 540
2004-2005 BMW 545
2006-2010 BMW 550
2006-2010 BMW 650
1989-2001 BMW 740
1989-2001 BMW 750
1992-1997 BMW 840
1992-1997 BMW 850
1995-2013 BMW M3
2001-2003 BMW M5
2006-2010 BMW M5
2006-2010 BMW M6
2013-2015 BMW X1 SDrive
2013-2015 BMW X1 SDrive M Sport
2013-2015 BMW X1 XDrive
2013-2015 BMW X1 XDrive M Sport
1996-2002 BMW Z3
2003-2009 BMW Z4
2007-2008 BMW Z4 M
2010-2016 BMW Z4 SDrive
2004-2009 Cadillac XLR
2006-2009 Cadillac XLR-V
1983-2005 Chevrolet Blazer
1982-2002 Chevrolet Camaro
1984-2019 Chevrolet Corvette
1982-2004 Chevrolet S-10
1995-2002 GMC Jimmy
1995-2004 GMC Sonoma
1982-2002 Pontiac Firebird
Vehicle fitment information applies only to the vehicle's hub.
View full detailsInstallation Information
- Please ensure that the your vehicle has the same studs as the adapters, otherwise additional lug nuts WILL BE required
- Make sure that all lug nuts get a full 6-8 turns when tightening. Failure to do so, can result in damage to your vehicle.
- Installation needs to be performed by a trained professional
It's Possible that your OEM Studs are longer than the spacer is thick, if so you have a few options:
- Your lugs studs will need to be shortened by grinding them down or you can replace your OEM lug studs with shorter studs.
- If your wheels have sufficient sized and placed pockets machined in the backside, between the mounting holes, then you should not need to modify your factory wheel studs.
- Always ensure that there is no gap between the spacer and the back of the wheels.
-
