Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — set of 4

1.5" 8x6.5 to 8x170 Wheel Adapters for Ford F250 F350 | 14x1.5 Studs

Set of 4
1.5"
$168.95
Skip to product information
Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — set of 4

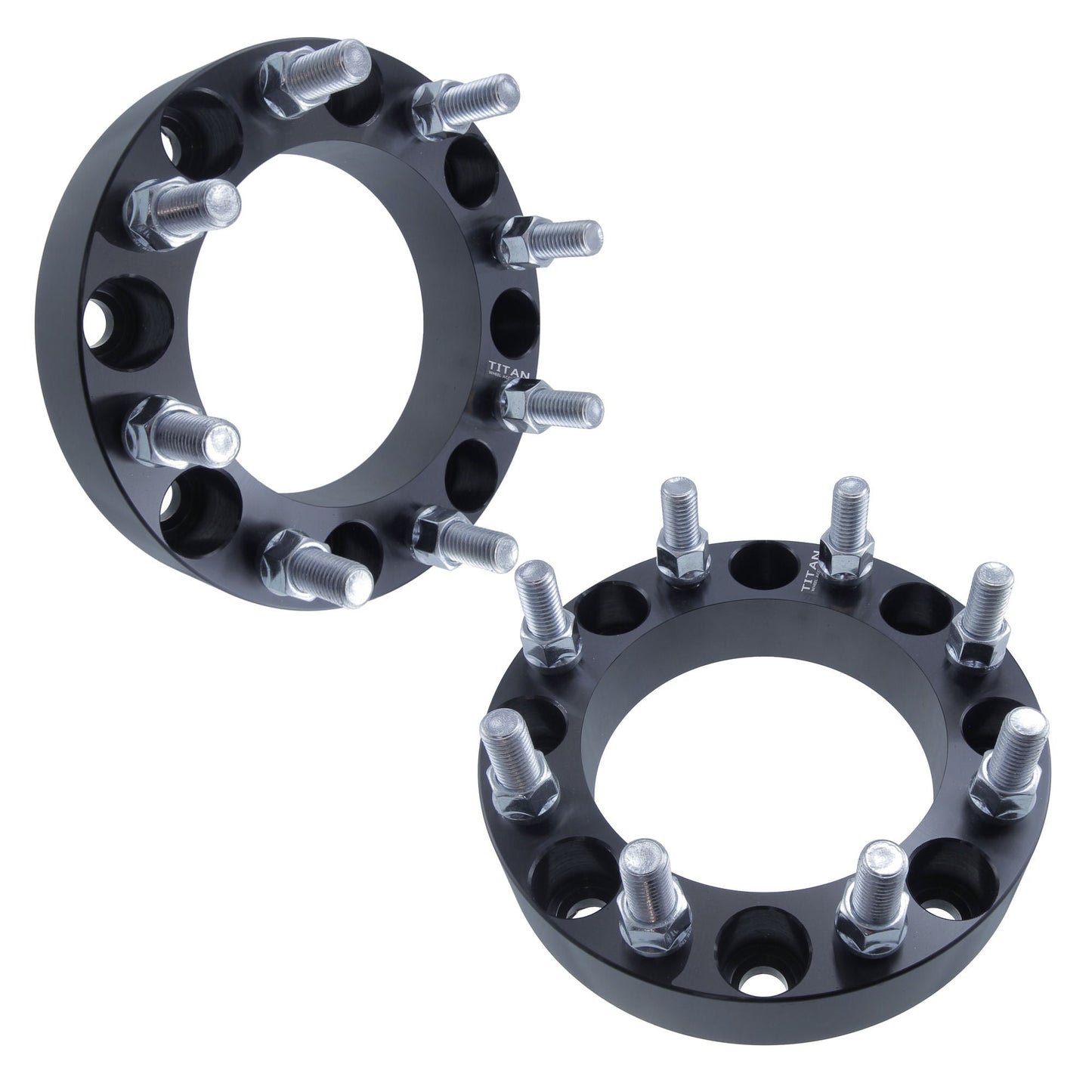

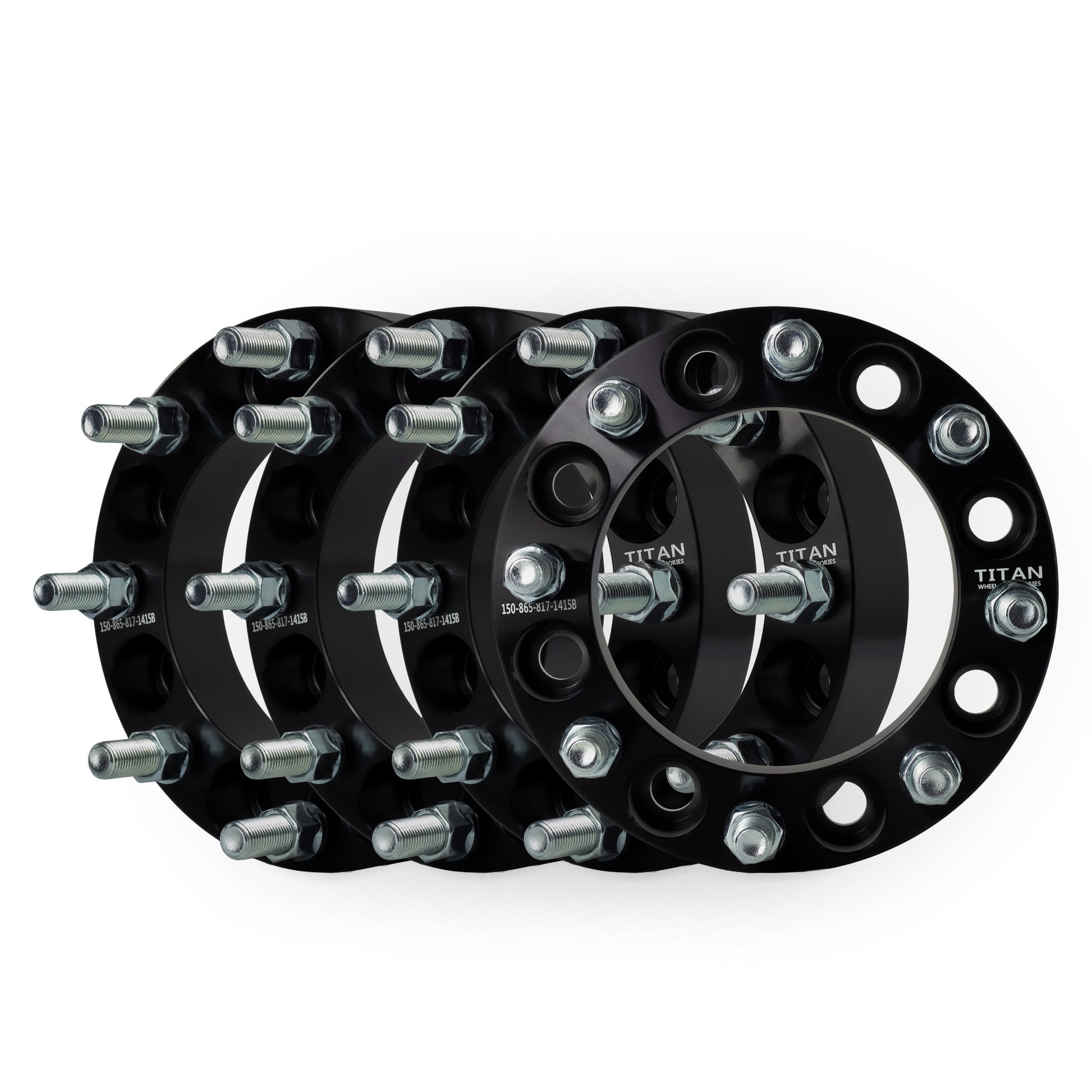

  • Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — set of 4

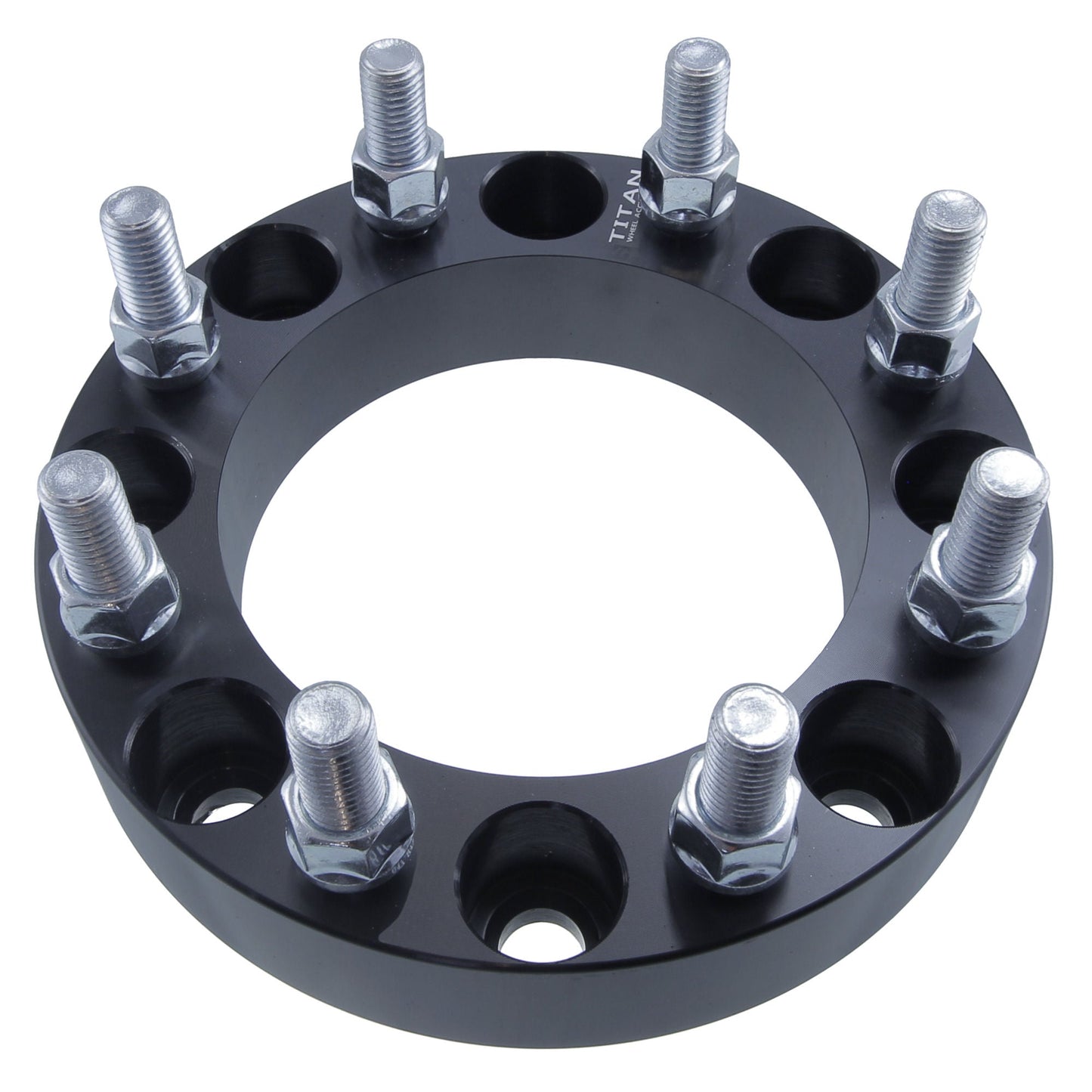

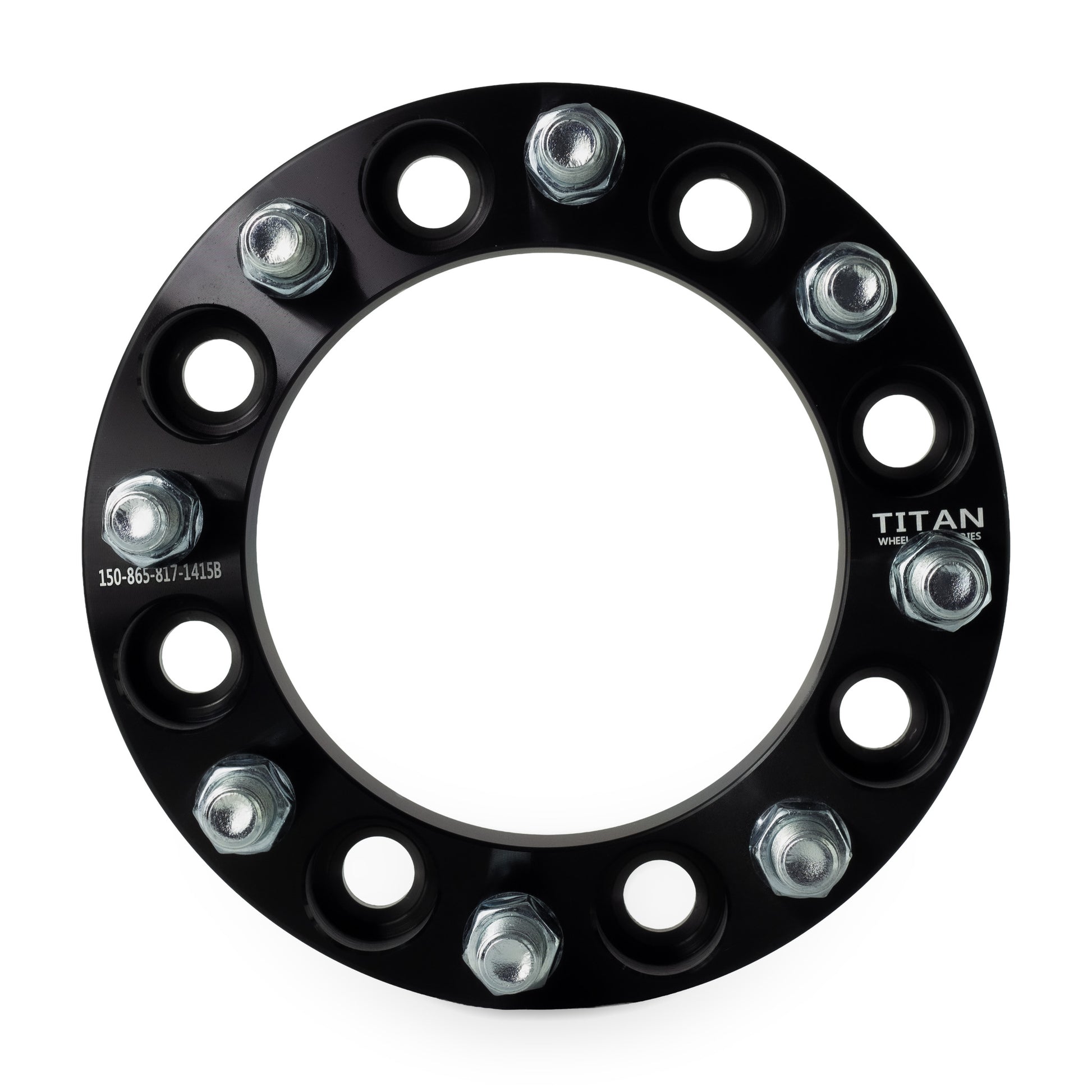

  • Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — front view
  • Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — side view

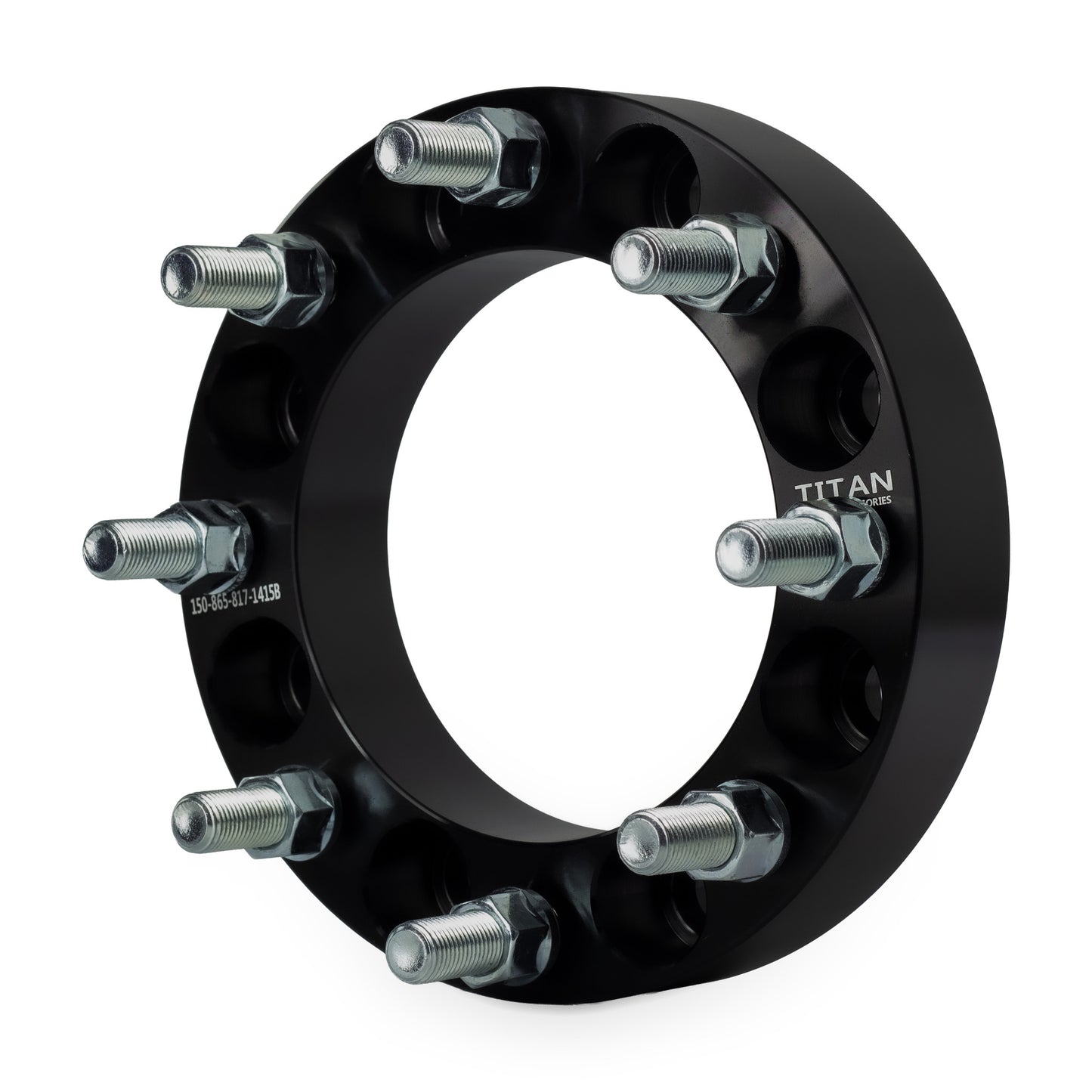

  • Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — rear three-quarter view
  • Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — rear view

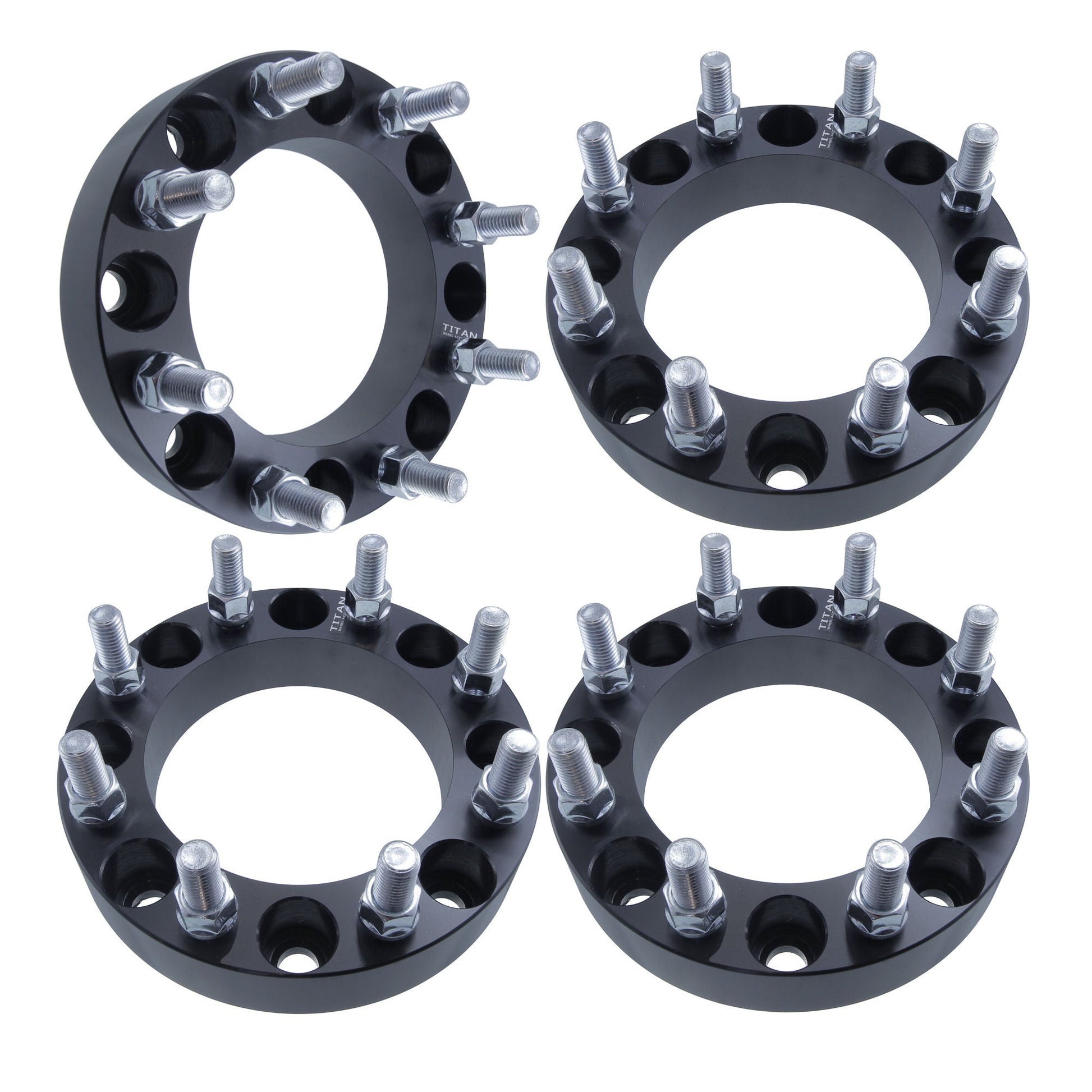

  • Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — set of 4

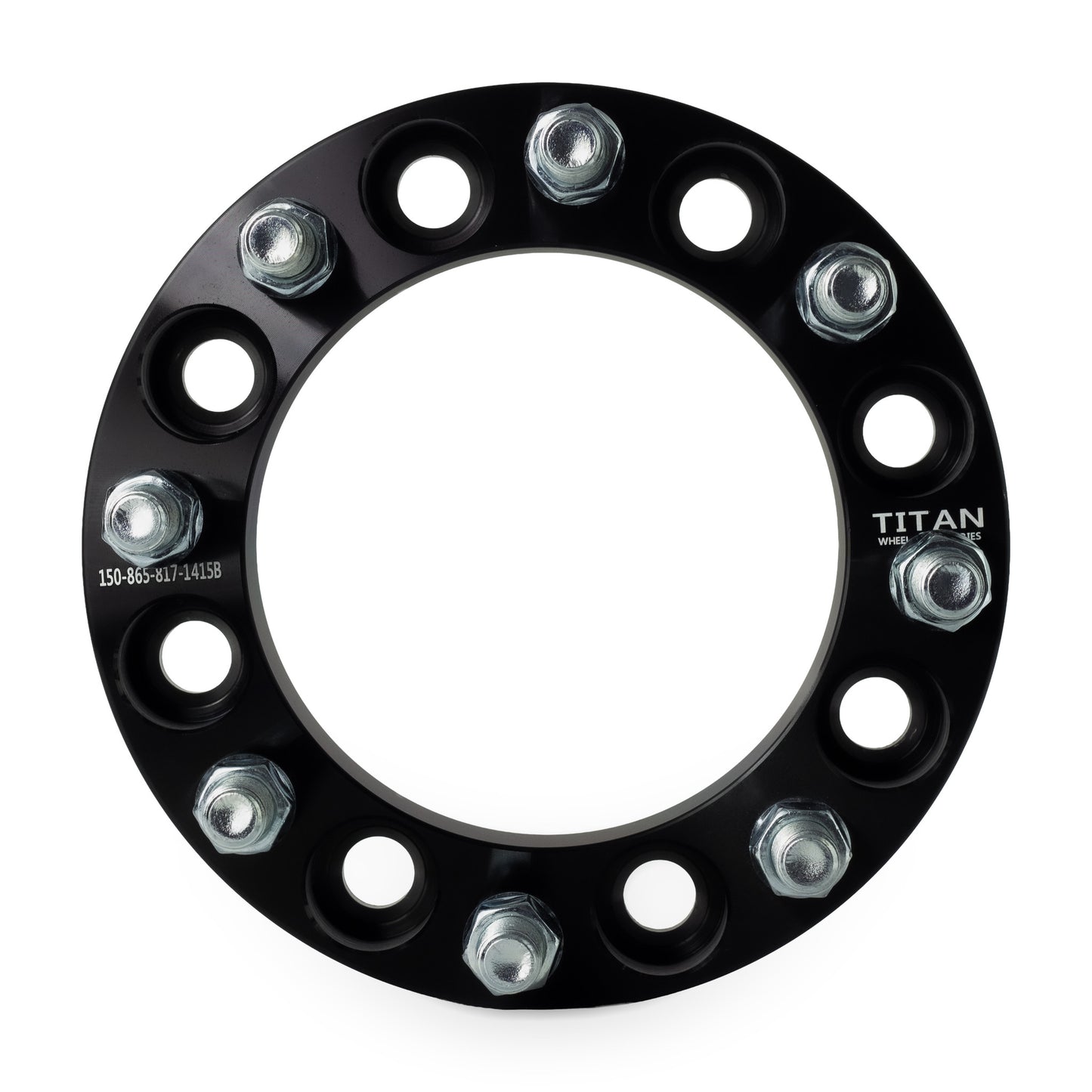

  • Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — front view

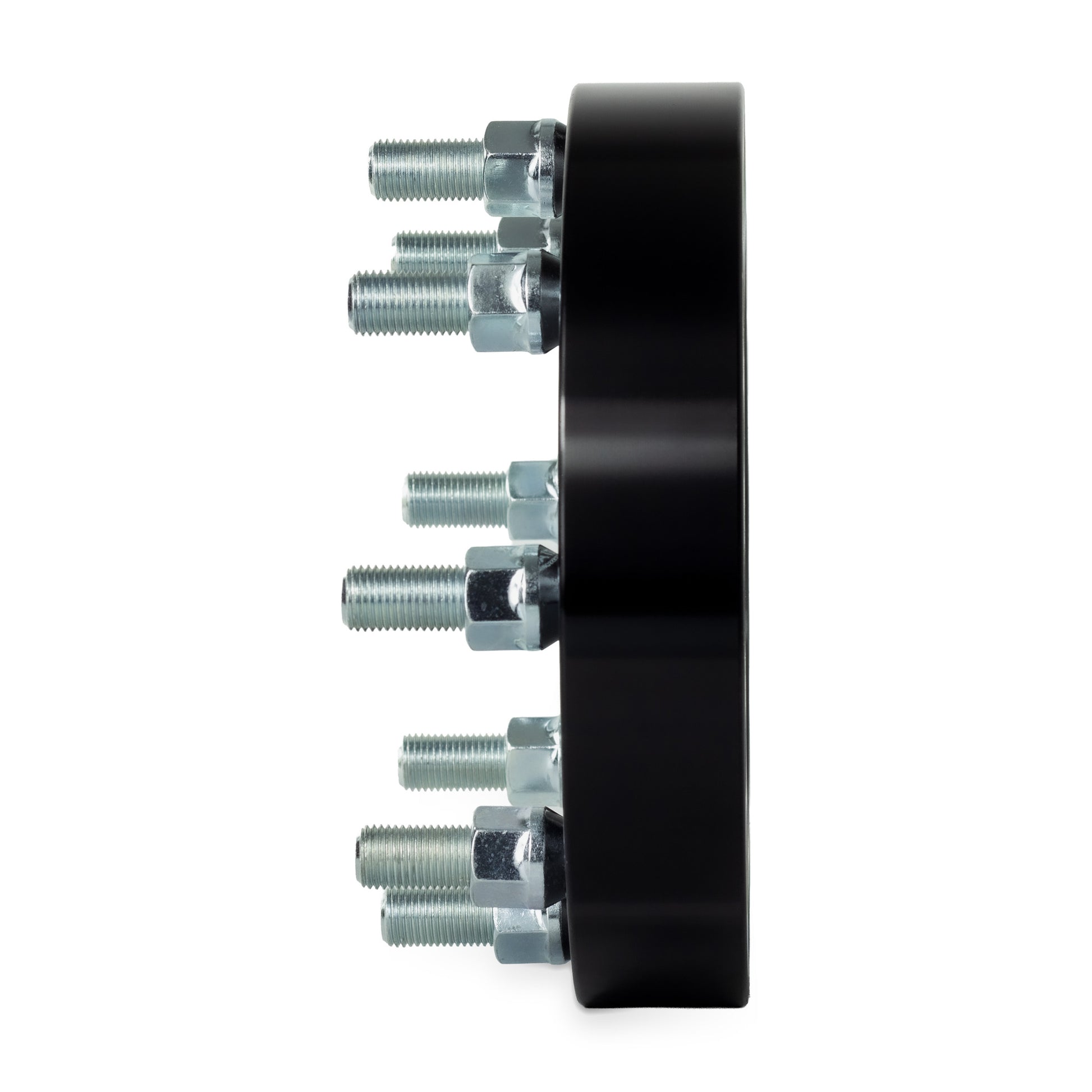

  • Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — side view

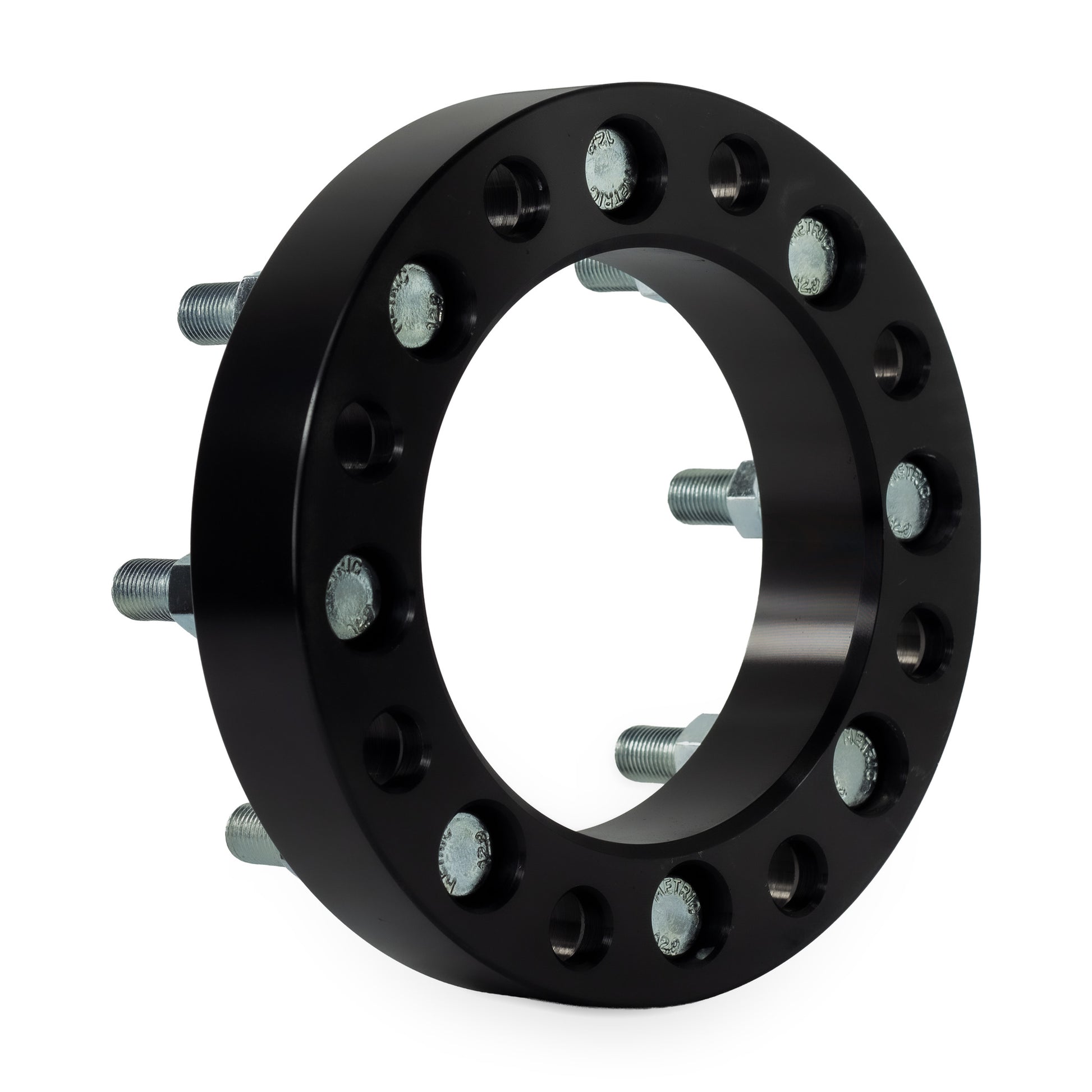

  • Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — rear three-quarter view

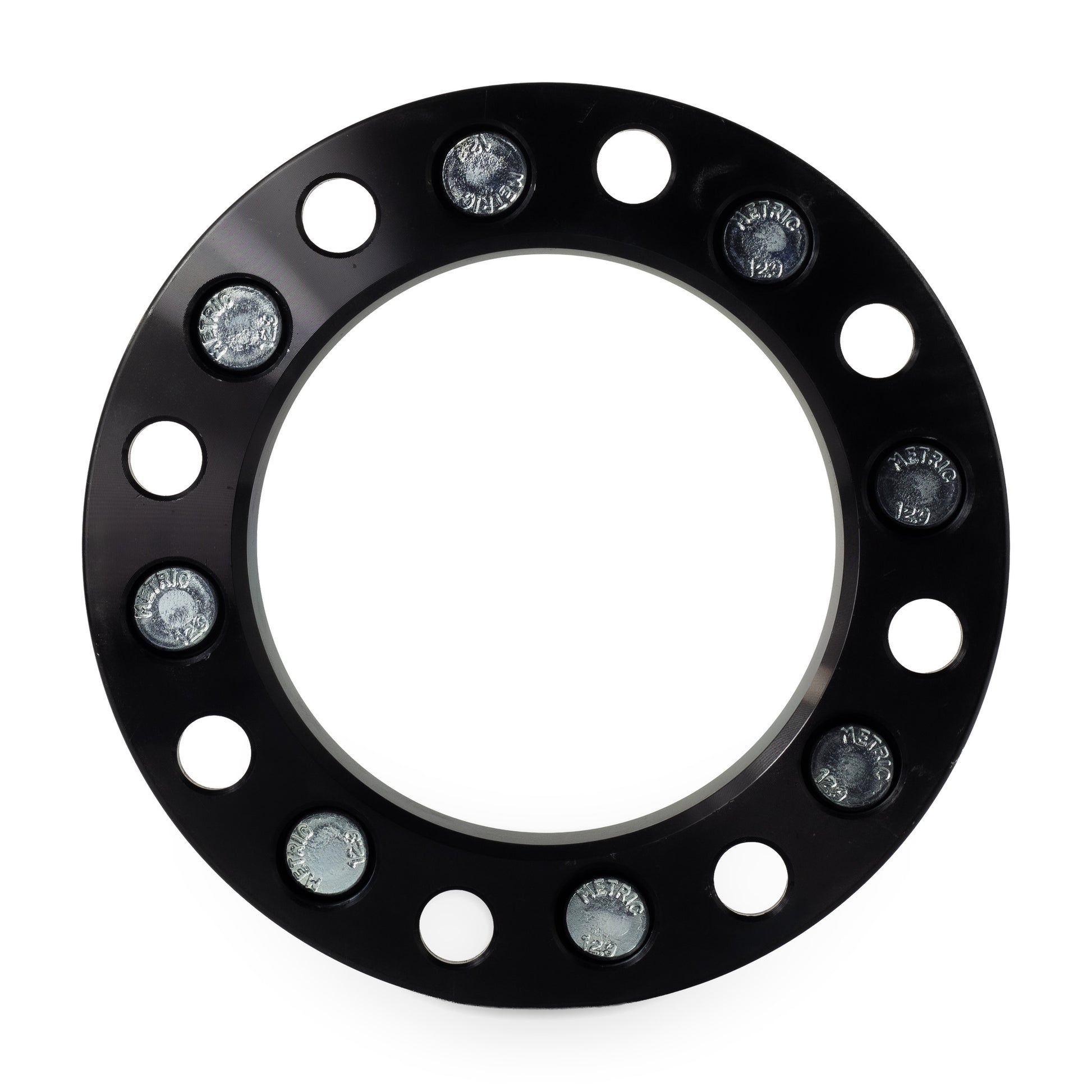

  • Open Box: 1.5" Titan Wheel Adapters | 8x6.5 to 8x170 | 14x1.5 — rear view
1.5" 8x6.5 to 8x170 Wheel Adapters for Ford F250 F350 | 14x1.5 Studs
TITAN WHEEL ACCESSORIES SKU 150-865-817-1415B-Z1-4

1.5" 8x6.5 to 8x170 Wheel Adapters for Ford F250 F350 | 14x1.5 Studs

Fits bolt pattern: 8x6.5 → 8x170

In Stock
$168.95

$42.23 each · set of 4

Flat $18.95 shipping anywhere in the US

  • 1.5"
  • 8×6.5
  • Lugcentric
  • Bolt-on
Quantity
  • 30-day returns
  • Hardware included
  • Lifetime warranty

OVERVIEW

BUILT FOR THE PLATFORM

These 1.5 Inch Titan Wheel Accessories 8x6.5 to 8x170 wheel adapters are designed to allow you to fit wheels with a 8x170 bolt pattern on a vehicle with a 8x6.5 bolt pattern. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These adapters are easy to install and come with all necessary hardware. They are perfect for anyone looking to change the look of their vehicle or for those who want to use different wheels with a different bolt pattern.

  • 1.5"
  • 8×6.5
  • Lugcentric
  • Bolt-on

HUBCENTRIC VS. LUGCENTRIC

Hubcentric

The spacer's center bore matches your hub, so the wheel is centered on the hub instead of by the lug nuts. That precise centering helps prevent the vibration an off-center wheel causes.

Lugcentric

The lug nuts themselves center the wheel. Common on universal-fit spacers; properly torqued lug nuts keep the wheel true.

This product is lugcentric.

THE NUMBERS

FULL SPEC SHEET

TypeWheel Adapters
Bolt Pattern 8x6.5 → 8x170
Hub Bore130.0mm
Thickness1.5"
Thread Pitch14x1.5
CenteringLugcentric
Install TypeBolt-on
FinishBlack
Hardware Included Yes
Net Weight 22.0 lb

IN THE BOX

WHAT'S IN THE BOX

  • 4× 1.5" 8x6.5 to 8x170 Wheel Adapters for Ford F250 F350 | 14x1.5 Studs
  • ✓ Open-ended lug nuts to bolt the spacers to your hub — your own lug nuts hold the wheel on

FROM THE GARAGE

WHAT DRIVERS SAY

Customer Reviews

Based on 12 reviews
83%
(10)
0%
(0)
0%
(0)
0%
(0)
17%
(2)
i
its blitz
Fitment

Does not fit 07 ram 2500. Studs are too thick for adapter

My apologies for any confusion. It does state on the website for the product purchased:
It's Possible that your OEM Studs are longer than the spacer is thick, if so you have a few options:

- Your lugs studs will need to be shortened by grinding them down or you can replace your OEM lug studs with shorter studs.

- If your wheels have sufficient sized and placed pockets machined in the backside, between the mounting holes, then you should not need to modify your factory wheel studs.

- Always ensure that there is no gap between the spacer and the back of the wheels.

N
Neil Evans
Wheel adapters

Fast shipping and exactly as described. Will buy from again

j
jimmy Mendez
shipped quickly and fit perfectly

I had looked around to several places to find the correct adapters for my customer.These where the best deal I had found. They where shipped out quickly and fit the specifications perfectly. All around an excellent experience.

W
Whyatt

Good quality was a little questionable about how cheap they were but they hold nice and look good

T
Timothy Morris
5 stars but…

The lug nuts that are shipped with these are not the ones needed to install. To install you need the small head on a 9/16” nut to install them on 8 x 6.5 I love the adapters quality and shipment was perfect. I had to order the lug nuts needed to install

123

THE GRID

SEEN ON REAL BUILDS

ANSWERS

QUESTIONS, ANSWERED

The questions drivers ask most about this product — answered up front.

SEE ALL FAQ
Will these fit my exact vehicle?
Check the spec sheet above for bolt pattern and hub bore, or use the fitment finder to confirm against your year, make and model.
Do I need an alignment after installing?
No alignment change is required for the spacer itself, though we recommend a routine check if you're also changing offset or ride height.
What torque should I use?
See the Installation section above for the torque spec sheet included with this product — never exceed 110 ft-lbs.

INSTALLATION

Bolt-On Wheel Spacers and Adapters

Before you install

If your factory wheel studs are longer than the spacer is thick, they must be trimmed or replaced with shorter studs — unless the wheel has relief pockets deep and wide enough to clear them. Never install a wheel where the factory studs touch the back of it. The wheel must seat completely flat against the face of the spacer.

Full installation guide

Torque Specs

All lug nuts used to install wheel spacers must be torqued by hand using a torque wrench. The use of power tools to install lug nuts can cause them to be over-torqued or can cause damage to the spacers and studs.

  • Maximum torque: 110 ft-lbs. If the vehicle manufacturer's torque specification is under 110 ft-lbs, follow that specification.
  • Lug nuts securing the adapters to the hub and the wheels to the adapters: vehicle manufacturer's specification, not to exceed 110 ft-lbs.

Re-Torque Schedule

  • After driving with the new spacers or adapters for 25 miles, check the torque on all lug nuts again.
  • The wheels will need to be removed to check the lug nuts securing the spacer to the hub on bolt-on spacers and adapters.
  • It is always a good idea to check torque on all lug nuts periodically after installation, and immediately if a new vibration is noticed.

Never exceed 110 ft-lbs — use the OEM spec if it's lower.

Failure to correctly install the product may result in the loss of wheel(s) while driving. Proper installation is to be performed by a trained technician with sufficient knowledge of these products. Titan Wheel Accessories products are intended for off-road or competition use only.

SAME DAY SHIPPING

Orders placed before 3:00 PM EST will be shipped out same day. Weekend and Holiday orders will be shipped promptly on the following business day.

QUESTIONS?

Feel free to reach out to us with any questions. Our staff is highly trained and happy to help you find the correct product for your vehicle. You can email us at info@titanwheelaccessories.com
