Titan Wheel Accessories

1.5" (38mm) Titan Wheel Spacers for Ram 1500 | 5x5.5 (5x139.7) | 77.8 Hubcentric |14x1.5 Studs |

1.5" (38mm) Titan Wheel Spacers for Ram 1500 | 5x5.5 (5x139.7) | 77.8 Hubcentric |14x1.5 Studs |

Regular price $119.95 USD
Regular price $137.94 USD Sale price $119.95 USD
Sale Sold out

Space out your wheels for a more aggressive stance or increased suspension and brake clearance.

These wheel spacers come with everything needed for full installation.

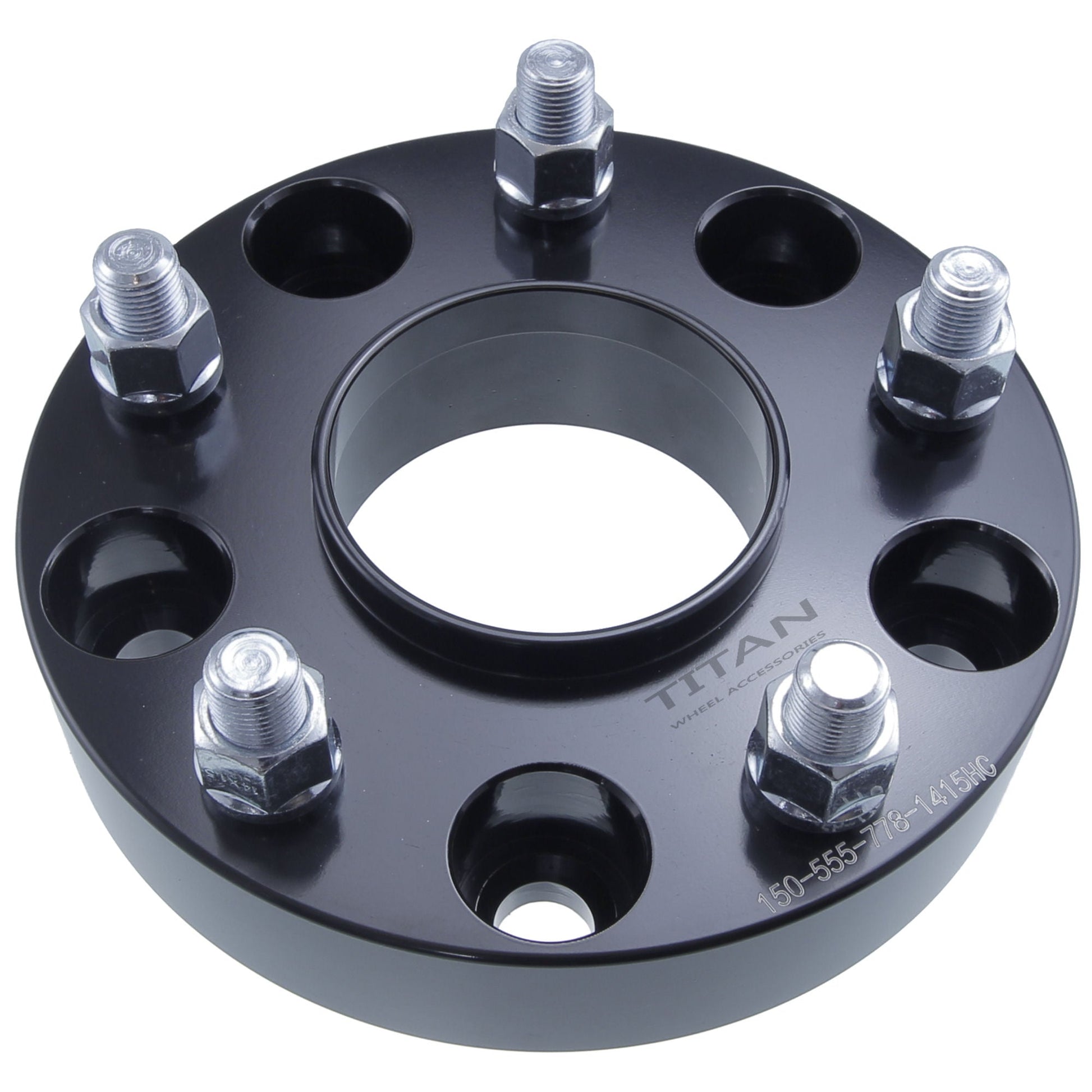

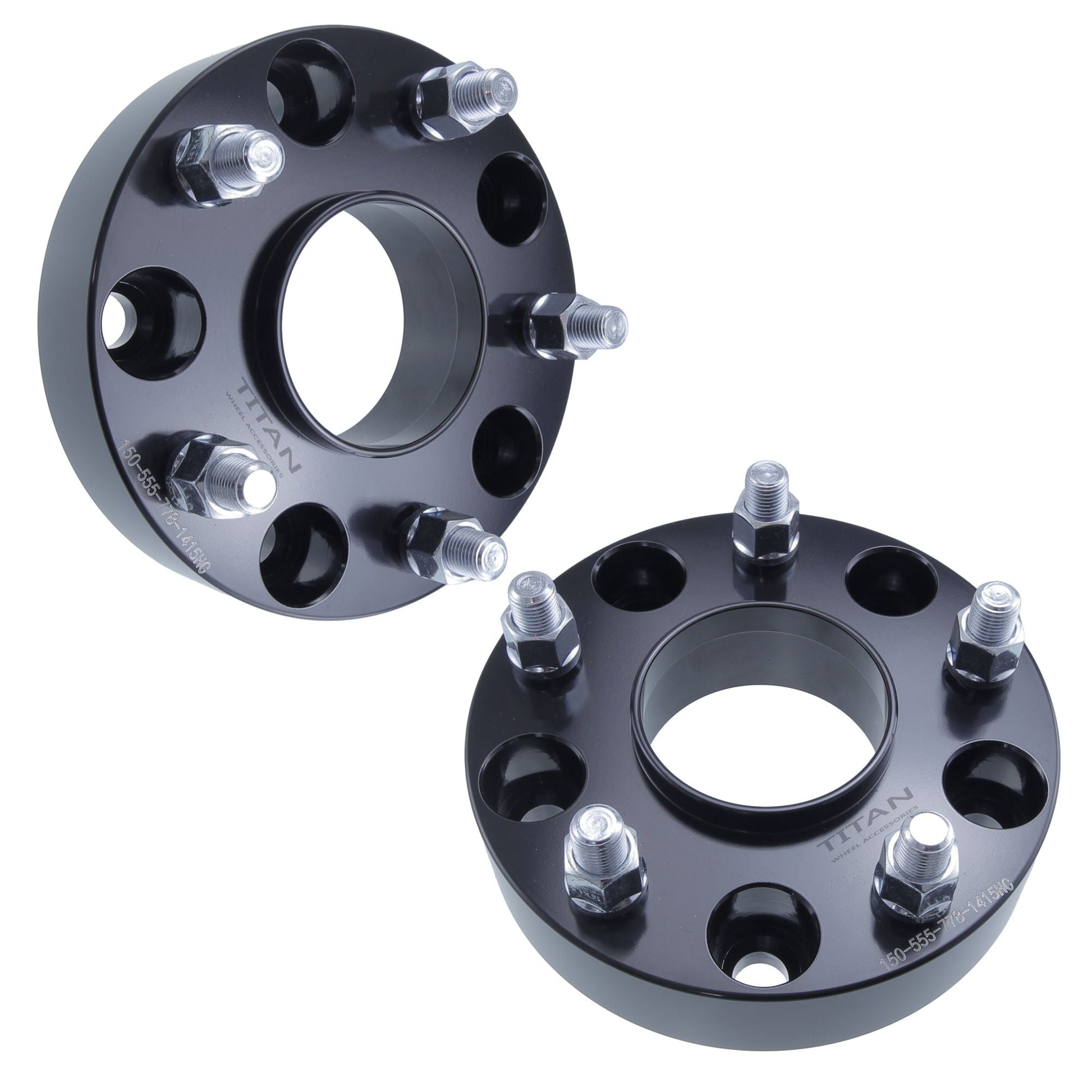

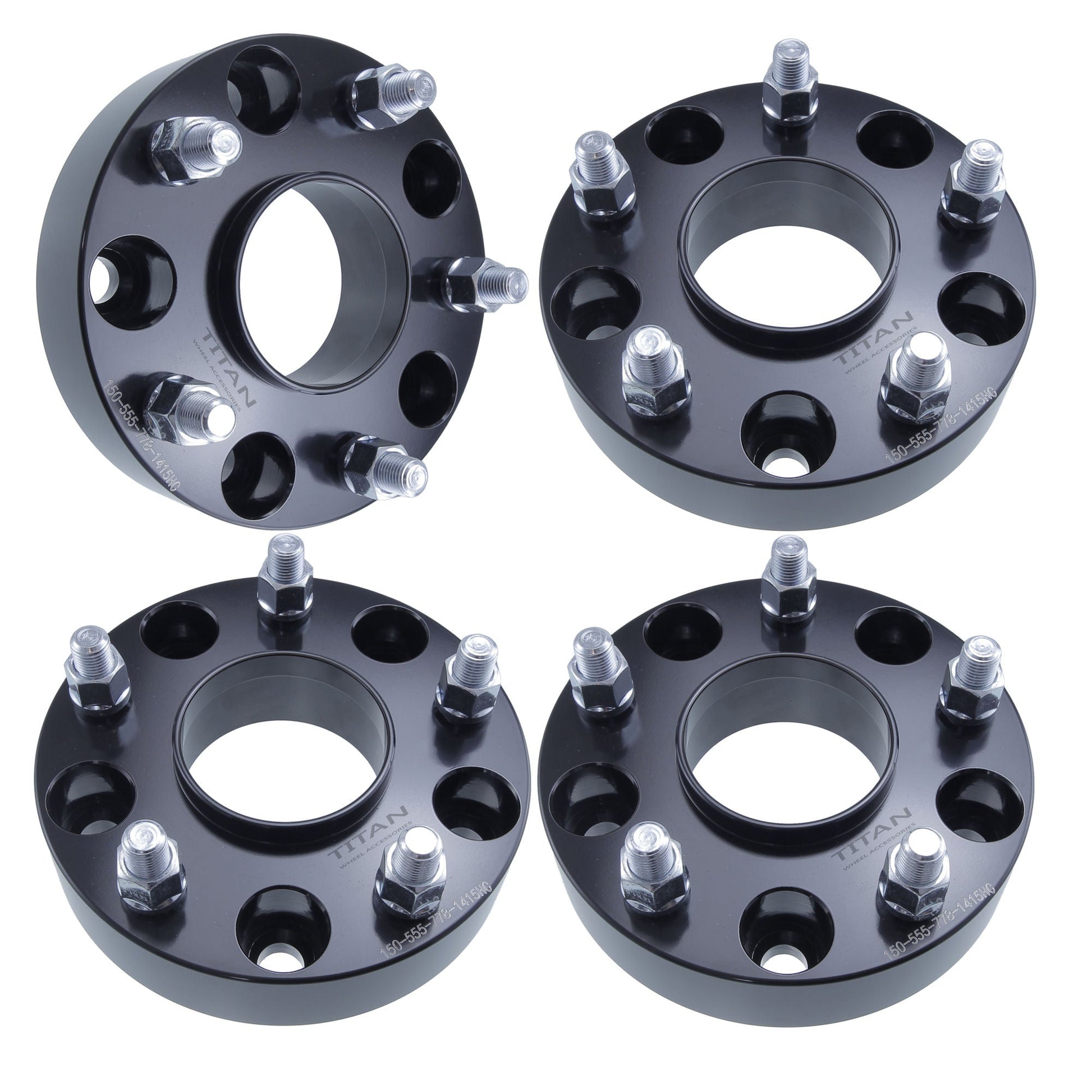

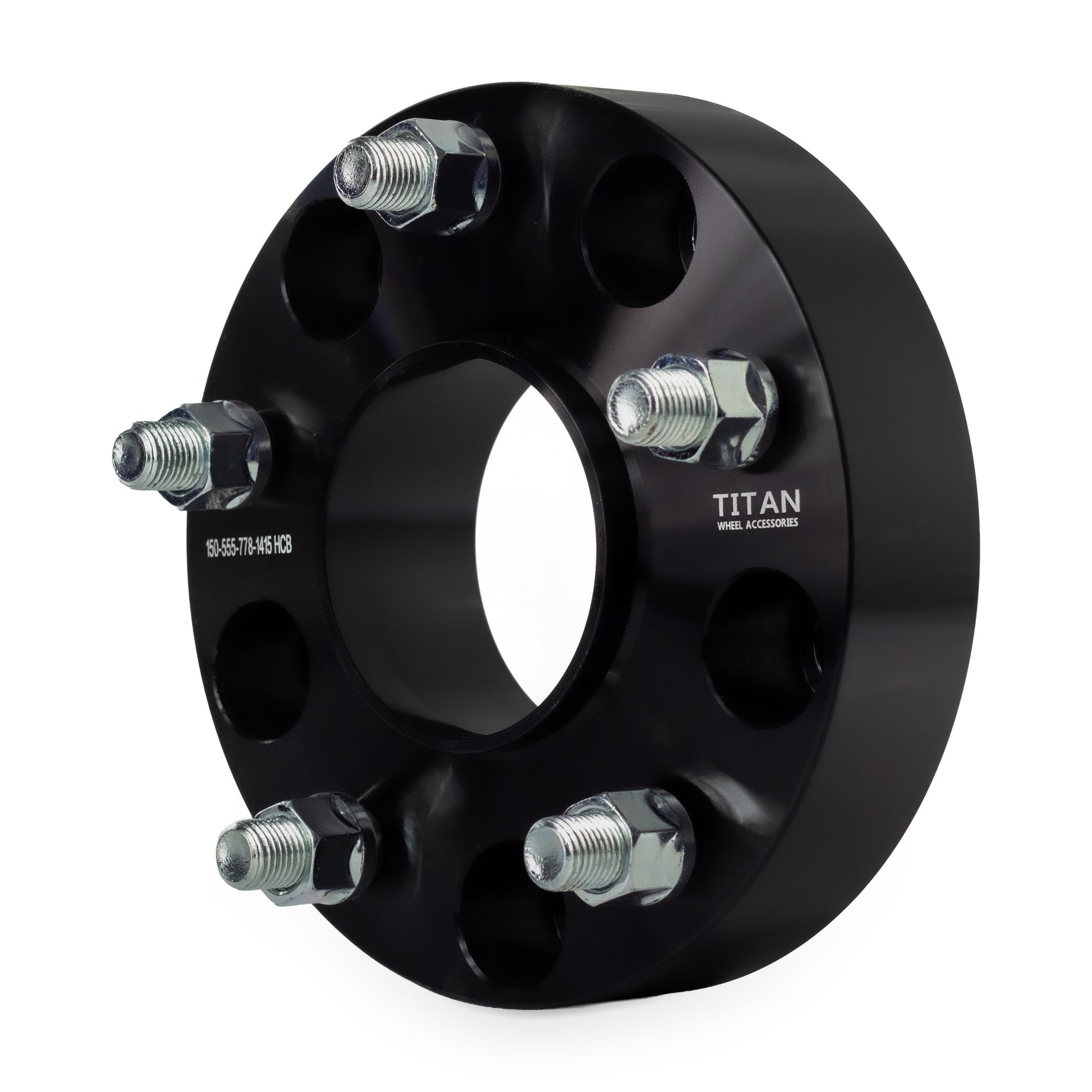

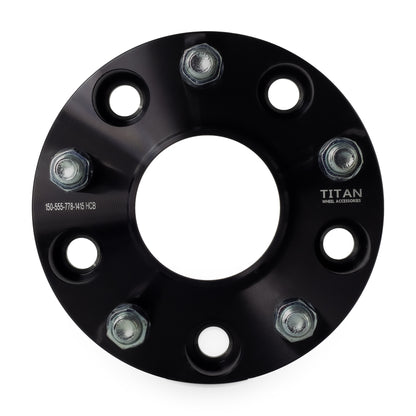

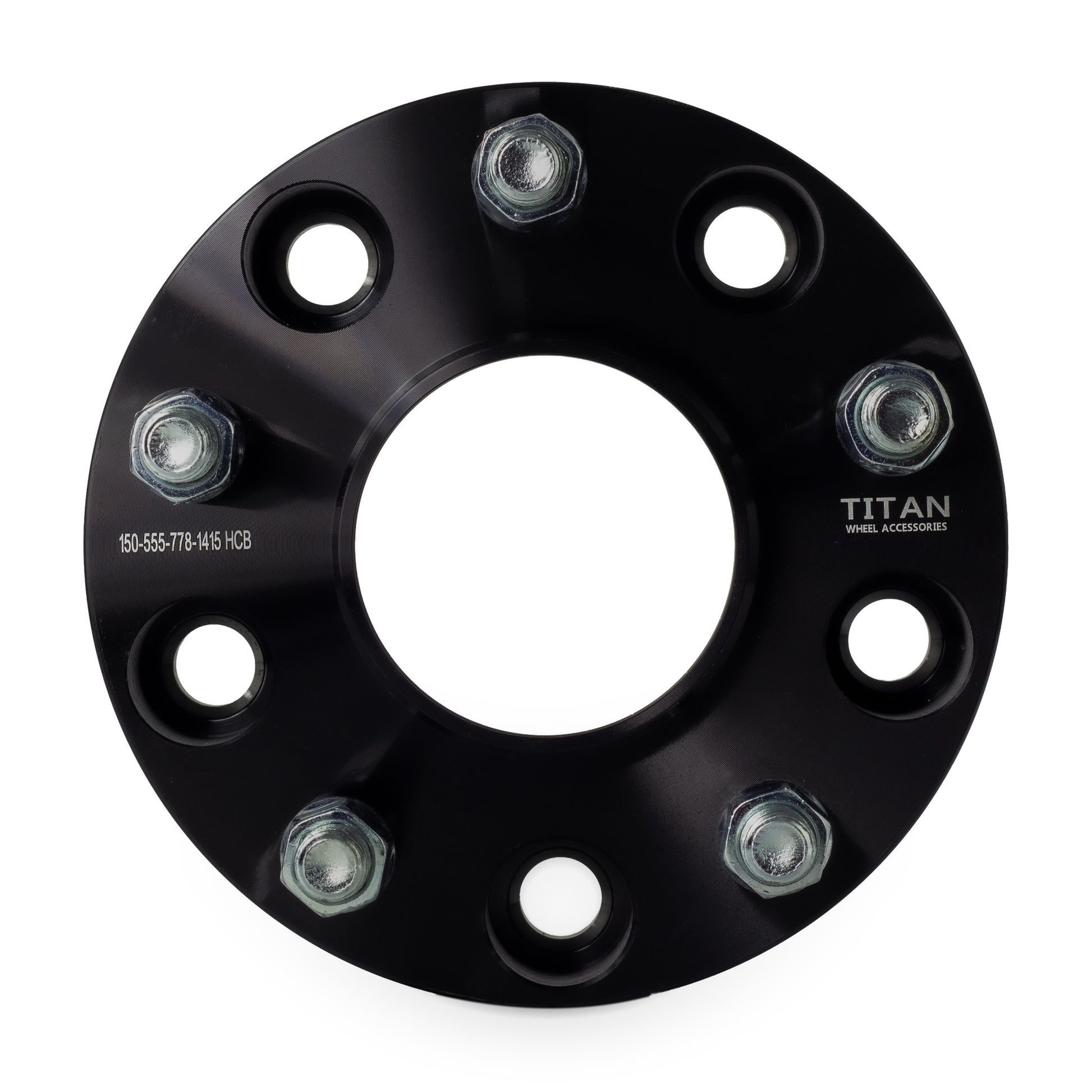

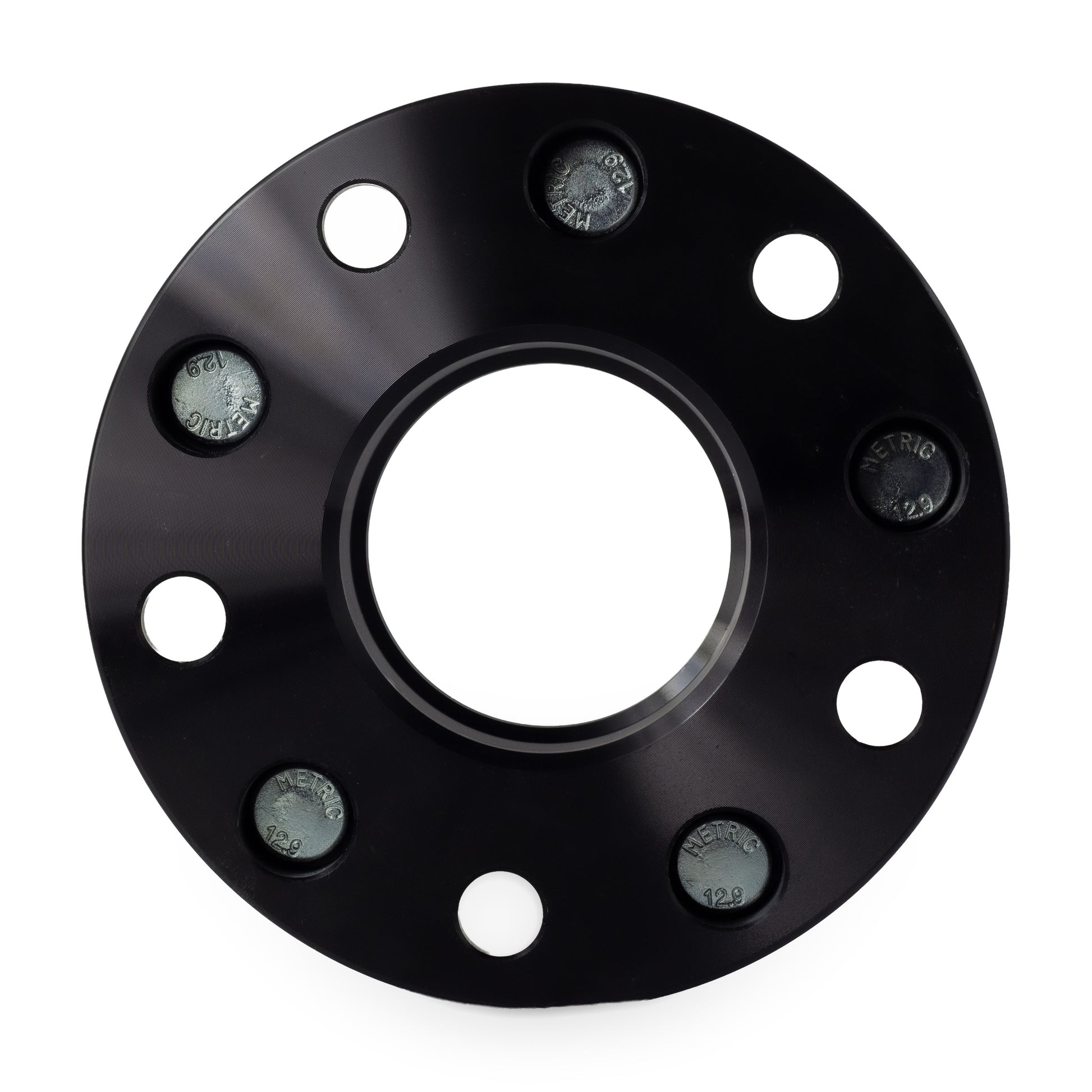

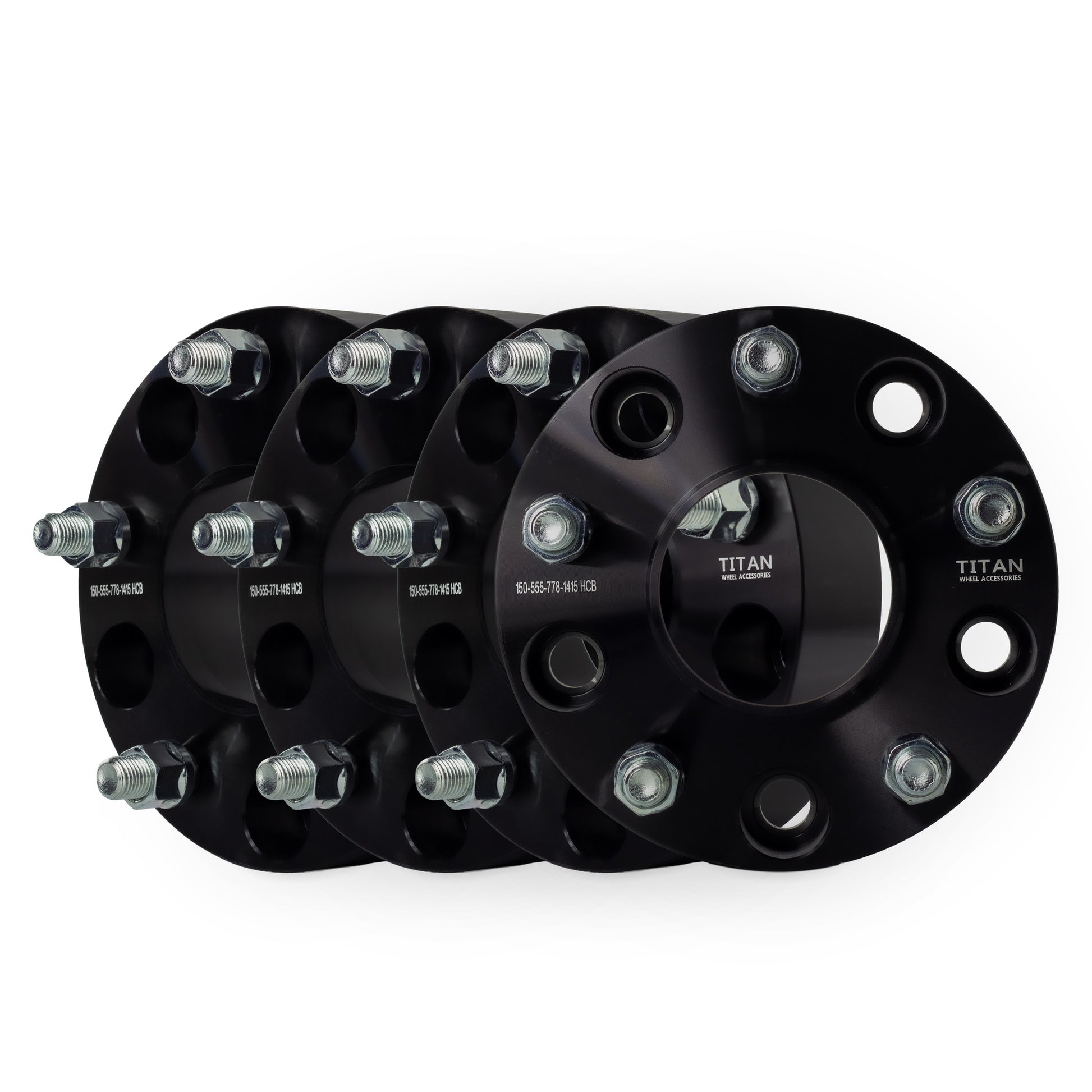

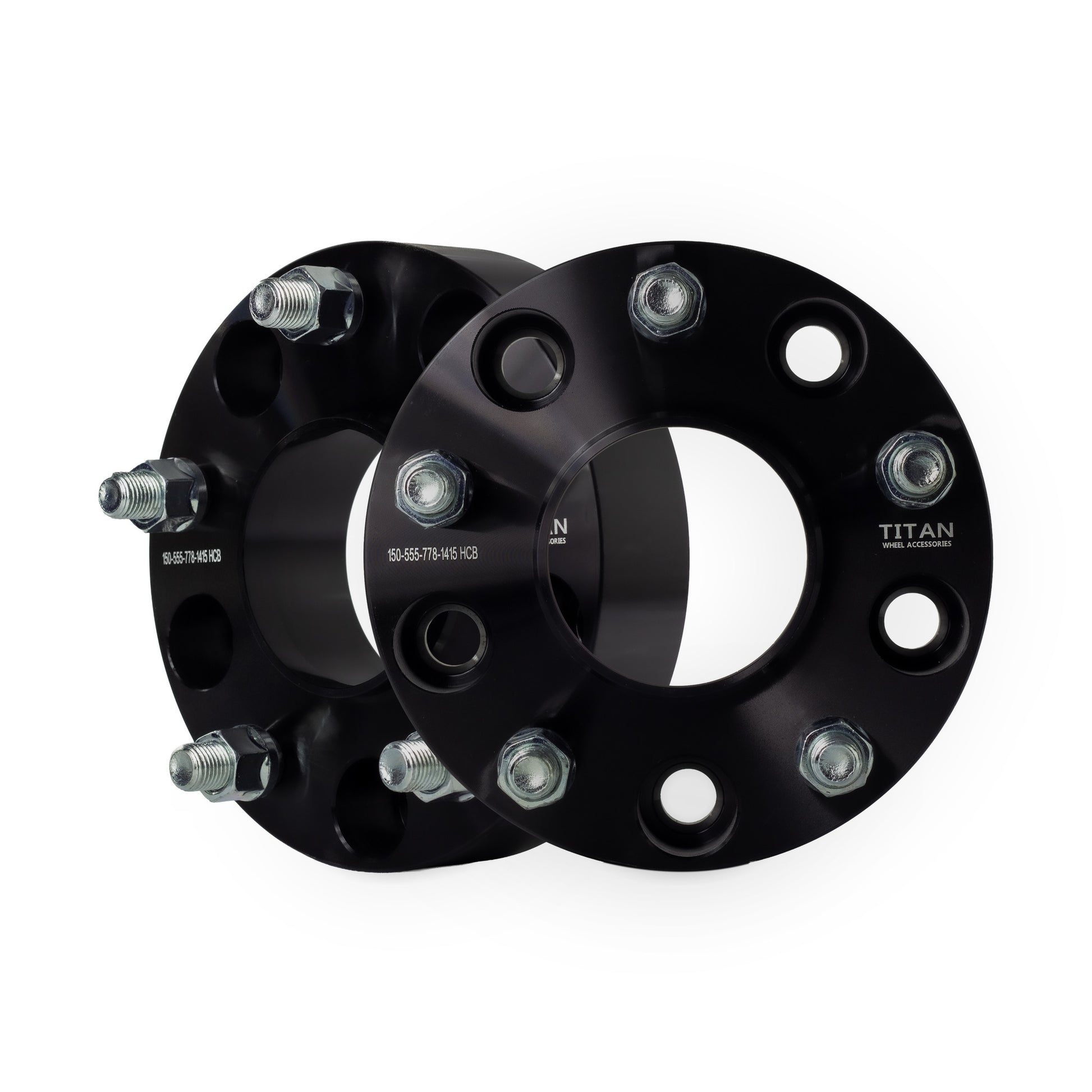

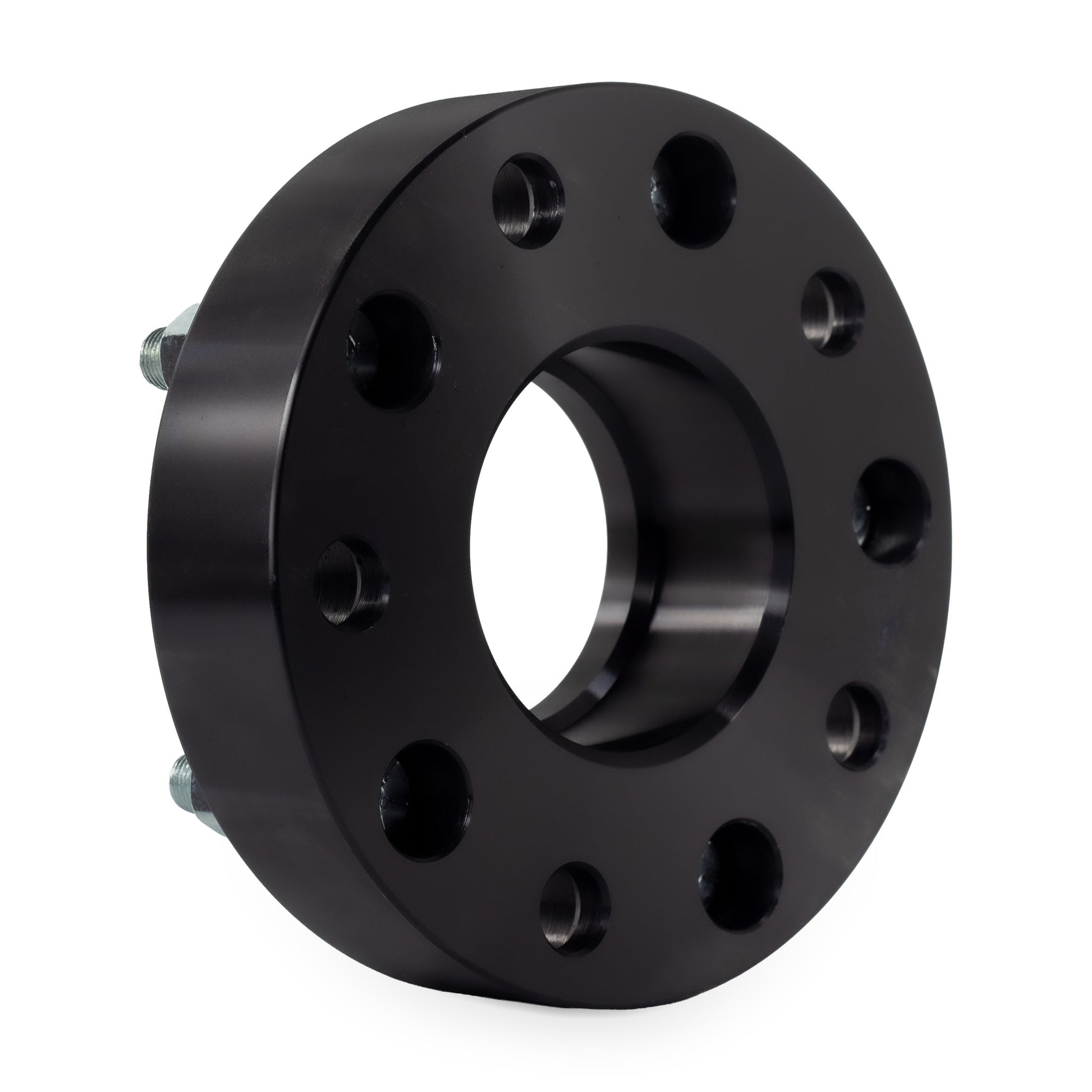

These Titan Wheel Accessories 1.5 Inch hubcentric wheel spacers are designed with a 5x5.5 (5x139.7) bolt pattern, 77.8mm hub bore and 14x1.5 thread pitch for Ram 1500 Classic. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These spacers will improve the stance of your vehicle, providing a more aggressive look while also adding additional clearance for aftermarket brake and suspension parts. They also allow for larger wheel and tire combinations to be installed, giving you more options for customization. These spacers are easy to install and come with all necessary hardware.

Specifications

- Vehicle Bolt Pattern: 5x5.5 (5x139.7)

- Wheel Bolt Pattern: 5x5.5 (5x139.7)

- Hub Bore: 77.8

- Thread Pitch: 14x1.5

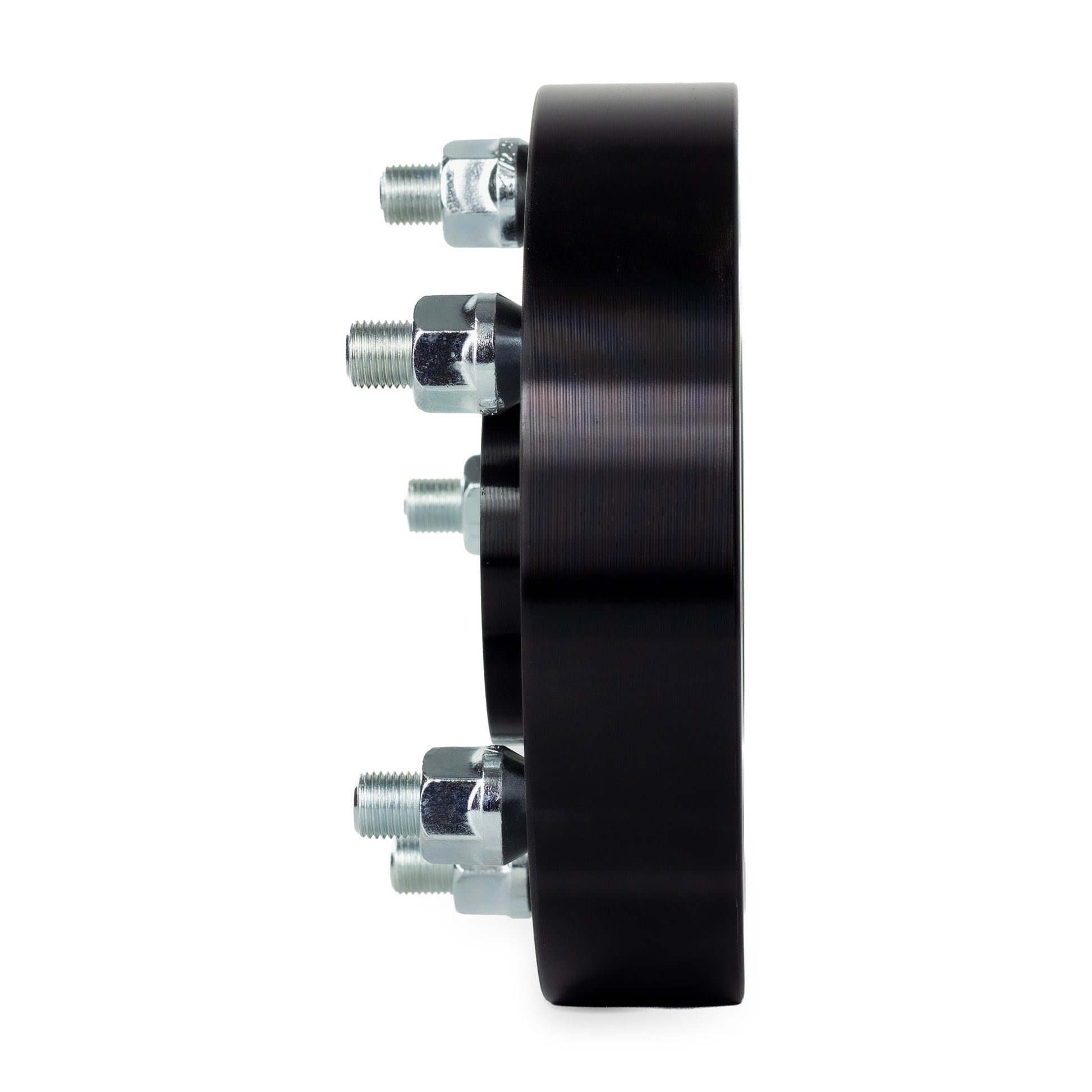

- Thickness: Each spacer measures 1.5 Inch (38mm) thick

Materials

- Our spacers are machined from billet T6 6061 aluminum

- Black finish

Vehicle Fitment

These spacers will bolt up to the following vehicles:

2012-2013 Ram 1500 5 Lug (Check Your Studs - Could have either 14x1.5 or 9/16 studs.)
2014-2022 Ram 1500 5 Lug

Vehicle fitment information applies only to the vehicle's hub.

View full details

Installation Information

- Please ensure that the your vehicle has the same studs as the adapters, otherwise additional lug nuts WILL BE required

- Make sure that all lug nuts get a full 6-8 turns when tightening. Failure to do so, can result in damage to your vehicle.

- Installation needs to be performed by a trained professional

It's Possible that your OEM Studs are longer than the spacer is thick, if so you have a few options:

- Your lugs studs will need to be shortened by grinding them down or you can replace your OEM lug studs with shorter studs.

- If your wheels have sufficient sized and placed pockets machined in the backside, between the mounting holes, then you should not need to modify your factory wheel studs.

- Always ensure that there is no gap between the spacer and the back of the wheels.

Complete Installation Instructions

  • Same Day Shipping

    Orders placed before 3:00 PM EST will be shipped out same day. Weekend and Holiday orders will be shipped promptly on the following business day.

  • Questions?

    Feel free to reach out to us with any questions. Our staff is highly trained and happy to help you find the correct product for your vehicle. You can email us at info@titanwheelaccessories.com

Customer Reviews

Based on 14 reviews
79%
(11)
7%
(1)
7%
(1)
7%
(1)
0%
(0)
B
BlackWolf
Work perfectly

2017 RAM 1500 with Fuel rims - These fit great! Note: You will need a special socket to put the lug nuts on on the INSIDE bolts that mount the wheel spacers to your hub! Depending on your wheels (stock, after market, or dealer add on) you may need the same socket for those. I highly recommend that you get the SHOCKWAVE 1/2 in. Drive Lug Nut Impact Sockets (either a set or the specific size for your lug nuts). The lug nuts that come with these wheel spacers are 19mm - so you'll need that one for sure. You will also need to lift your truck or adjust the fender well covers (the plastic piece inside your fender wells that keeps mud, rocks, dirt, and road debris from flinging around into your engine bay or the frame) if you're running 20"x9" wheels.

T
Tyler

Exactly as described have not installed yet but believe they will be great

N
Nebben Jordan
2nd gen dodge ram with 3rd gen 20 inch rims

I have a 1999 dodge ram 1500 2nd. A friend gave me a free set of 20 inch rims from his 3rd generation ram. The rear tires fit with no modifications. However the front end didn’t fit. The bearing cap won’t let the tire sit all the way. I bought these titan 1.5 inch spacers and it solved the problem. Spacers appear to be made with high quality materials and fit on with no issues. I had it on the truck for approximately 3 weeks now and still no issues.
