Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — set of 4

1.25" 5x4.5 to 5x5 Wheel Adapters for Jeep | JK Wheels on TJ YJ KK SJ | 71.5 Hubcentric | 1/2x20 Studs

Set of 4
1.25"
$115.95
Skip to product information
Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — set of 4

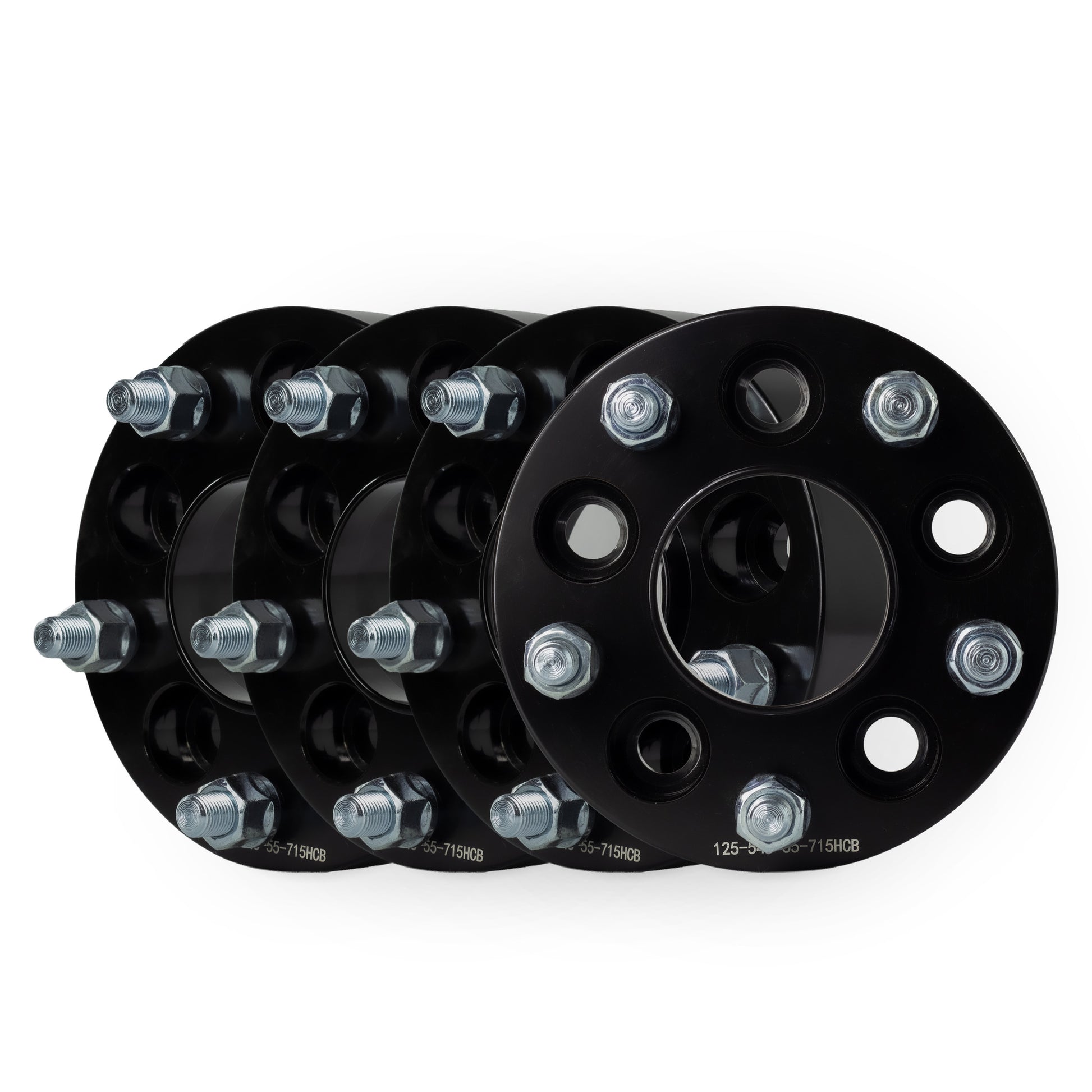

  • Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — set of 4

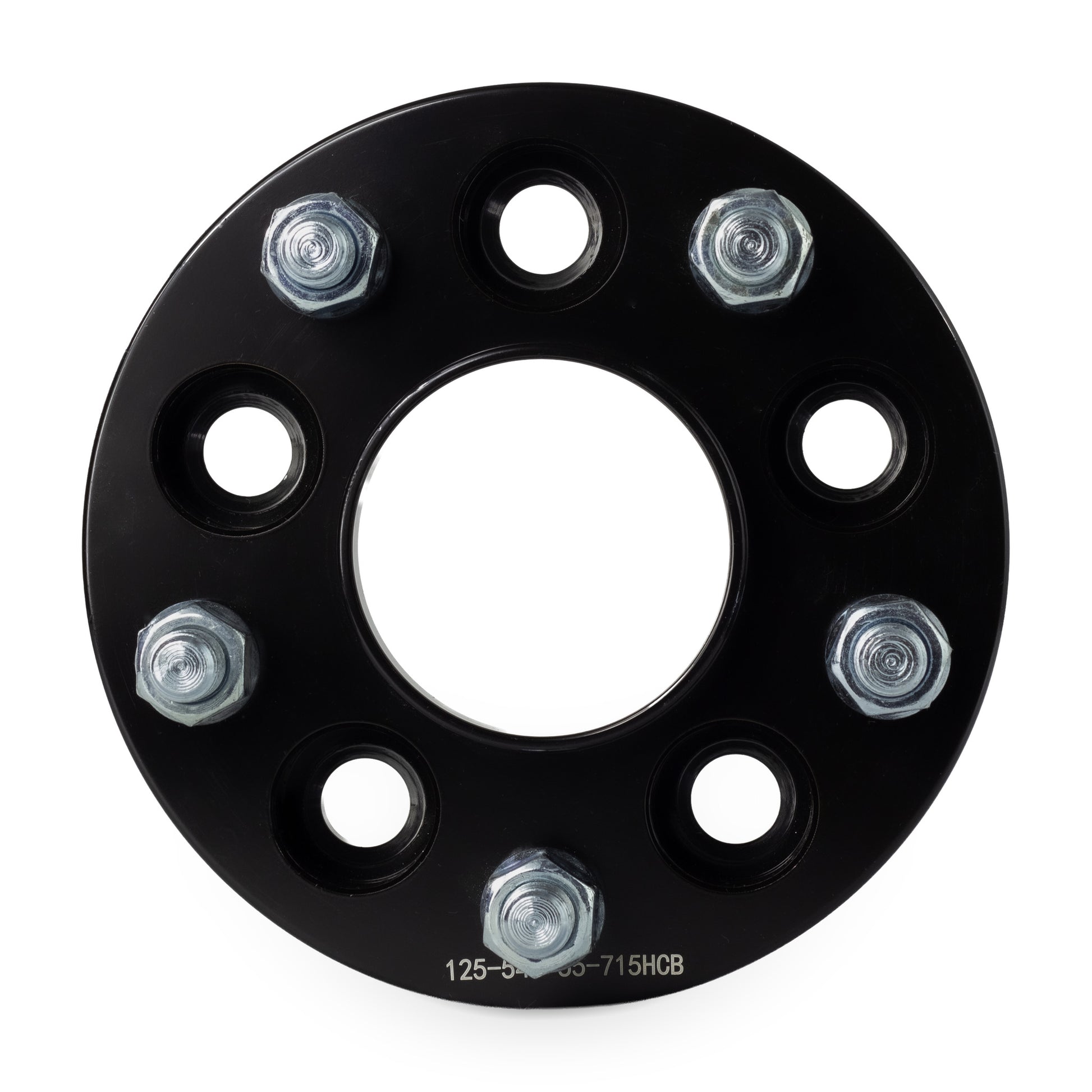

  • Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — front view

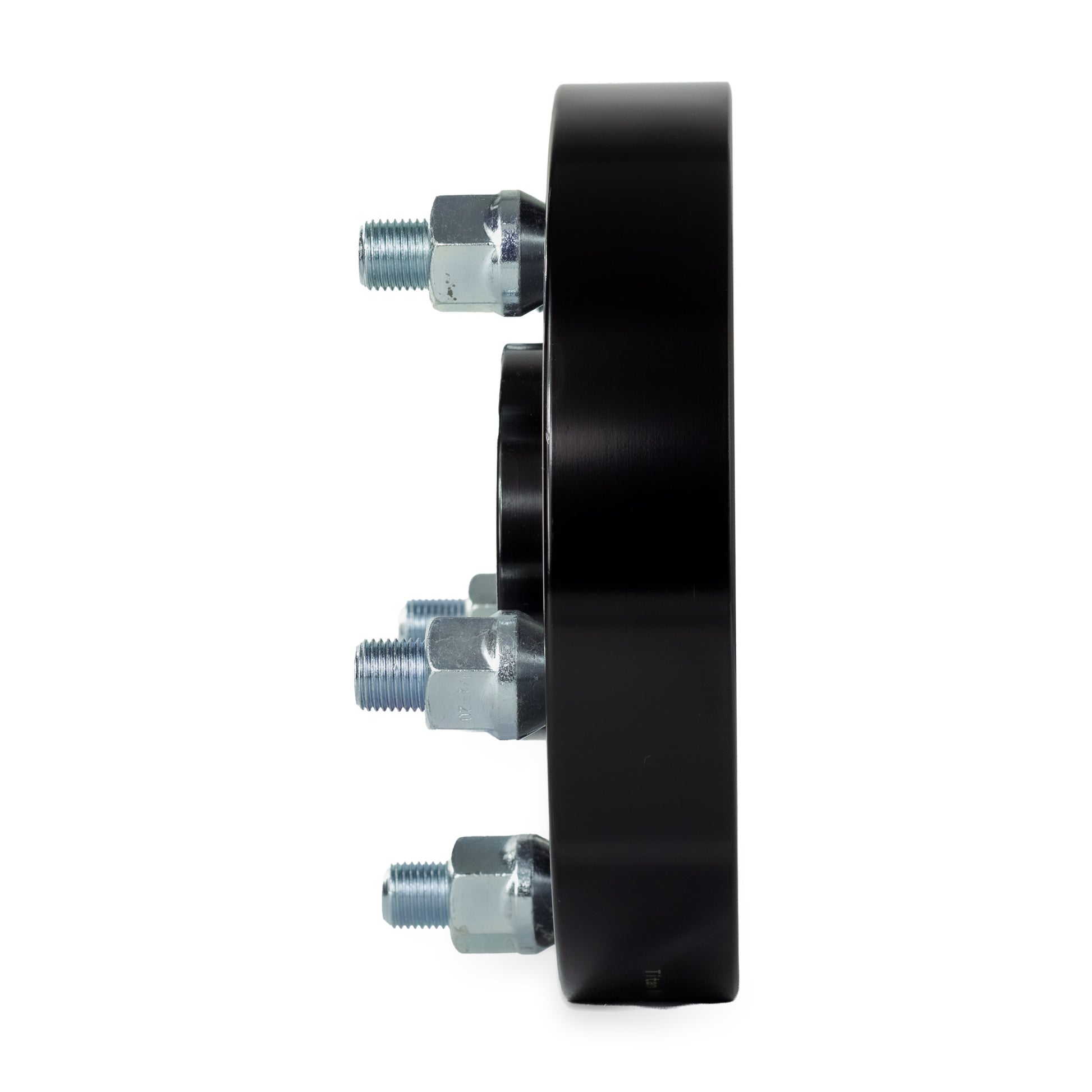

  • Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — side view

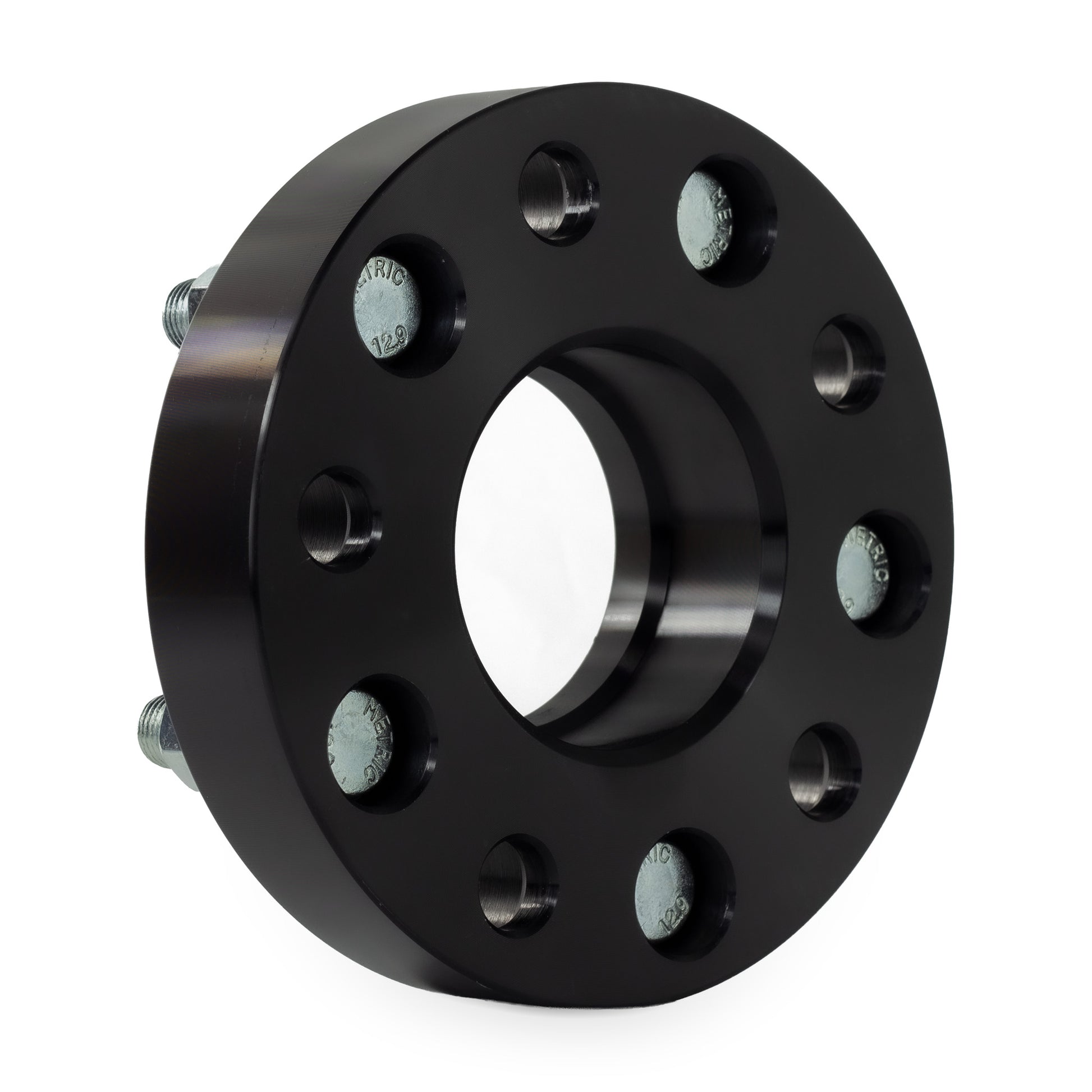

  • Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — rear three-quarter view

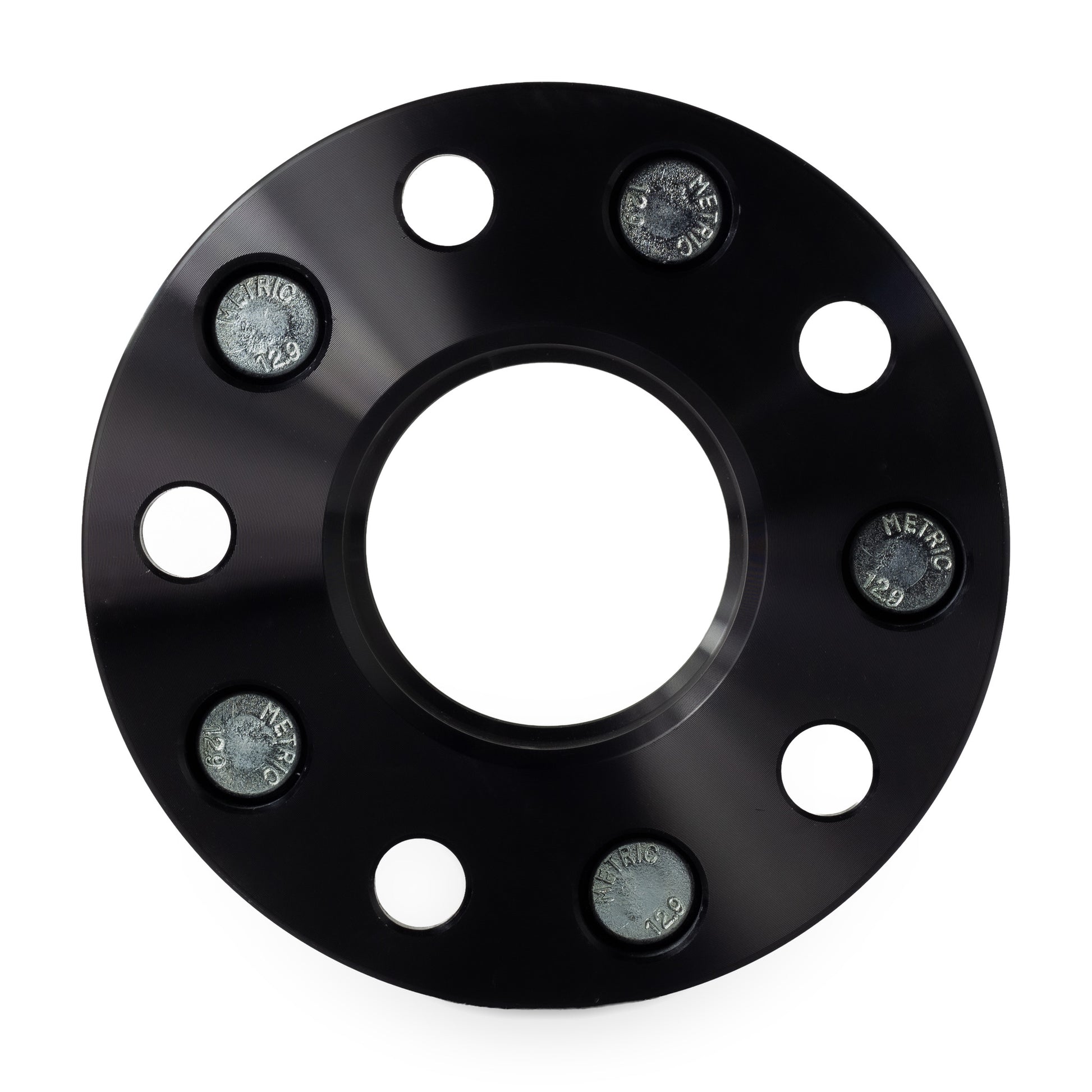

  • Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — rear view
  • Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — set of 4
  • Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — front view
  • Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — side view
  • Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — rear three-quarter view
  • Open Box: 1.25" Titan Wheel Adapters | 5x4.5 to 5x5 | 1/2x20 — rear view
1.25" 5x4.5 to 5x5 Wheel Adapters for Jeep | JK Wheels on TJ YJ KK SJ | 71.5 Hubcentric | 1/2x20 Studs
TITAN WHEEL ACCESSORIES SKU HC-125-545-55-715-Z1-4

1.25" 5x4.5 to 5x5 Wheel Adapters for Jeep | JK Wheels on TJ YJ KK SJ | 71.5 Hubcentric | 1/2x20 Studs

Fits bolt pattern: 5x4.5 → 5x5

Out of Stock
$115.95

$28.98 each · set of 4

Flat $18.95 shipping anywhere in the US

  • 1.25"
  • 5×4.5
  • Hubcentric
  • Bolt-on
Size

This one is sold out

Leave your email and we'll tell you the day it's back in stock.

Email me when it's back
Shop parts in stock for your vehicle →
Quantity
Open Box

$80.95 $115.95

Never installed. May have cosmetic scratches or scuffs. 2 available

Final sale · No warranty · No returns

See all open box deals →
  • 30-day returns
  • Hardware included
  • Lifetime warranty

OVERVIEW

BUILT FOR THE PLATFORM

These 1.25 Inch Titan Wheel Accessories 5x4.5 to 5x5 wheel adapters are designed to allow you to fit wheels with a 5x5 bolt pattern on a vehicle with a 5x4.5 bolt pattern. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These adapters are easy to install and come with all necessary hardware. They are perfect for anyone looking to change the look of their vehicle or for those who want to use different wheels with a different bolt pattern.

  • 1.25"
  • 5×4.5
  • Hubcentric
  • Bolt-on

HUBCENTRIC VS. LUGCENTRIC

Hubcentric

The spacer's center bore matches your hub, so the wheel is centered on the hub instead of by the lug nuts. That precise centering helps prevent the vibration an off-center wheel causes.

Lugcentric

The lug nuts themselves center the wheel. Common on universal-fit spacers; properly torqued lug nuts keep the wheel true.

This product is hubcentric.

THE NUMBERS

FULL SPEC SHEET

TypeWheel Adapters
Bolt Pattern 5x4.5 → 5x5
Hub Bore71.5mm
Thickness1.25"
Thread Pitch1/2x20
CenteringHubcentric
Install TypeBolt-on
FinishBlack
Hardware Included Yes
Net Weight 15.0 lb

IN THE BOX

WHAT'S IN THE BOX

  • 4× 1.25" 5x4.5 to 5x5 Wheel Adapters for Jeep | JK Wheels on TJ YJ KK SJ | 71.5 Hubcentric | 1/2x20 Studs
  • ✓ Open-ended lug nuts to bolt the spacers to your hub — your own lug nuts hold the wheel on

FROM THE GARAGE

WHAT DRIVERS SAY

Customer Reviews

Based on 31 reviews
90%
(28)
3%
(1)
6%
(2)
0%
(0)
0%
(0)
D
DENNIS GILLILAND

originall bolts stick out to far can't properly seat wheels

S
Smitty Smith
Returned order

I'm needing 4-1" spacers 5 on 114.3 to 5 on 114.3. My bolt pattern on my 2008 Dodge Nitro SLT is 5 on 4 1/4".

J
Joseph

Exactly what I expected and what I ordered

J
Joe Besjak
Wheel adapters

Ordered a set of wheel adapters for my 2000 Jeep TJ. Product was of great quality, competitively priced and received them quickly! Thank you Titan!

R
Roy KELLEY

1" (25mm) 5x4.5 (5x114.3) To 5x5 Wheel Adapters | 1/2x20 Studs |

THE GRID

SEEN ON REAL BUILDS

ANSWERS

QUESTIONS, ANSWERED

The questions drivers ask most about this product — answered up front.

SEE ALL FAQ
Will these fit my exact vehicle?
Check the spec sheet above for bolt pattern and hub bore, or use the fitment finder to confirm against your year, make and model.
Do I need an alignment after installing?
No alignment change is required for the spacer itself, though we recommend a routine check if you're also changing offset or ride height.
What torque should I use?
See the Installation section above for the torque spec sheet included with this product — never exceed 110 ft-lbs.

INSTALLATION

Bolt-On Wheel Spacers and Adapters

Before you install

If your factory wheel studs are longer than the spacer is thick, they must be trimmed or replaced with shorter studs — unless the wheel has relief pockets deep and wide enough to clear them. Never install a wheel where the factory studs touch the back of it. The wheel must seat completely flat against the face of the spacer.

Full installation guide

Torque Specs

All lug nuts used to install wheel spacers must be torqued by hand using a torque wrench. The use of power tools to install lug nuts can cause them to be over-torqued or can cause damage to the spacers and studs.

  • Maximum torque: 110 ft-lbs. If the vehicle manufacturer's torque specification is under 110 ft-lbs, follow that specification.
  • Lug nuts securing the adapters to the hub and the wheels to the adapters: vehicle manufacturer's specification, not to exceed 110 ft-lbs.

Re-Torque Schedule

  • After driving with the new spacers or adapters for 25 miles, check the torque on all lug nuts again.
  • The wheels will need to be removed to check the lug nuts securing the spacer to the hub on bolt-on spacers and adapters.
  • It is always a good idea to check torque on all lug nuts periodically after installation, and immediately if a new vibration is noticed.

Never exceed 110 ft-lbs — use the OEM spec if it's lower.

Failure to correctly install the product may result in the loss of wheel(s) while driving. Proper installation is to be performed by a trained technician with sufficient knowledge of these products. Titan Wheel Accessories products are intended for off-road or competition use only.
