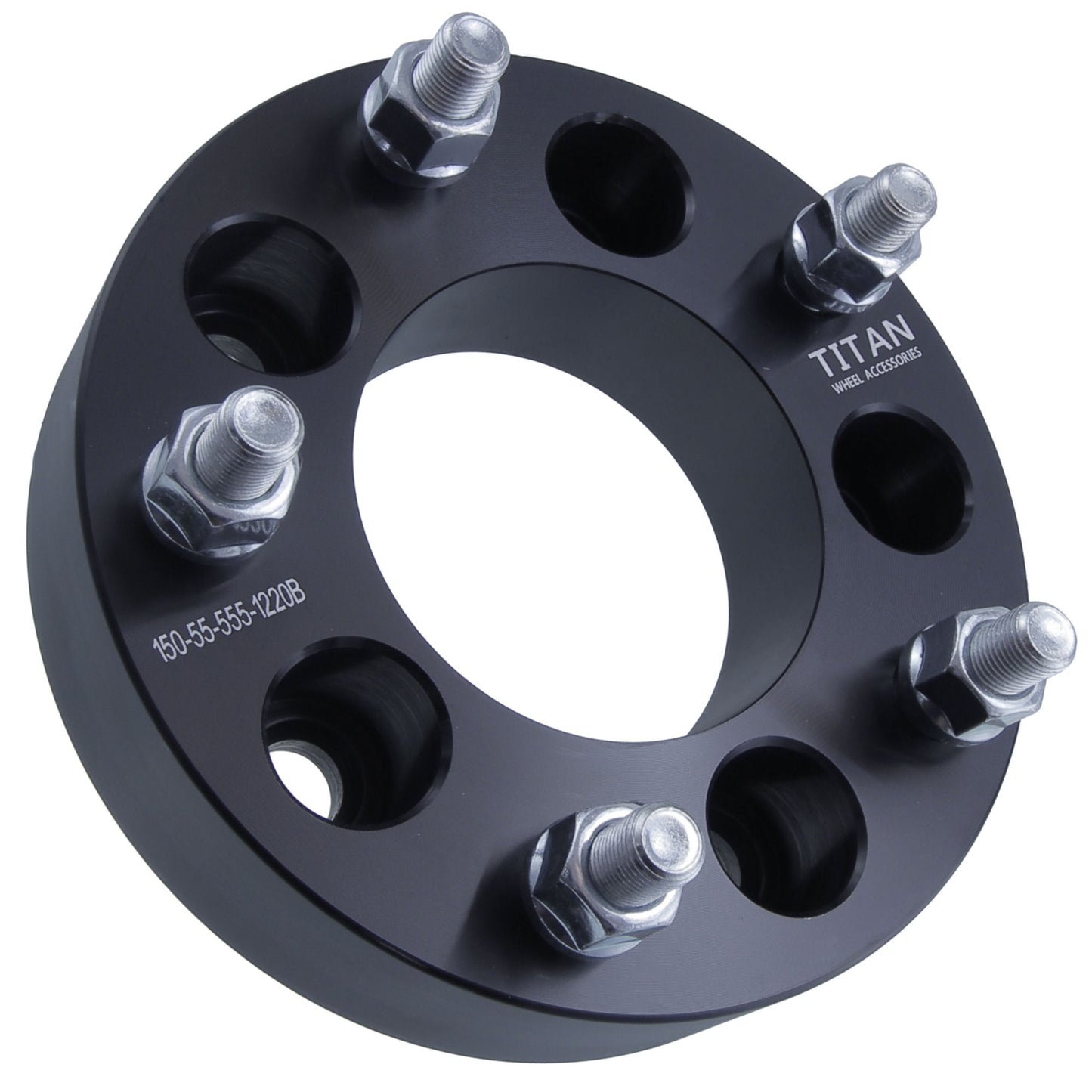

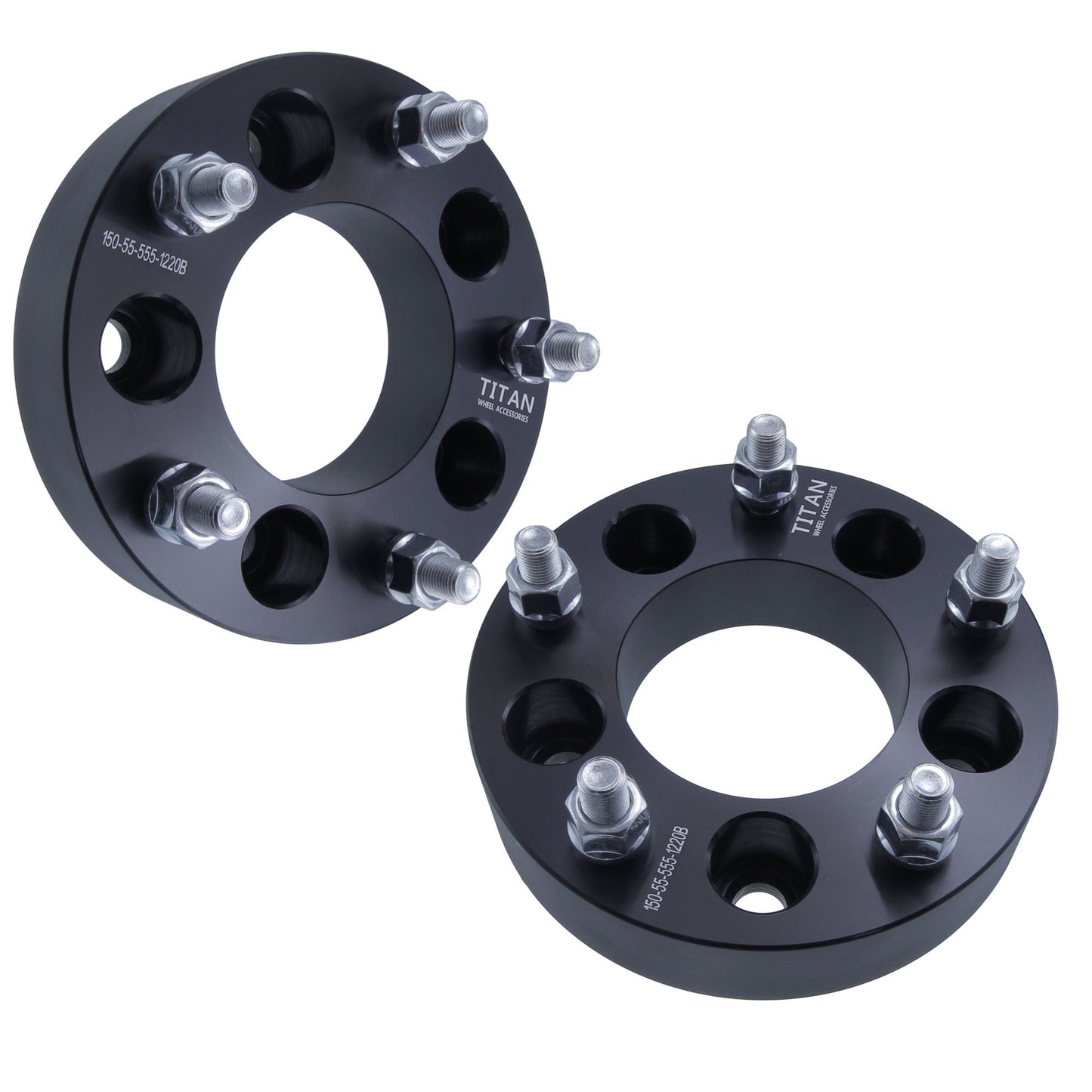

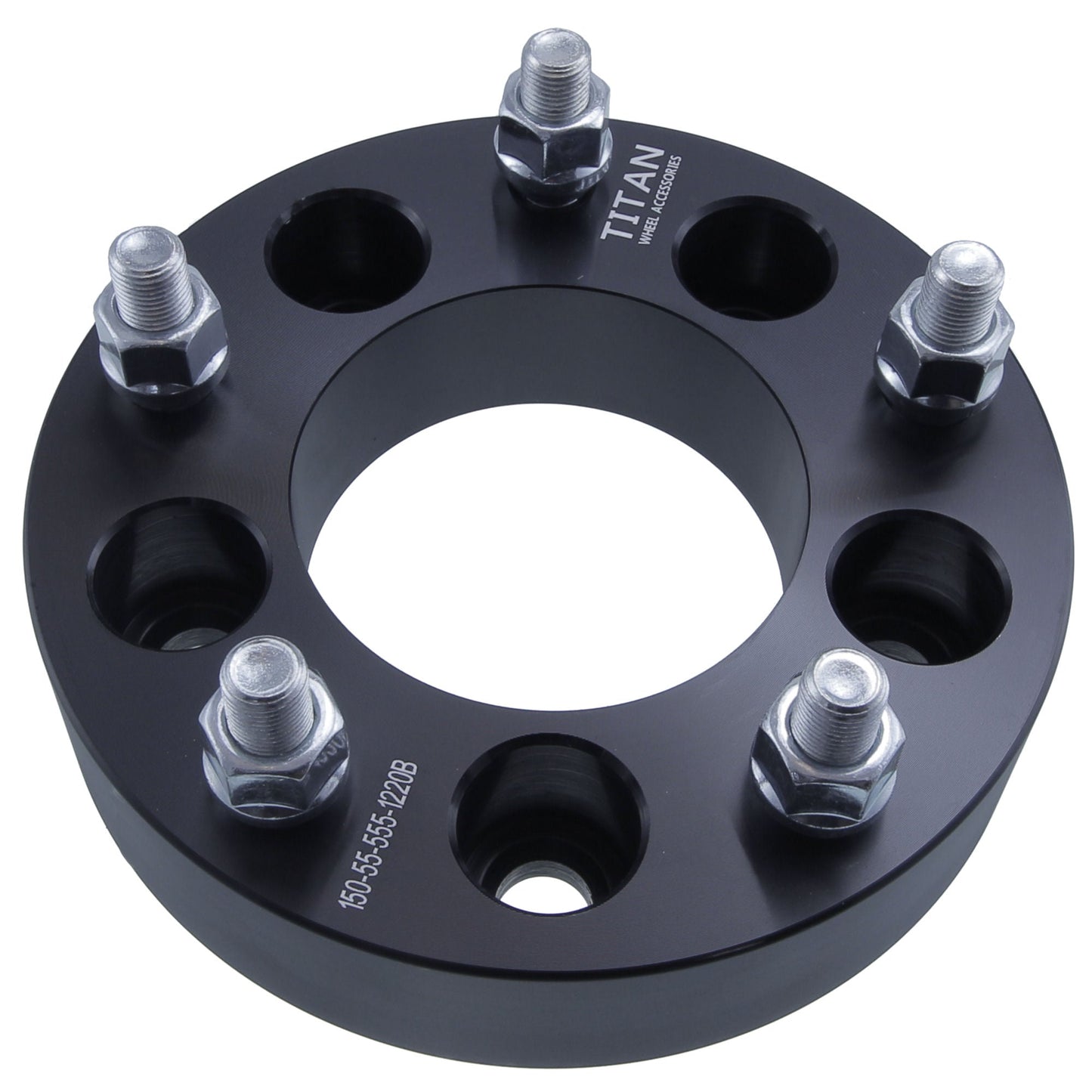

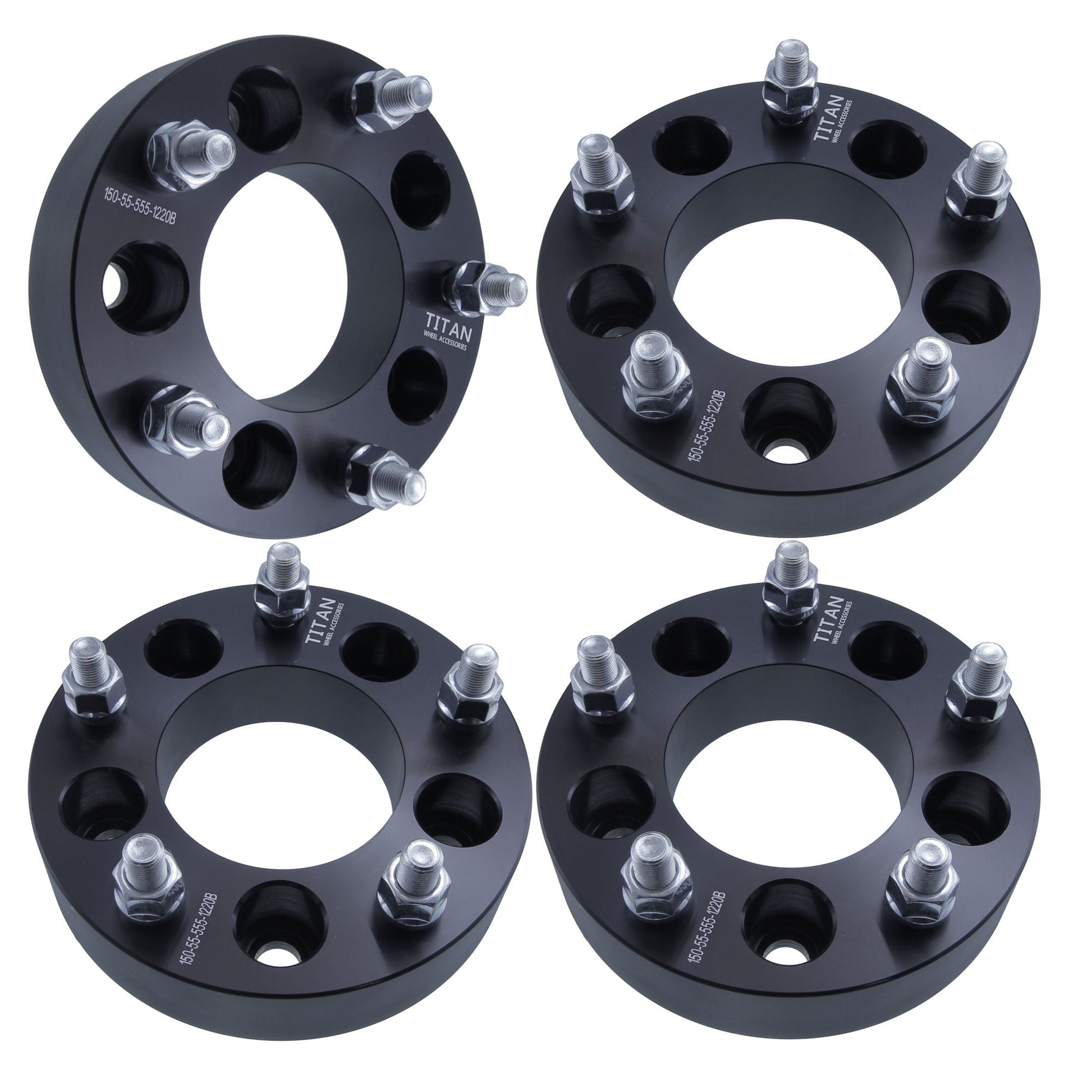

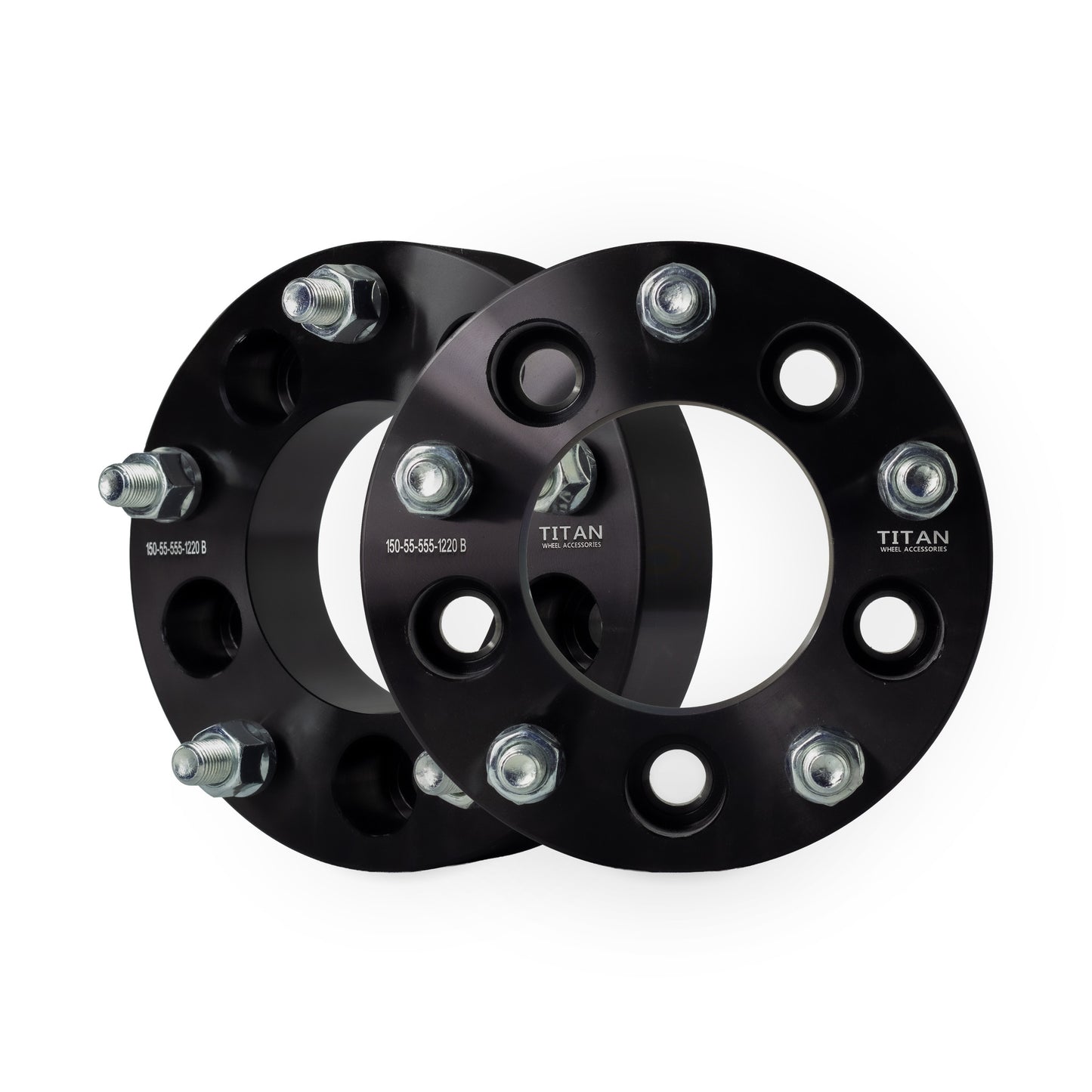

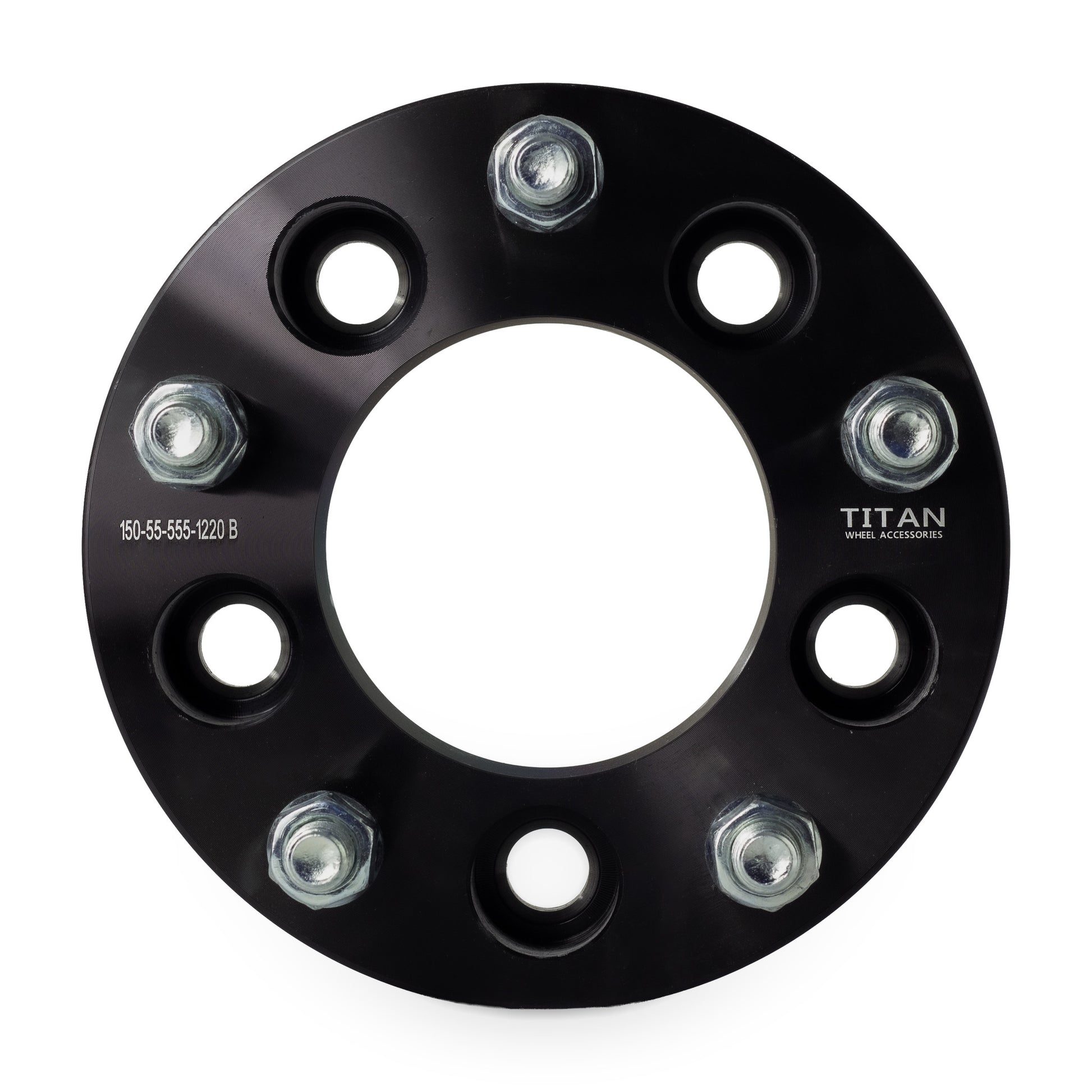

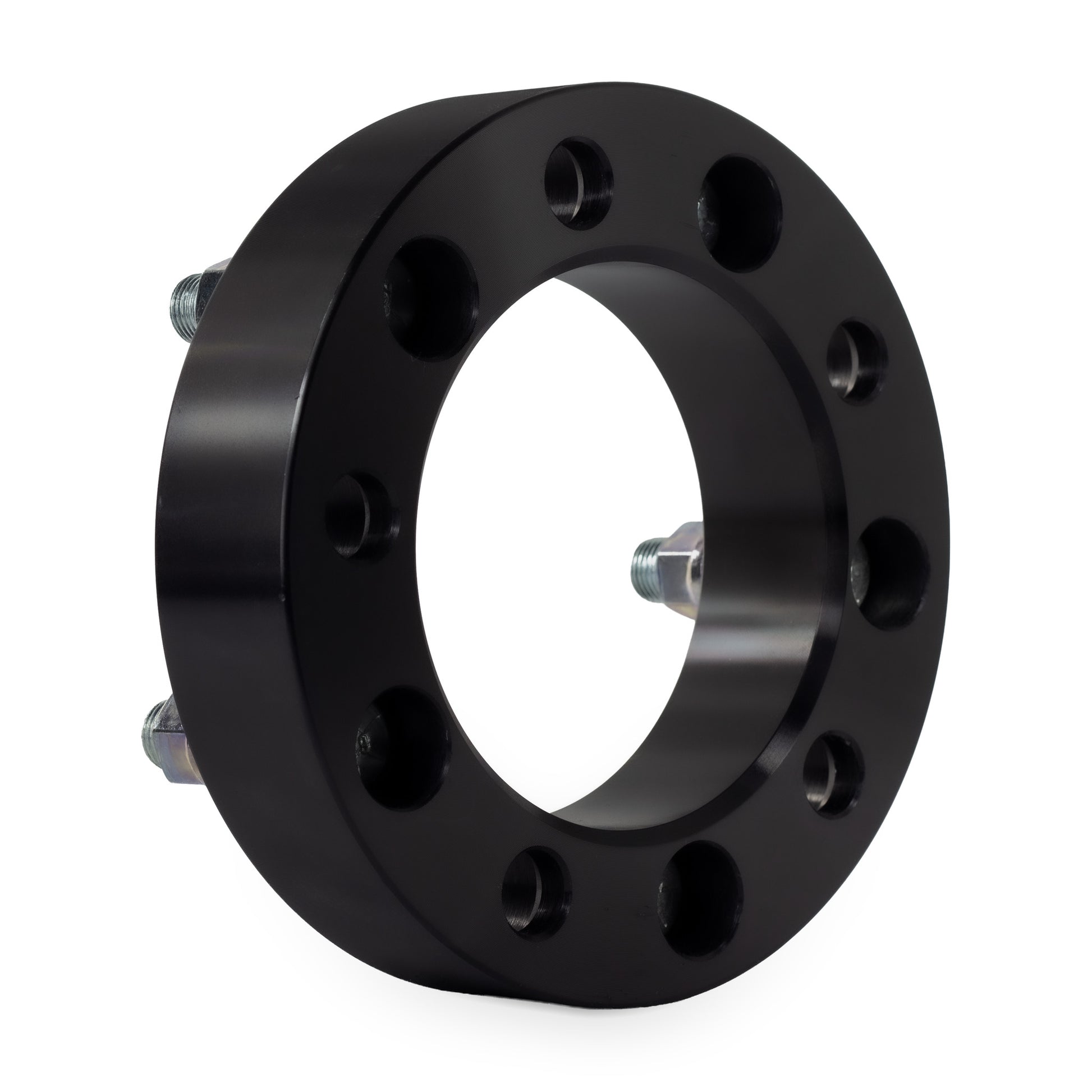

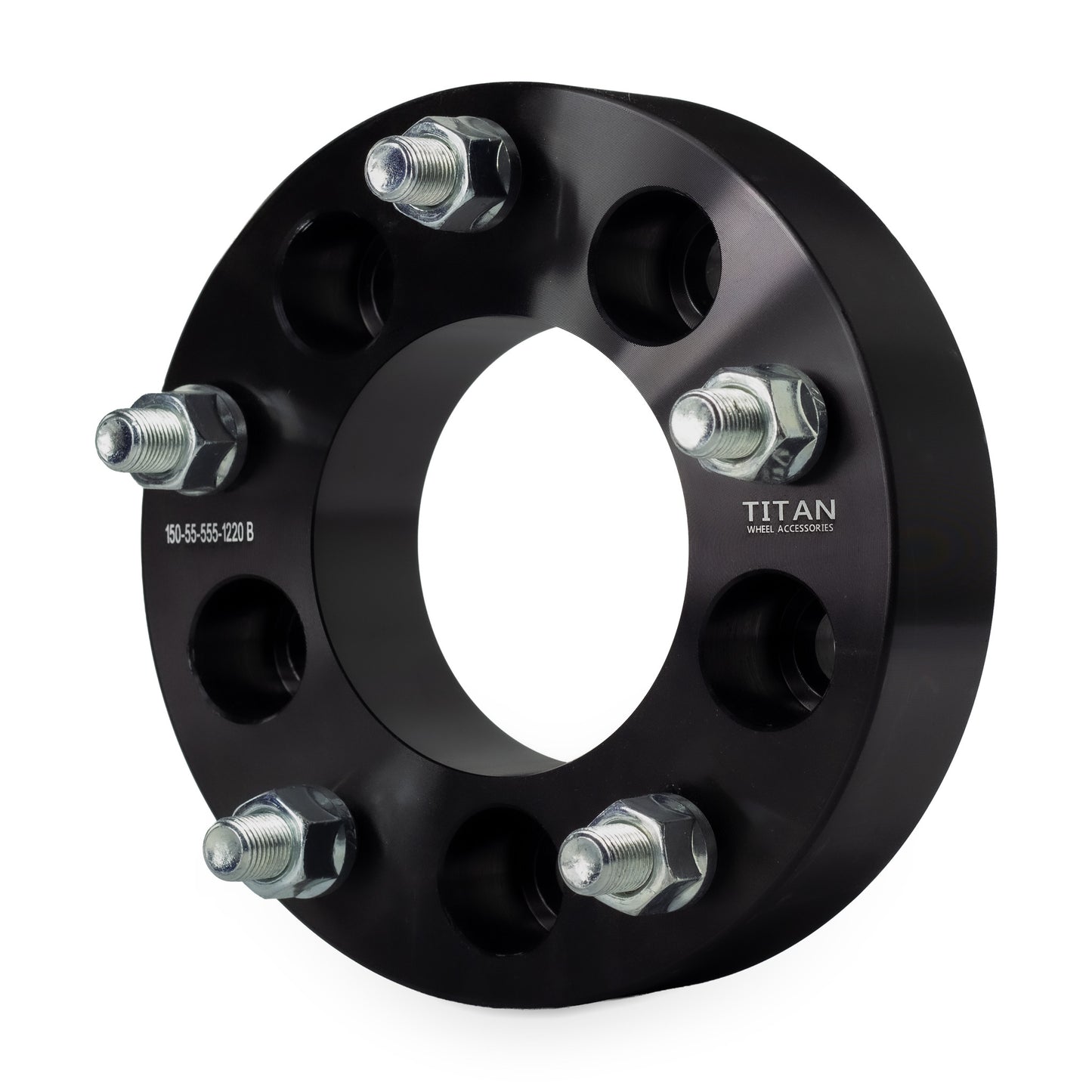

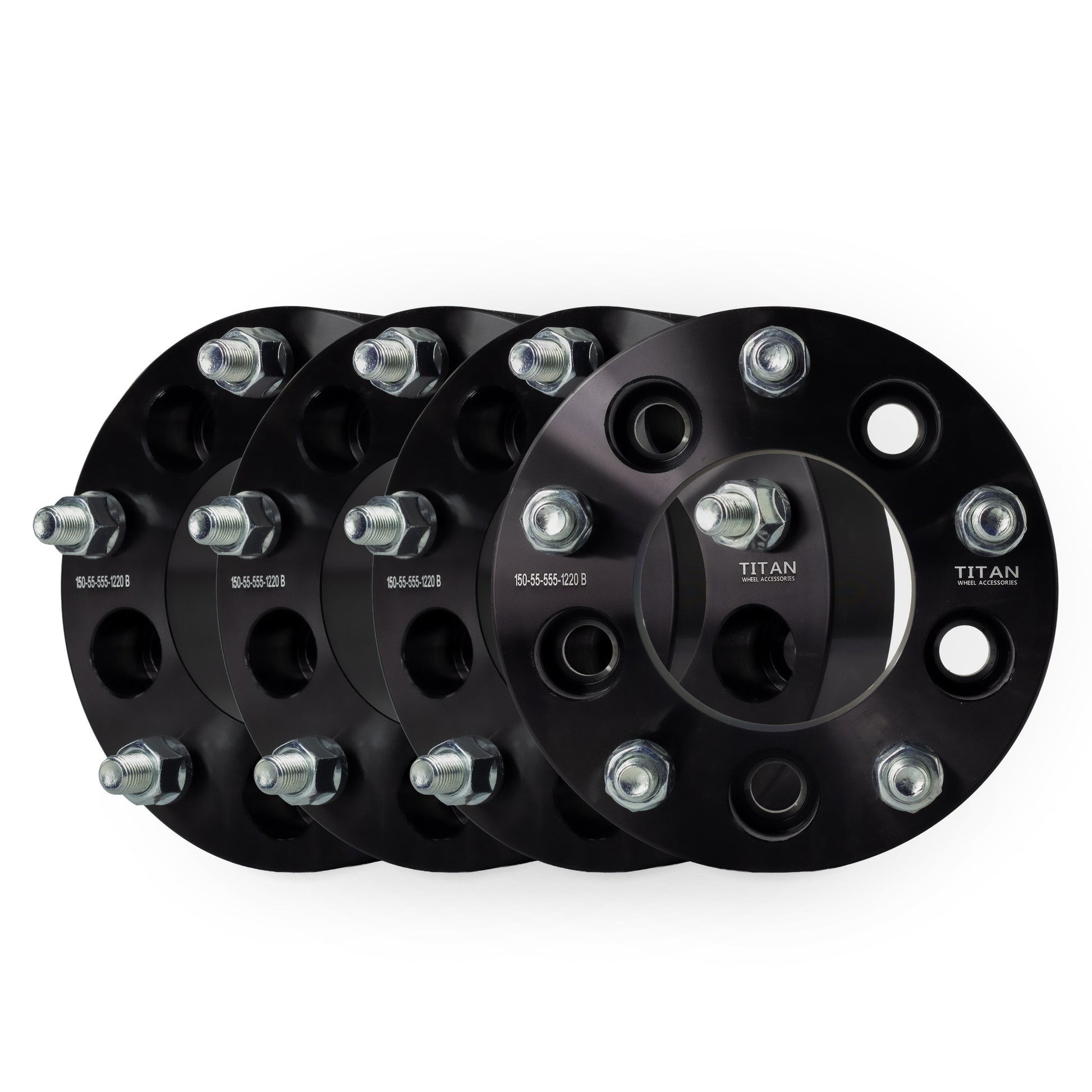

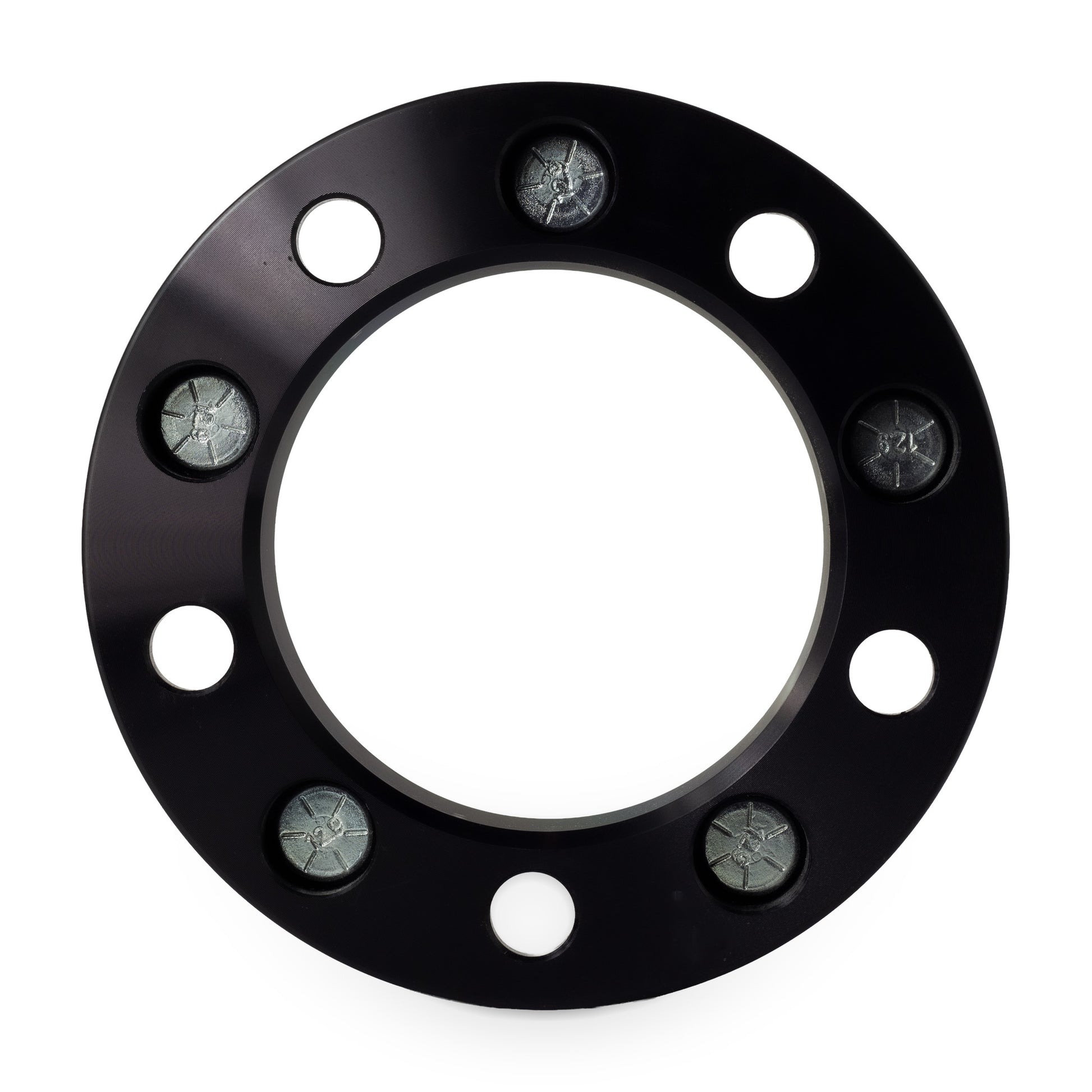

1.5 Inch 5x5 (5x127) to 5x5.5 (5x139.7) Wheel Adapters | 1/2x20 Studs
1.5 Inch 5x5 (5x127) to 5x5.5 (5x139.7) Wheel Adapters | 1/2x20 Studs
Couldn't load pickup availability
Change your vehicle's bolt pattern to run different wheels.
These wheel adapters come with everything needed for full installation.
Specifications
Specifications
- Vehicle Bolt Pattern: 5x5 (5x127)
- Wheel Bolt Pattern: 5x5.5 (5x139.7)
- Hub Bore: 87.1
- Thread Pitch: 1/2"x20

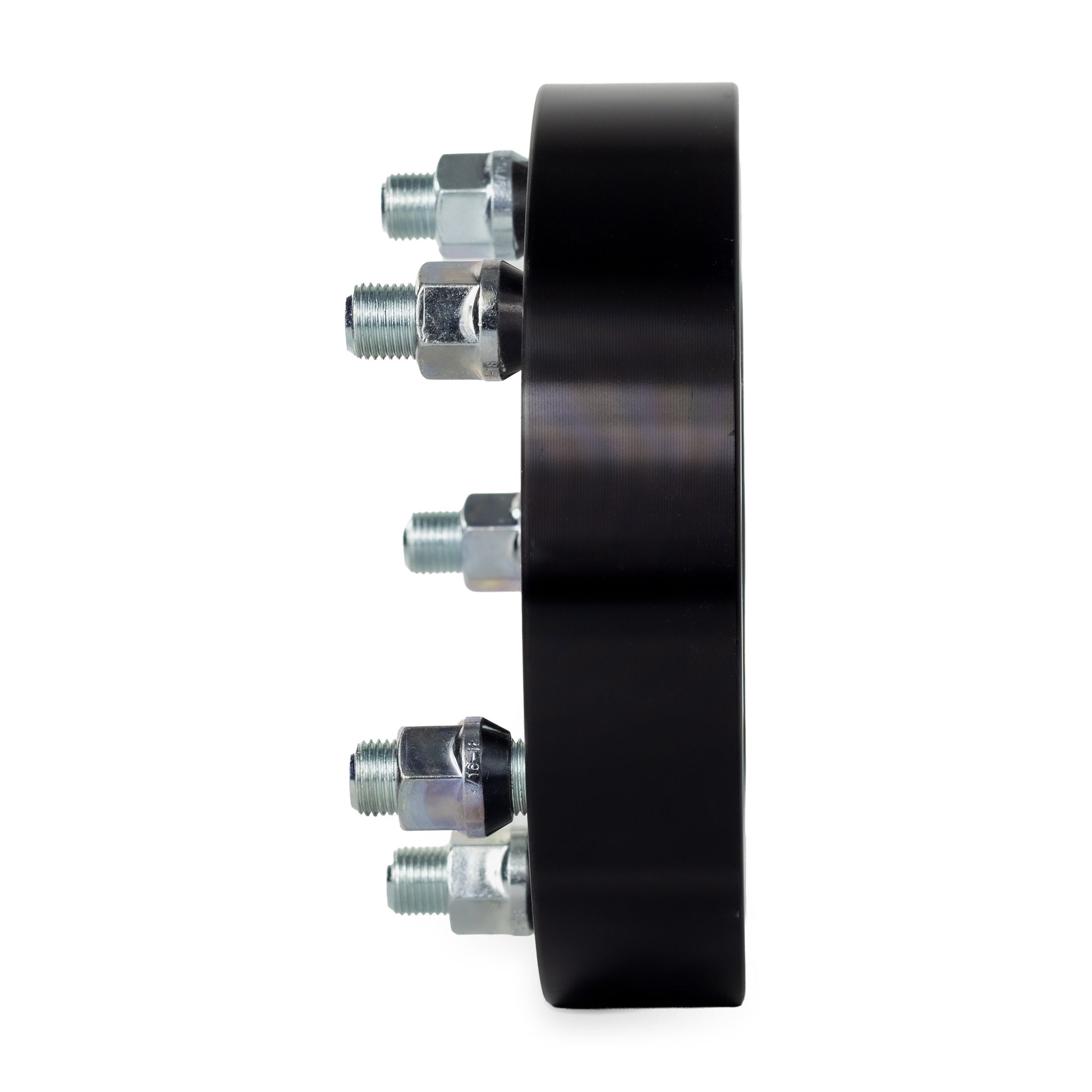

- Thickness: Each Spacer Measures 1.5 Inch (38mm) Thick
Vehicle Fitment
Vehicle Fitment
These adapters will change the vehicle's bolt pattern and will not work with the original stock wheels. The fitment information below applies to the vehicle hub only.
These will bolt on to vehicles with a 5x5 (5x127) Bolt Pattern, 87.1mm or smaller Hub Bore and a 1/2"x20 Thread Pitch.
They will only work with wheels that have a 5x5.5 (5x139.7) Bolt Pattern. They will not work with stock wheels
Materials
Materials
- Our spacers are machined from Billet T6 6061 Aluminum
- Spacers and adapters with pressed-in studs use grade 12.9 steel studs
- Black Finish
Vehicle fitment information applies only to the vehicle's hub. Wheel adapters will change your vehicles bolt pattern, so they will not work with stock wheels.
These 1.5 Inch Titan Wheel Accessories 5x5 to 5x5.5 wheel adapters are designed to allow you to fit wheels with a 5x5.5 bolt pattern on a vehicle with a 5x5 bolt pattern. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These adapters are easy to install and come with all necessary hardware. They are perfect for anyone looking to change the look of their vehicle or for those who want to use different wheels with a different bolt pattern.
Installation Information
- Please ensure that the your vehicle has the same studs as the adapters, otherwise additional lugs WILL BE required
- Make sure that all lug nuts get a full 6-8 turns when tightening. Failure to do so, can result in damage to your vehicle.
- Installation needs to be performed by a trained professional
It's Possible that your OEM studs are longer than the spacer is thick, if so you have a few options:
- Your lugs studs can be shortened by grinding them down or you can replace your OEM lug studs with shorter studs.
- If your wheels have sufficient sized and placed pockets machined in the backside, between the mounting holes, then you should not need to modify your factory wheel studs.
- Always ensure that there is no gap between the spacer and the back of the wheels.
-
