1.5" (38mm) Titan Wheel Spacers for Ford Bronco 2021-2022 Ranger 2019+| 6x5.5 (6x139.7) | 93.1 Hubcentric | 12x1.5 Studs |
1.5" (38mm) Titan Wheel Spacers for Ford Bronco 2021-2022 Ranger 2019+| 6x5.5 (6x139.7) | 93.1 Hubcentric | 12x1.5 Studs |
Couldn't load pickup availability
Share
Space out your wheels for a more aggressive stance or increased suspension and brake clearance.
These wheel spacers come with everything needed for full installation.

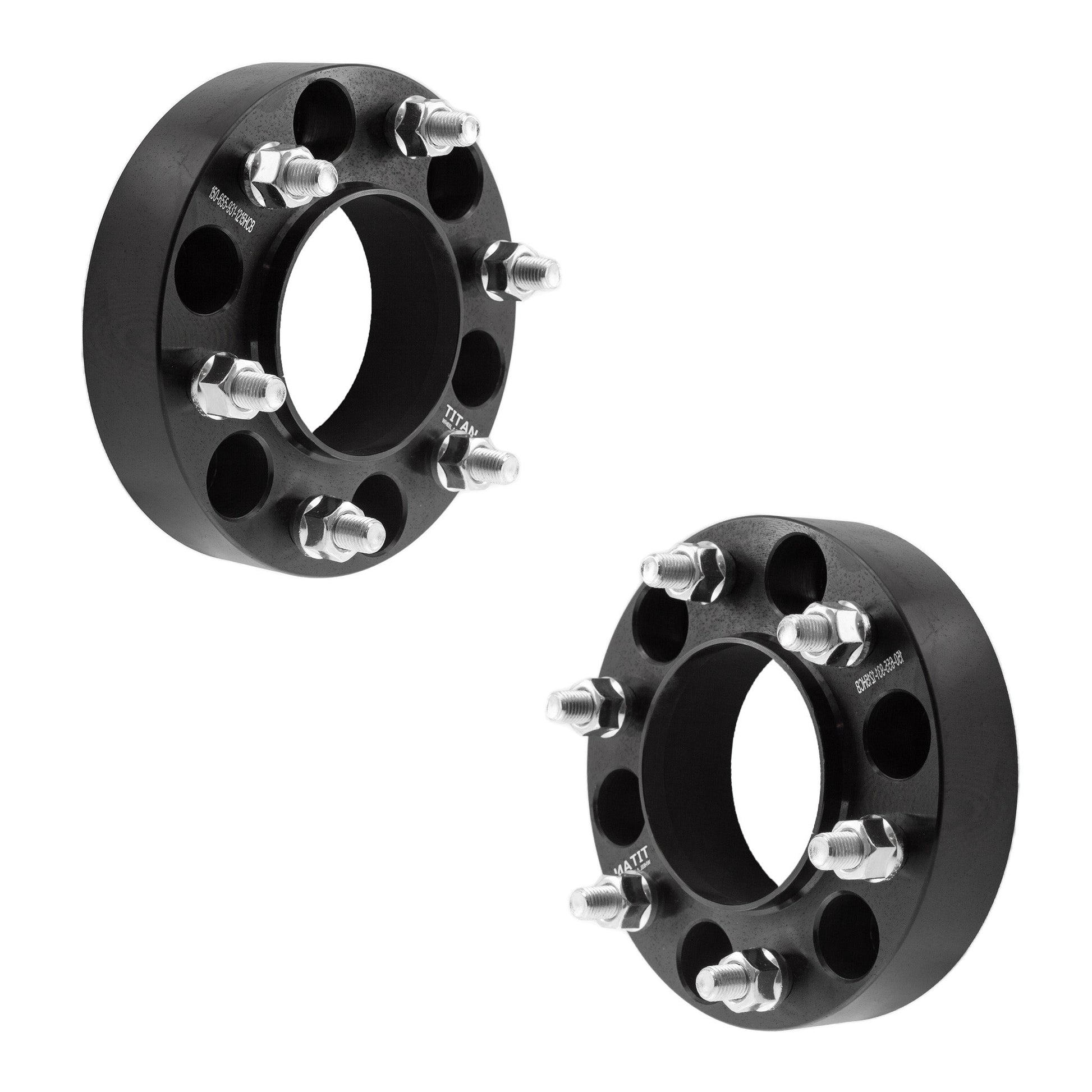

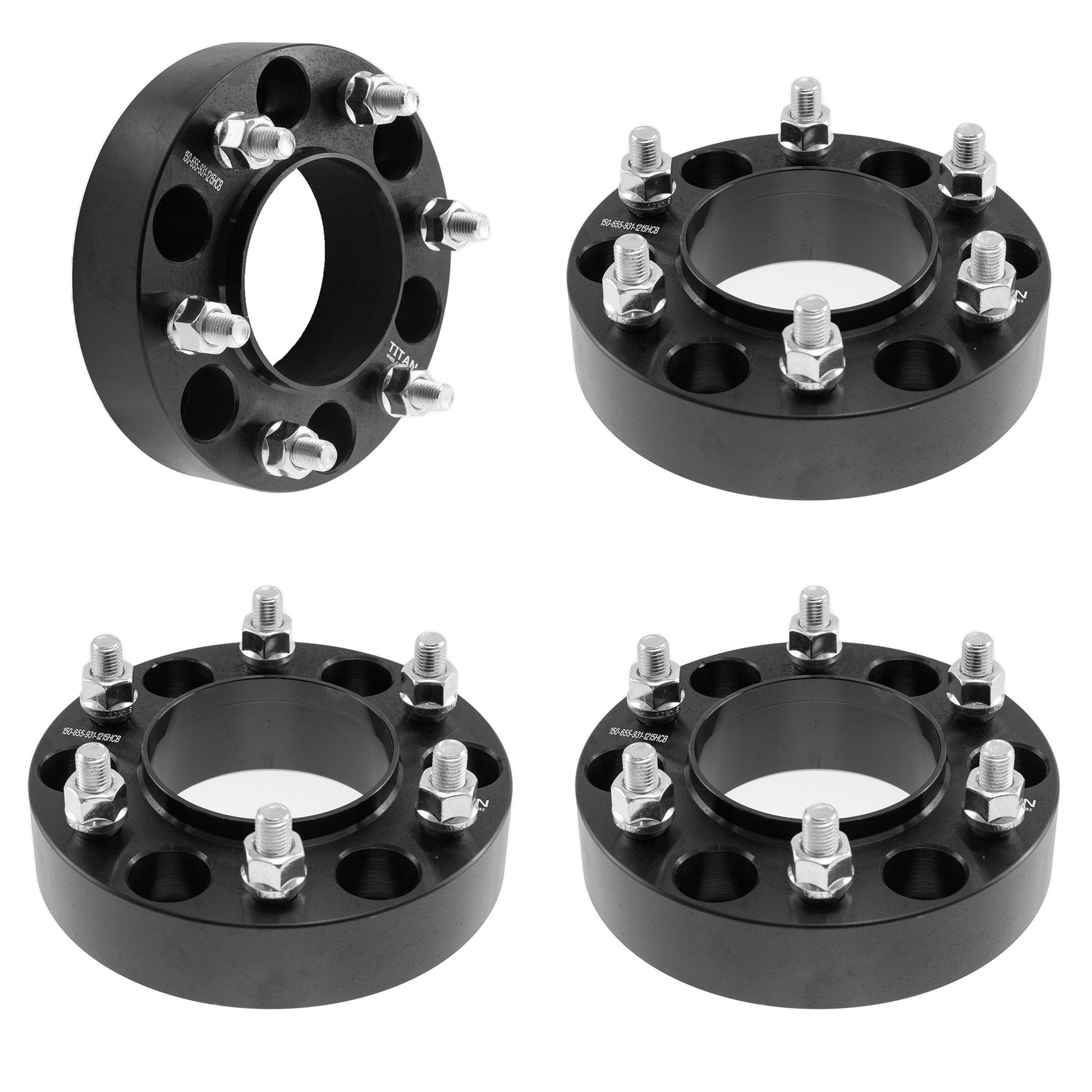

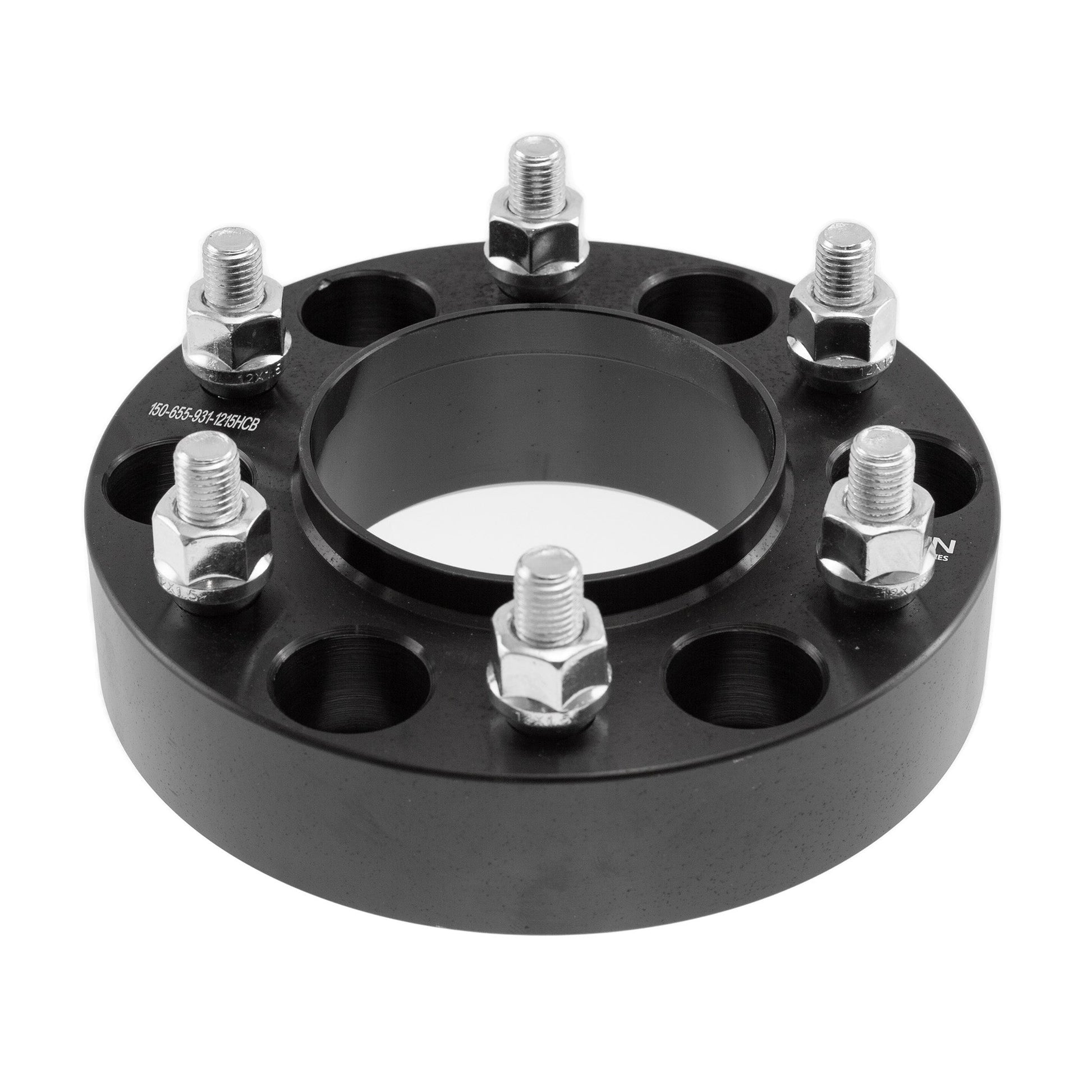

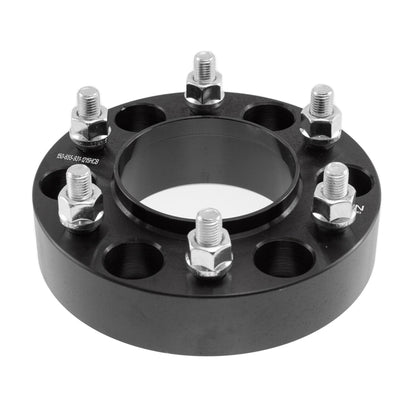

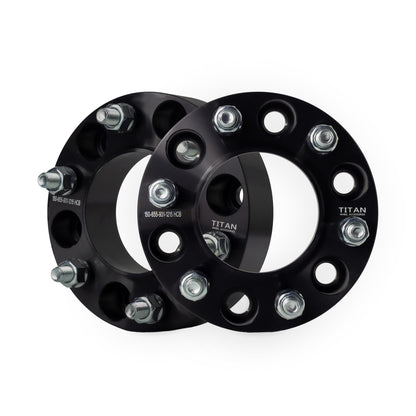

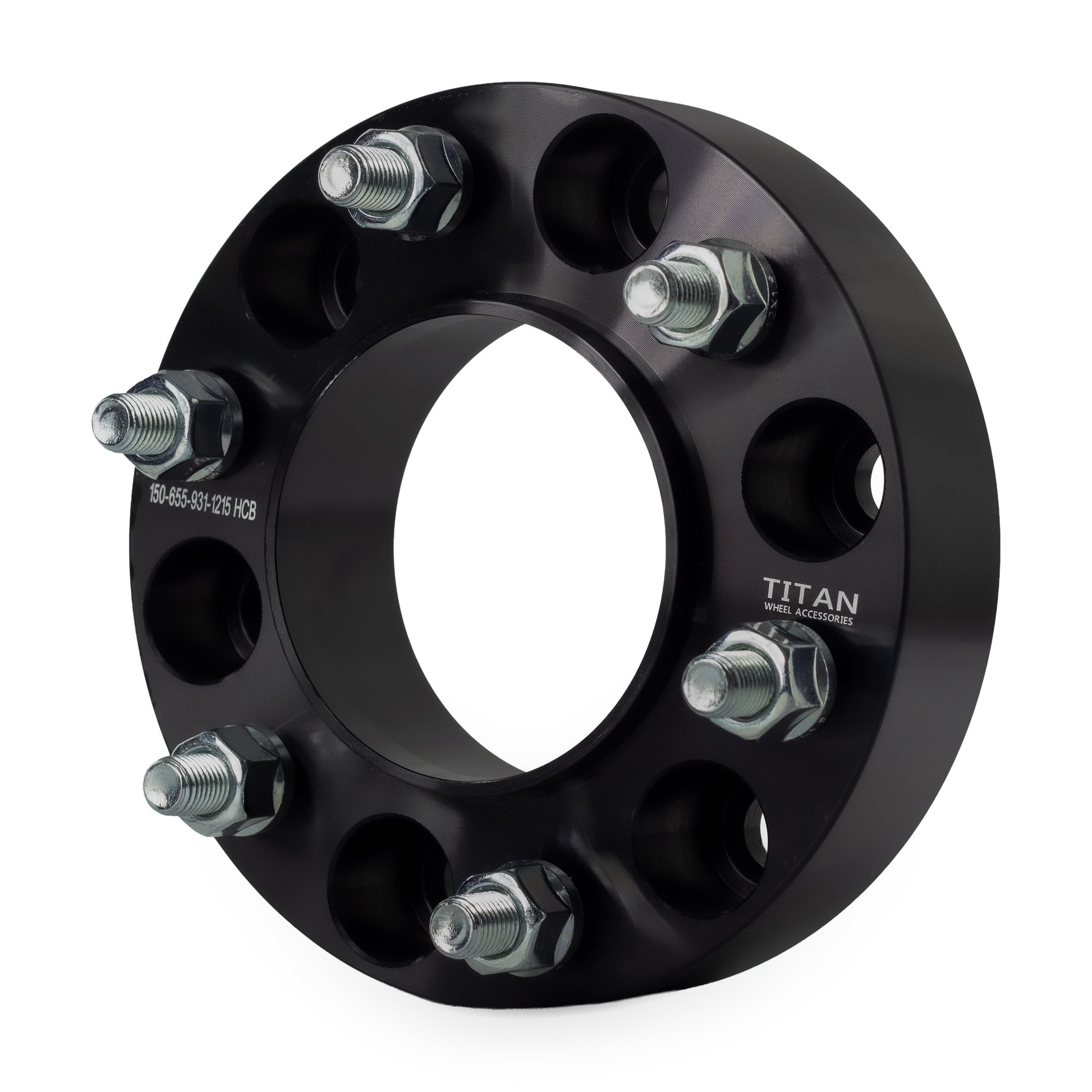

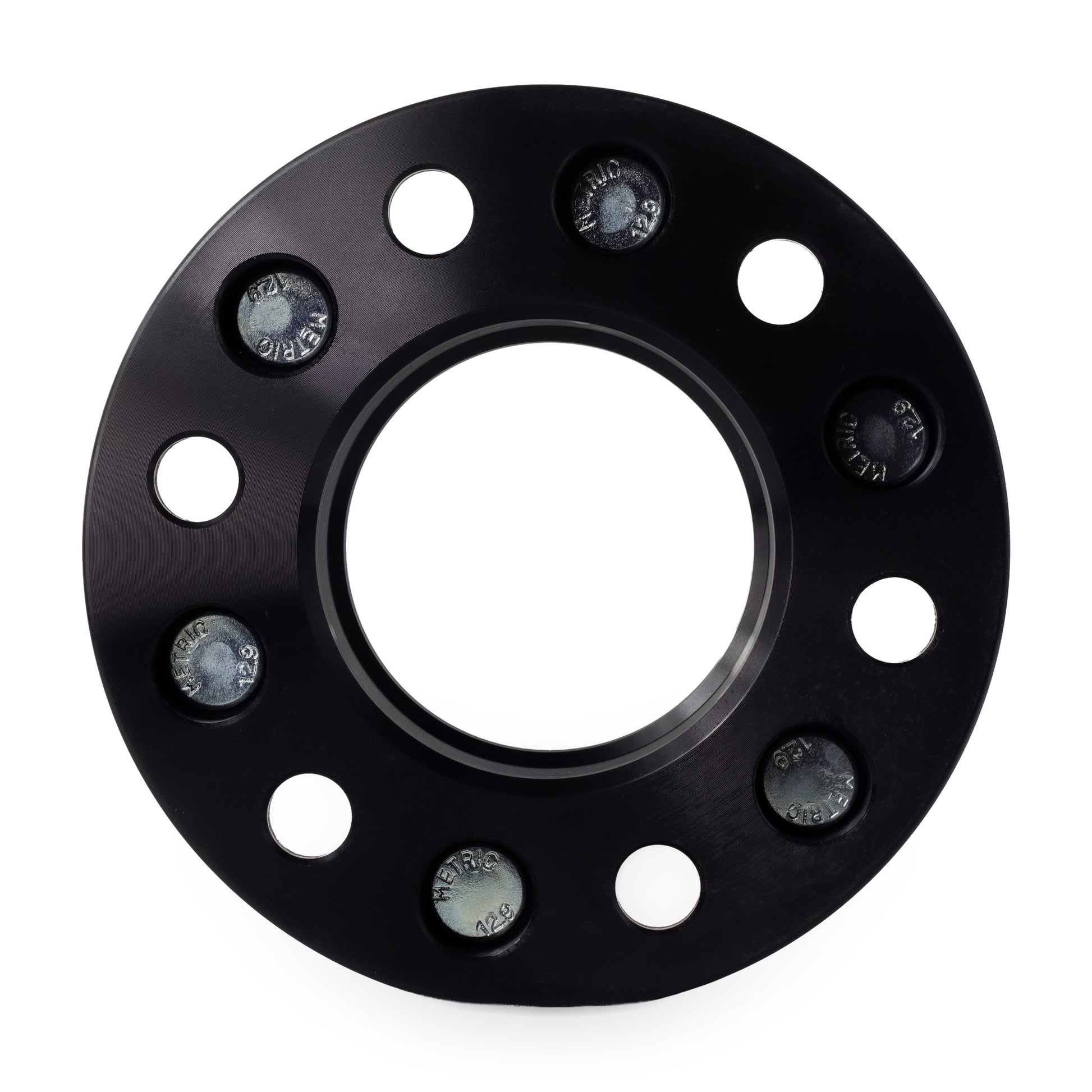

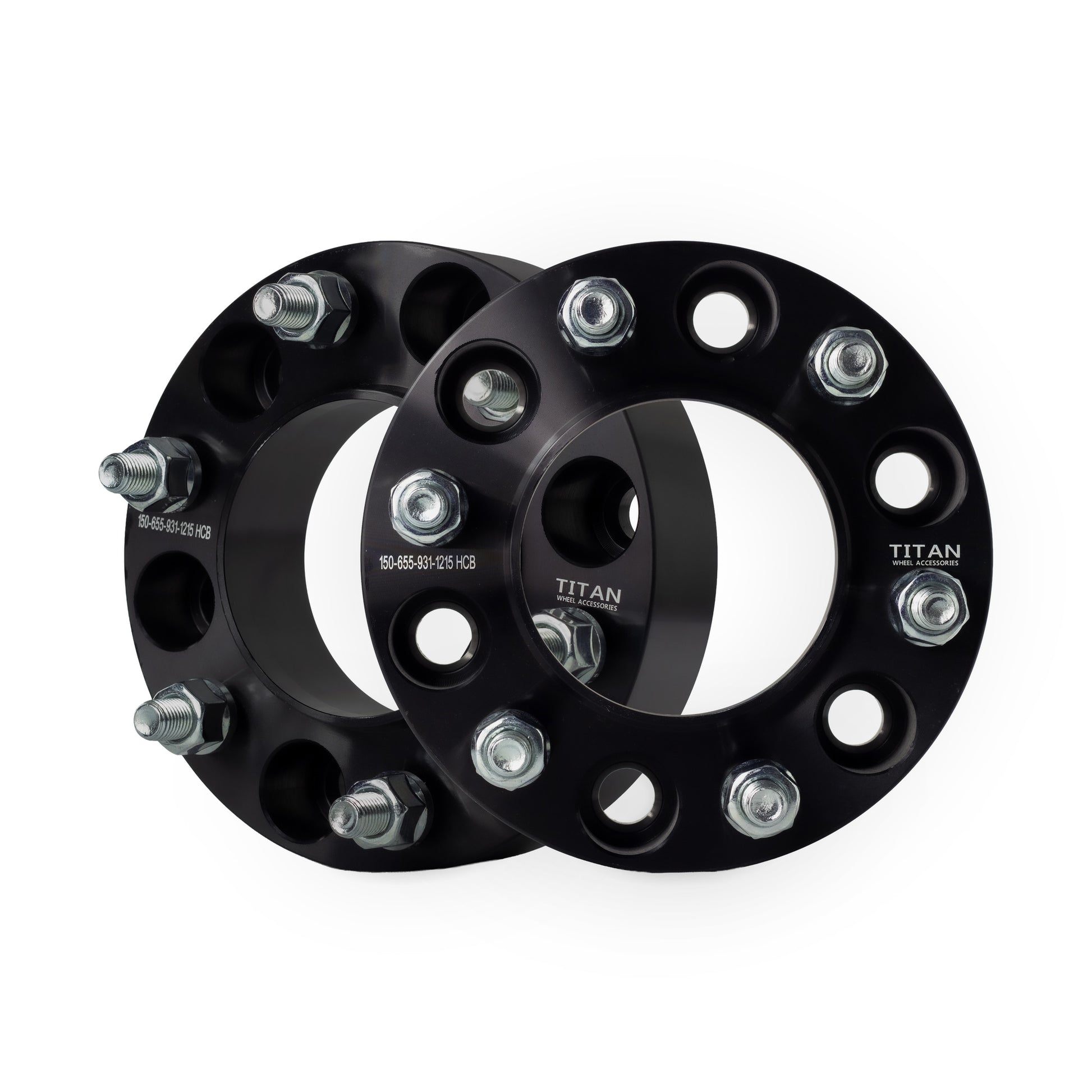

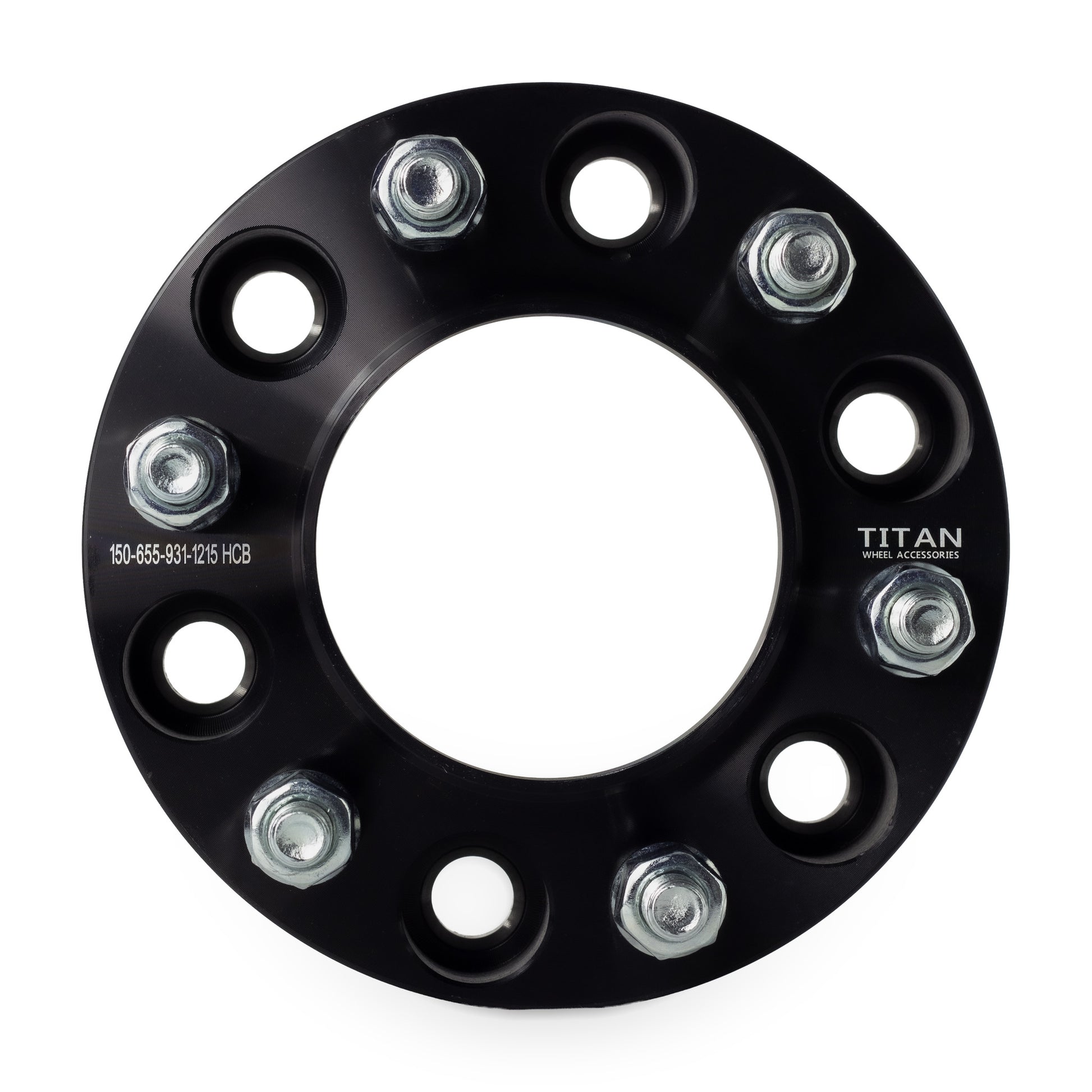

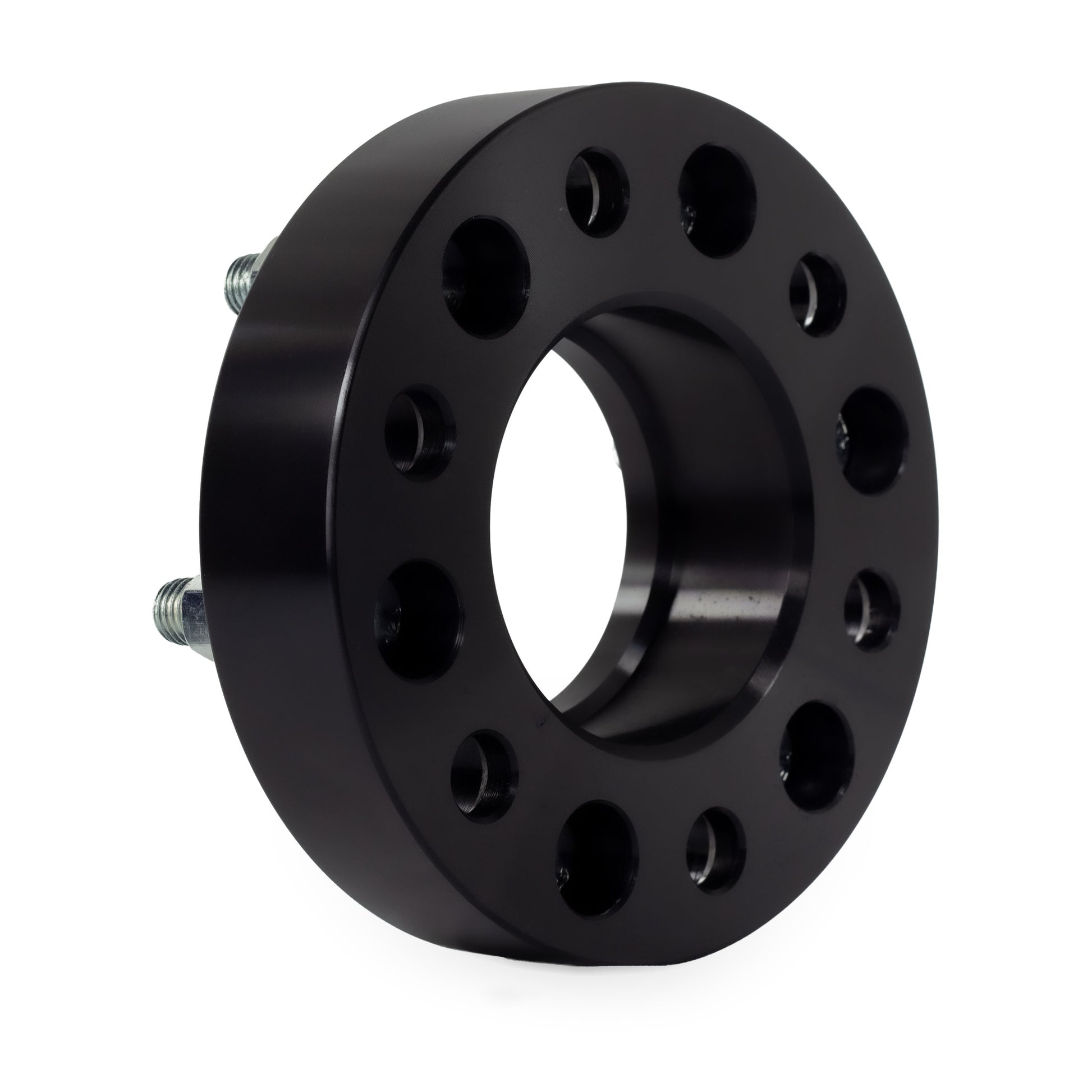

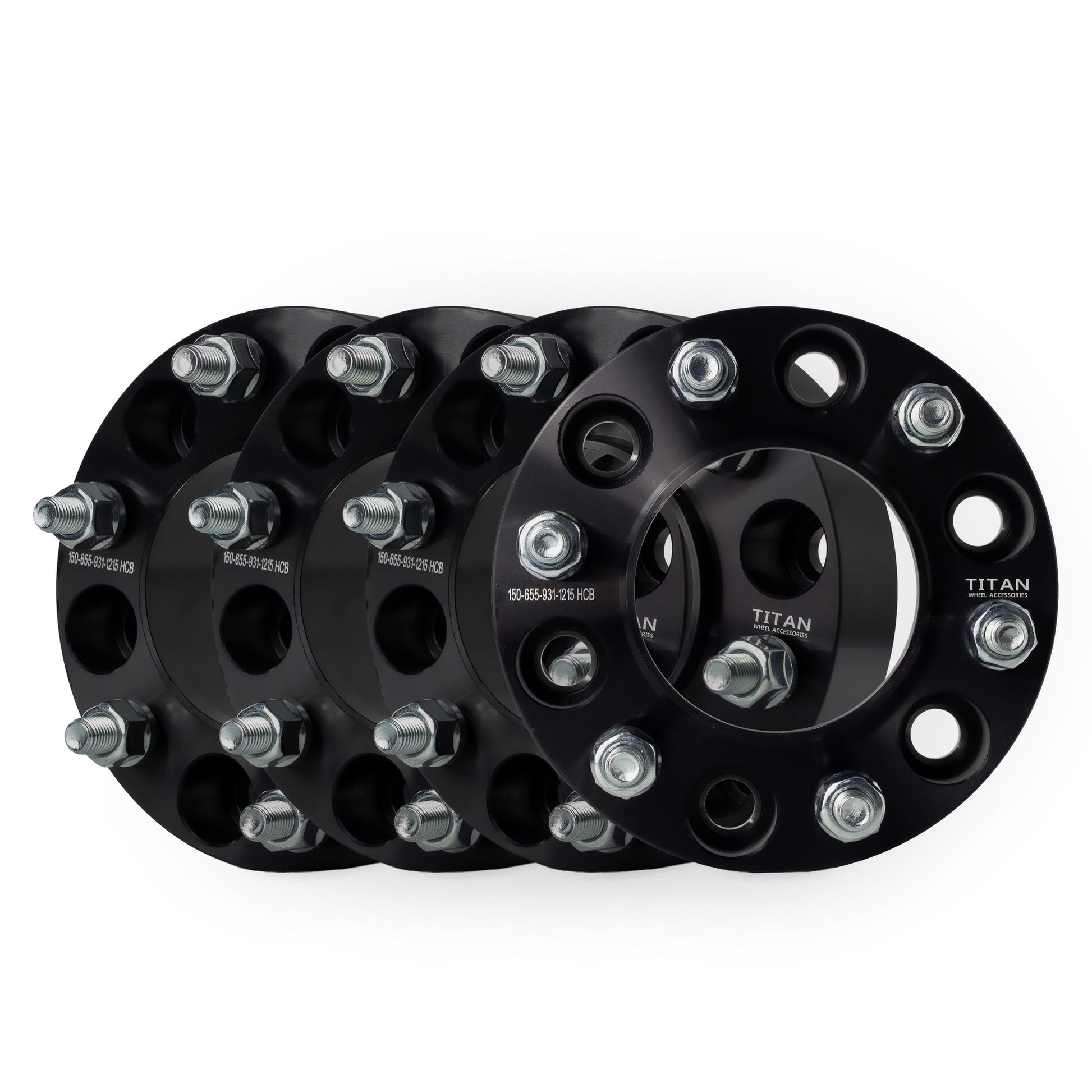

These Titan Wheel Accessories 1.5 Inch hubcentric wheel spacers are designed with a 6x5.5 (6x139.7) bolt pattern, 93.1mm hub bore and 12x1.5 thread pitch for 2021+ Ford Bronco and 2019+ Ranger. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These spacers will improve the stance of your vehicle, providing a more aggressive look while also adding additional clearance for aftermarket brake and suspension parts. They also allow for larger wheel and tire combinations to be installed, giving you more options for customization. These spacers are easy to install and come with all necessary hardware.
Specifications
Specifications
- Vehicle Bolt Pattern: 6x5.5 (6x139.7)
- Wheel Bolt Pattern: 6x5.5 (6x139.7)
- Hub Bore: 93.1
- Thread Pitch: 12x1.5

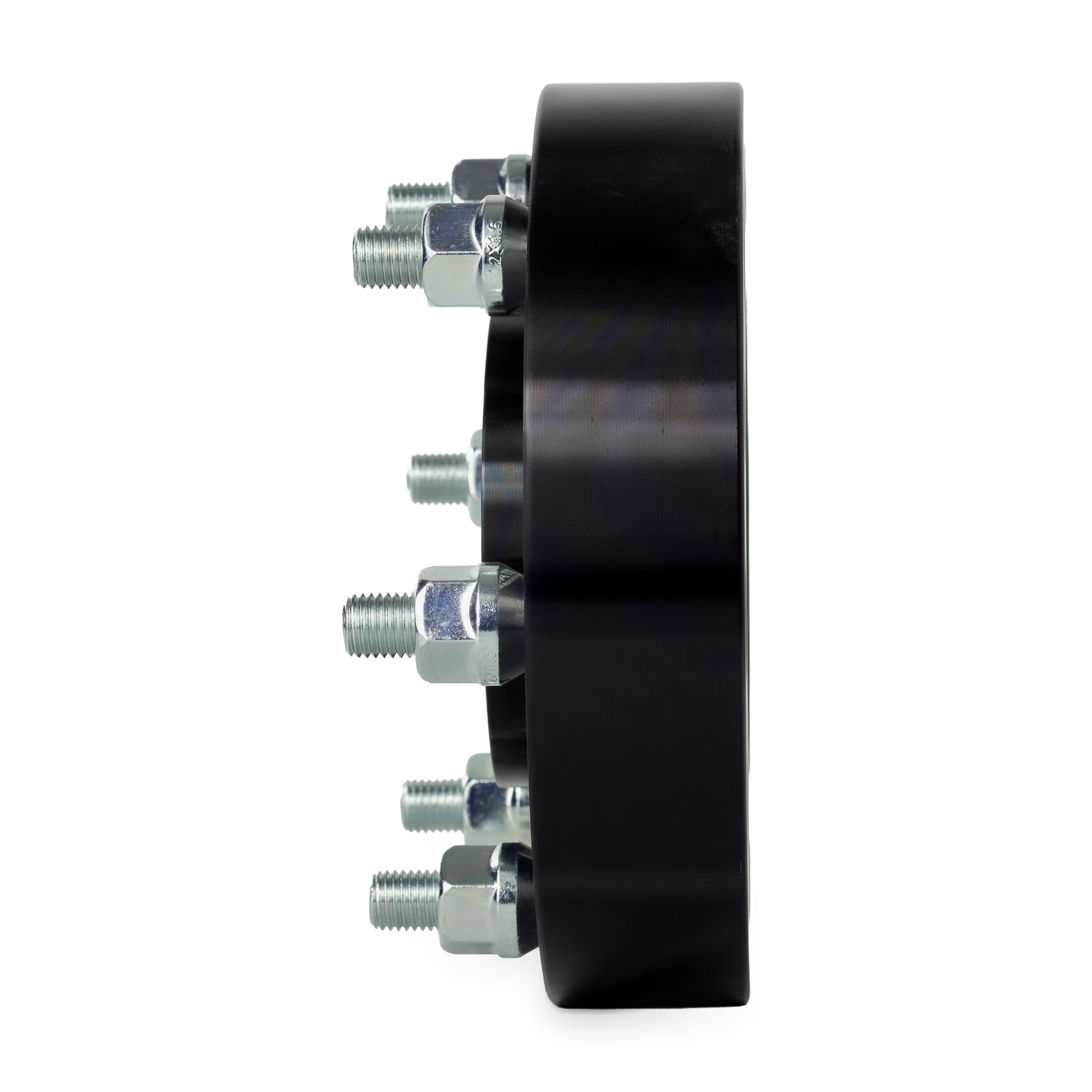

- Thickness: Each spacer measures 1.5 Inch (38mm) thick
Materials
Materials
- Our spacers are machined from billet T6 6061 aluminum
- Black finish
Vehicle Fitment
Vehicle Fitment
These spacers will bolt up to the following vehicles:
2021-2022 Ford Bronco (Does not fit Bronco Sport)
2019-2022 Ford Ranger
Vehicle fitment information applies only to the vehicle's hub.
Installation Information
- Please ensure that the your vehicle has the same studs as the adapters, otherwise additional lug nuts WILL BE required
- Make sure that all lug nuts get a full 6-8 turns when tightening. Failure to do so, can result in damage to your vehicle.
- Installation needs to be performed by a trained professional
It's Possible that your OEM Studs are longer than the spacer is thick, if so you have a few options:
- Your lugs studs will need to be shortened by grinding them down or you can replace your OEM lug studs with shorter studs.
- If your wheels have sufficient sized and placed pockets machined in the backside, between the mounting holes, then you should not need to modify your factory wheel studs.
- Always ensure that there is no gap between the spacer and the back of the wheels.
-
Same Day Shipping
Orders placed before 3:00 PM EST will be shipped out same day. Weekend and Holiday orders will be shipped promptly on the following business day.
-
Questions?
Feel free to reach out to us with any questions. Our staff is highly trained and happy to help you find the correct product for your vehicle. You can email us at info@titanwheelaccessories.com
I was hesitant to not buy a mainstream spacers like a Bora, Borne or Bonoss. You hear a lot of opinions of how those products are better. I'm not hear to argue that but to say that the Titan Spacers are top notch! I had a high performance shop install the spacers and they said they were as good if not better that any spacer they've seen and let me add, they focus on suspensions. The fit, finish and materials are perfect. My last comment is about the customer service you get from Titan. Amazing. Many of these other brands you deal with distributors. It makes a difference when you can deal directly with the source. I'm going to get the spacers re-torqued this week as recommended and I don't anticipate any issues. But if there were, I'm sure Titan would have my back!

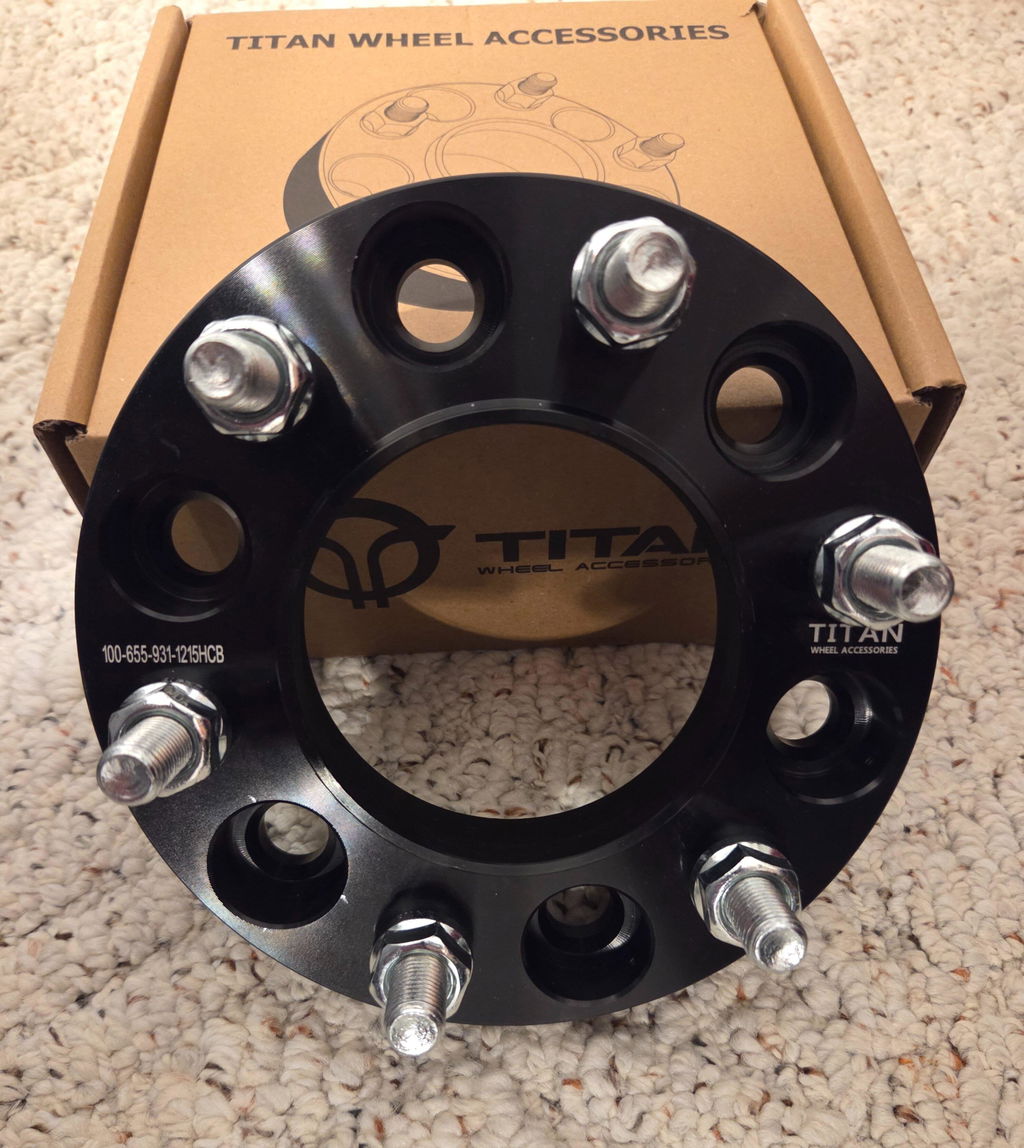

Titan shipped these out incredibly quick. When I received them, they were packaged well and no damage. The fit and finish was very exacting and as expected. The installation on my Bronco was a breeze. I drove a 100 miles, and pulled all the wheels and retorqued the spacers to the hubs, no movement on any lugs. Have driven 500 miles with them on now and couldn't be happier, the aggressive stance my Bronco has is exactly what I was looking for. Thanks Titan Wheel Accessories!
These 1” wheel spacers are very high quality and they worked perfectly to space out the 35” tires / 17” wheels on my new Bronco Badlands.
1" (25mm) Titan Wheel Spacers for Ford Bronco 2021-2022 Ranger 2019+ | 6x5.5 (6x139.7) | 93.1 Hubcentric | 12x1.5 Studs |
well made. nice fit and tight tolerances.
Let customers speak for us
from 1700 reviewsThese are good quality. Expensive, but they will work good for my application.
- They do have "some" countersink on the holes
- They do have paint on the unit, so it will degrade slower
- They fit well, but I kind of wish they fit a but tighter to the lugs
I need these because I bought some 31" for the Jeep (2.5" EMU lift, with JKS Quicker disconnects), and because the new BFG AT KO2 tires were a bit wider, they grabbed the anti-sway bar / JKS combo, and ripped it downwards, thus trashing the bushings on the JKS, and creating a problem where my anti-sway bar was at a bad angle.
The solution, space out the wheels a short distance. I started with washers (bought from home depot), which were 1/8" inch thick, and used 20 of them on the front wheel to test out 2 things really:
a) Would the tires collide with the anti-sway bar / JKS any longer?
b) Would there be enough threads left on the stock lugs (attached to hub) on the wheels to allow the lug nuts to go on enough revolutions to secure the wheel to the hub any longer.
The answer to both, was Yes. It spaced out the BFG AT KO2's enough, where even with a large amount of articulation (I tested this), that it would no longer grab the bars and damage them.
Conclusion 1: The lugs on the stock rear, Jeep Rubicon Model 44 Dana axle from factory on FRONT, are not the same legnth as the REAR. Both have disc brakes on them. The Rear Lug bolts are SHORTER. However, it is important to know the following, if you are not going to go out and buy new lug bolts for your hubs on Front and Rear:
After installing the new 1/4" Titan wheel spacers on both the front and rear:
1) The Front wheel lug nuts will go a full 8.5 revolutions, on to the lugs (hub).
2) The Rear wheel lug nuts will go on a full 5.5 revolutions, on to the lugs.
So, the fronts are fine. The rears, are iffy. I checked again after a week and all lugs are secure and tight. I put a calendar reminder again to check them in 1 month and so forth. Having a wheel fall off is no joke. The vehicle kind of needs the wheels to be on.
NOTE: Each of the 4 hubs (from factory), has two (2) threaded, locking metal washers attached to each hub, which will hold the Rotor to the Hub. Know this!
These little locking washers will add additional space to the end of the Rotor, and prevent you from completely attaching these Titan Wheel spacers to the surface of the rotor. In other words, I had to remove these 2 little guys from all 4 wheels.
The purpose is obvious, why the factory did this. However, I wanted to remove these so that I could get the maximum amount of Lug Nut threads to engage with each of the lug nuts on the Hub. Know this. It is your call.
5.5 revolutions on the Rear hubs has me a bit worried.
My advice is to never go more than 1/4" spacers on a stock setup (Jeep Wrangler). If you do, then take the Jeep to the shop, have them remove all of the factory Lug bolts from the Hubs, and replace them with longer ones.
That said, I like these spacers on the Jeep. And am keeping them on, unless I see evidence that the lug nuts are loosening, or the wheels are working themselves away from the Hub/Rotors .
NOTE: If you have a Jeep, and are worried (still ) about your tires colliding with other components (read: frame, sway bars, wheel wells, etc), then know that you have some BUMP STOPS, which are located on the inside of the Steering Knuckle, which have adjustable BOLTS on them, that can be shimmed outwards using WASHERS, so that when a full stop to stop turn to the left or right is performed, that it will stop the tire before it collides with those components. Know however that the trade off, is that you will lower your turning radius. I didn't want to lower my turning radius on the Jeep, so I went with these Titan Wheel spacers to solve my problem.
That is all.
Delivery was quick, high quality product. I had to “persuade” one of the wheels on to the spacer nicely but overall worked perfect and would use again.
50mm (2") Titan Wheel Spacers for Infiniti and Nissan Trucks | 6x5.5 (6x139.7) | 12x1.25 Studs |
I had lug centric spacers before this and had a wobble. Now its gone, smooth ride at all speeds, very satisfied.
Amazing product
Upon opening up the box and viewing the spacers, you could tell right away the spacers were very good quality. They felt strong, fit perfect, and driving with them feel super smooth. Will most definitely recommend and this is also my second set of spacers from Titian which I use for my vehicles. 10/10 recommend.
2" (50mm) Titan Wheel Spacers for Dodge Ram 1500 | 5x5.5 (5x139.7) | 77.8 Hubcentric |1/2x20 Studs |
They fit my car perfectly, absolutely love them
Great quality, good value. Perfect fit!! These wheel spacers for my 99 s10 blazer make the stance of the vehicle perfect and now looks like it should have from the factory
Great fitment and looks. Should have bought these ones the first go around
Awesome product works great!
A perfect fit. I used 1" spacers on my 2022 Honda Accord sport 2.0 to make my stock rims flush with wheel well. 1"makes a big difference. Loving the look ❤️
I bought the Titan 1.5” spacers for my 2014 Jeep Cherokee Trailhawk to balance out the Rough Country Leveling Kit I installed on my Jeep.
The 1.25” spacers I purchased for my 2018 Chrysler 300 make a huge difference. The look of my car looks more aggressive. People see a difference but can’t tell what it is. Looks stock. Glad I discovered Titan Wheel Accessories on YouTube.
They worked great , and the guy that helped me on the phone was nice and good help.
